Somebody specs a speed reducer off the horsepower and ratio alone, orders it, and finds out at install that the output shaft points the wrong direction entirely. That's not a defect. That's a mounting configuration mismatch, and it's one of the more common reasons a reducer sits in the warehouse for a week while a new one ships.
Right angle reducer vs shaft mounted reducer isn't a performance question first. It's a geometry question. Get the mounting configuration wrong and horsepower rating doesn't matter, because the thing won't fit the drive the way you need it to.
Why Mounting Configuration Comes Before Ratio Selection
A right-angle reducer takes input at 90 degrees to the output shaft. That's the whole point of the design. It fits applications where the motor has to sit perpendicular to the driven shaft, usually because of space constraints or because the layout calls for a direction change in the power path.

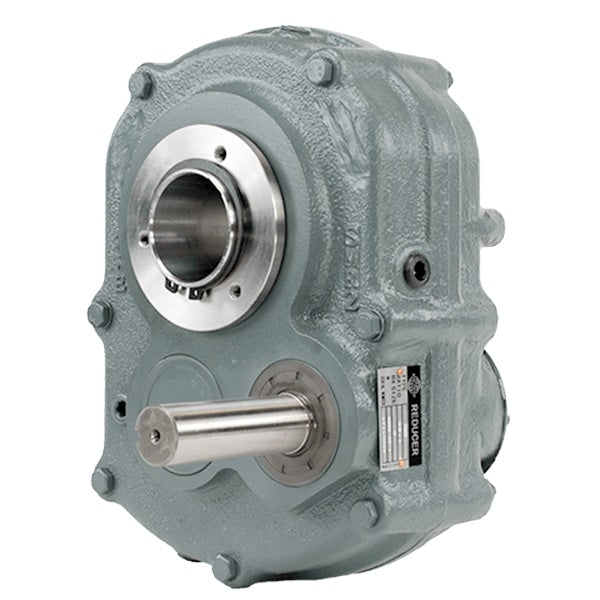

A shaft-mounted reducer skips the separate output shaft entirely. It mounts directly onto the driven shaft using a hollow bore, with a torque arm holding it in place against rotation. No coupling, no separate bearing support on the output side. That design saves mounting footprint and eliminates one alignment point most drives don't need to worry about.
Here's the part that catches people off guard: you can have the correct horsepower, the correct ratio, and the wrong configuration, and the reducer still won't work for the application. A right-angle unit bolted where a shaft-mounted design was needed doesn't just look wrong. It requires a separate output shaft, coupling, and bearing support structure that wasn't planned for, and that's a redesign, not a swap.
Where Each Configuration Actually Fits
The decision comes down to how the driven shaft is arranged and how much mounting space you actually have.
Right-angle reducers work best when:
- The motor needs to sit perpendicular to the driven shaft due to space constraints
- You need a direction change in the power path, not just a speed change
- The application already uses a foot-mounted or flange-mounted reducer footprint
Shaft-mounted reducers work best when:
- The reducer can mount directly on the driven shaft with no separate output bearing needed
- Minimizing footprint and alignment points matters more than mounting flexibility
- The application is a straightforward inline speed reduction, like a conveyor drive or bulk material handling shaft
That direct-mount principle shows up elsewhere too. The same logic that decides QD vs. taper-lock bushing selection on a sheave or sprocket applies here: how the component mounts to the shaft matters as much as its rated capacity.
Dodge Tigear-2 reducers cover the right-angle worm gear side of this decision with ratios from 5:1 up to 60:1 in a single reduction. For the shaft-mounted side, Dodge shaft-mounted reducers handle the direct-mount torque arm design that most conveyor and bulk handling applications actually call for.
The Maintenance Difference Nobody Mentions Until It's Too Late
Configuration doesn't just affect the initial fit. It changes what a PM inspection looks like for the life of the drive.
A shaft-mounted reducer's torque arm needs periodic inspection for wear at the pivot bushing, since that's the only thing keeping the unit from rotating with the shaft. Skip that check and a worn torque arm bushing lets the reducer housing shift under load, which shows up as accelerated seal wear and eventual output bearing failure.
A right-angle reducer's separate output shaft coupling needs its own alignment check on the same PM schedule as the motor coupling. That's an extra alignment point a shaft-mounted design simply doesn't have. It's not a reason to avoid right-angle reducers. It's a reason to actually put it on the checklist instead of assuming the reducer takes care of itself.
If you're chasing a repeat bearing or seal failure on a reducer-driven shaft and orientation checks out fine, the same misalignment-driven wear pattern shows up on mounted bearings elsewhere on the same drive train, and it's worth ruling that in or out at the same time.
How to Confirm the Right Configuration Before You Order
Run through this before placing the order, not after the reducer arrives.
- Check the physical orientation the motor needs relative to the driven shaft. Perpendicular points toward right-angle. Inline with the shaft points toward shaft-mounted.
- Measure available mounting footprint, since shaft-mounted designs need less overall space but require a driven shaft that can carry the reducer's weight directly.
- Confirm whether the application needs a separate output shaft and bearing support, or whether direct mounting on the driven shaft is acceptable.
- Match ratio and horsepower after configuration is settled, not before. Configuration eliminates half your options before ratio even matters.
- Check the torque arm mounting clearance on shaft-mounted designs, since tight equipment layouts sometimes don't leave room for the arm to swing during installation.
Frequently Asked Questions
What is the difference between a right angle reducer and a shaft mounted reducer?
A right angle reducer takes input at 90 degrees to the output shaft and connects to the driven shaft through a separate coupling, while a shaft mounted reducer mounts directly on the driven shaft using a hollow bore and torque arm with no separate output shaft or coupling required.
When should I use a shaft mounted reducer instead of a right angle reducer?
Use a shaft mounted reducer when the driven shaft can carry the reducer directly and minimizing mounting footprint and alignment points matters, which is common on conveyor and bulk material handling drives. Use a right angle reducer when the motor needs to sit perpendicular to the driven shaft due to space constraints or layout requirements.
Does a shaft mounted reducer need less maintenance than a right angle reducer?
It needs different maintenance, not necessarily less. Shaft mounted reducers require periodic inspection of the torque arm pivot bushing for wear, while right angle reducers need alignment checks on the separate output shaft coupling as part of the regular PM schedule.
Can I convert a right angle reducer installation to shaft mounted?
Not as a direct swap. Converting requires reworking the drive to eliminate the separate output shaft and coupling and confirming the driven shaft can support the reducer's weight and torque directly, which usually means redesigning the mounting rather than simply swapping parts.
What ratio range do Dodge Tigear-2 right angle reducers cover?
Dodge Tigear-2 worm gear reducers cover ratios from 5:1 up to 60:1 in a single reduction stage, which handles most general industrial speed reduction needs without requiring a double-reduction unit.
