Ask five maintenance techs what mounted bearing to order and you'll get five different answers, and most of them will be some version of "whatever we used last time." That works fine until the application changes and the bearing you've always ordered isn't actually rated for the load, speed, or misalignment it's now seeing.
Dodge mounted bearings cover a wide range of housing styles and bearing types, and picking the right combination comes down to a handful of variables: mounting orientation, load direction, shaft misalignment, and operating speed. Get those four right and the rest of the decision is mostly bore size and bolt pattern.
What "Mounted Bearing" Actually Means
A mounted bearing is a bearing pre-installed inside a housing that bolts directly to your equipment frame, as opposed to a loose bearing that gets pressed into a custom-machined bore. That's the whole appeal: you're not machining anything. You bolt the housing down, align the shaft, and you're running.

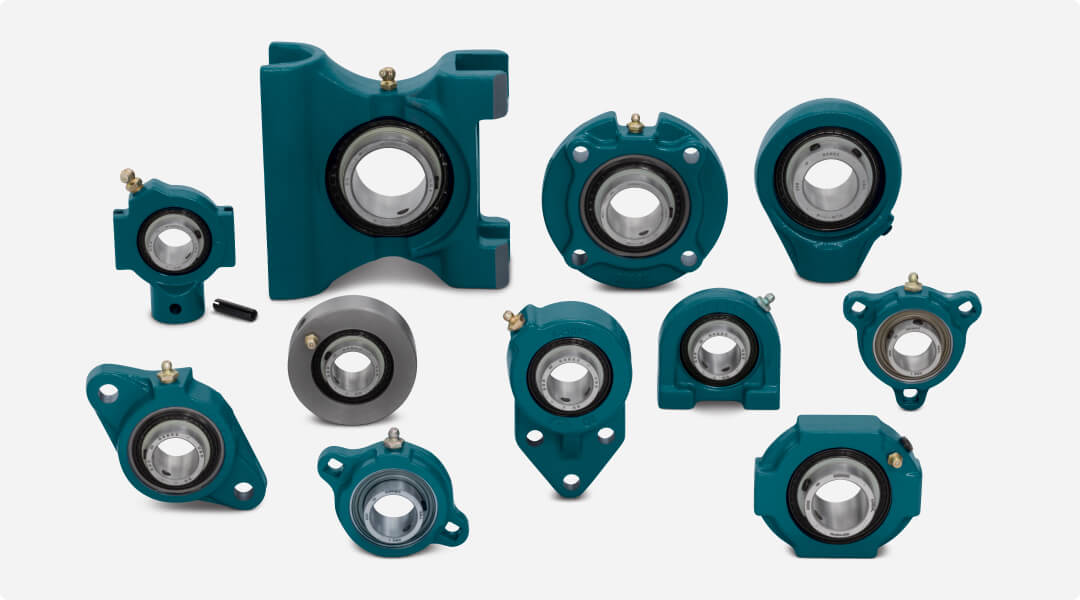

The housing style determines how the bearing is oriented relative to your mounting surface. A pillow block housing mounts flat, with the shaft running parallel to a horizontal base, and it's the most common style on conveyor and general shaft-drive applications. A flange block housing mounts to a vertical or angled face, with the shaft passing straight through, which fits applications where the shaft comes through a wall or frame member rather than sitting on top of one.
Beyond housing style, the bearing element inside the housing is where the real selection decision happens.
Matching Bearing Type to the Actual Load
Mounted ball bearings are the default for a reason. They handle moderate radial load well, run at higher speeds than roller designs, and cost less than the alternatives. For straightforward conveyor drives, fans, and pump applications without significant misalignment or thrust load, a standard mounted ball bearing is usually the right call and there's no reason to overspec it.
Where ball bearings run into trouble is combined loading and misalignment. That's where mounted spherical roller bearings earn their higher price tag. The spherical roller design tolerates several degrees of shaft misalignment without transmitting that stress into the bearing race, and it handles heavier combined radial and thrust loads than a standard ball bearing. Longer shaft runs, less rigid frames, and heavier-duty applications are where this upgrade pays for itself.
For applications carrying more thrust load in one consistent direction, like a gearbox output shaft, mounted tapered roller bearings handle that thrust profile more efficiently than a spherical roller design built for load in both directions.
And for slow-speed, high-heat, or heavy continuous-duty applications where a rolling element bearing wears fast no matter which type you pick, sleeve oil bearings are worth considering. They run on a hydrodynamic oil film instead of rolling elements. No relubrication schedule to track, but oil condition and level become the thing your PM checklist needs to cover instead.
What Actually Causes Premature Mounted Bearing Failure
Most mounted bearing failures aren't a bad bearing. They're a bearing running in conditions it wasn't specified for.
The most common causes we see: housing orientation mismatched to load direction, shaft misalignment beyond what the bearing type tolerates, and under-lubrication or over-lubrication relative to the duty cycle. Any one of these can cut a bearing's service life by half or more, and all three look identical from the outside until the bearing is pulled and the wear pattern tells the actual story.
If you're chasing a repeat bearing failure and orientation and load look correct, misalignment from an undersized or mismatched coupling is worth ruling out next. That failure pattern and the fix are covered in our breakdown on jaw coupling vs. grid coupling selection. And if the failure keeps showing up on a chain-driven shaft specifically, chain drive sizing covers a closely related root cause worth checking first.
How to Order the Right Mounted Bearing
Before placing an order, confirm:
- Shaft diameter and bore size, measured directly rather than assumed from the old part number if the nameplate or tag is worn.
- Mounting orientation, pillow block for a horizontal base, flange block for a vertical or angled face.
- Primary load type, radial-only favors a standard ball bearing, combined radial and thrust favors a spherical or tapered roller design.
- Expected misalignment, longer or less rigid shaft runs favor the self-aligning tolerance of a spherical roller bearing.
- Speed and duty cycle, high-speed and moderate load fit ball bearings well, while slow-speed and continuous heavy duty are where sleeve oil bearings hold up longer.
Our full mounted bearing collection and complete bearing catalog cover every style above, and our team can help match bore, housing, and bearing type to your application before you order.
Frequently Asked Questions
What is a Dodge mounted bearing?
A Dodge mounted bearing is a bearing pre-installed inside a housing that bolts directly to an equipment frame, eliminating the need to machine a custom bore. Common housing styles include pillow block for horizontal mounting and flange block for vertical or angled mounting.
What's the difference between a mounted ball bearing and a spherical roller bearing?
A mounted ball bearing handles moderate radial load at higher speeds and costs less, making it the right default for straightforward applications. A spherical roller bearing tolerates several degrees more shaft misalignment and handles heavier combined radial and thrust loads, which makes it the better choice for longer shaft runs or less rigid frames.
When should I use a sleeve oil bearing instead of a mounted ball bearing?
Sleeve oil bearings suit slow-speed, high-heat, or heavy continuous-duty applications where rolling element bearings wear out faster than expected. They run on a hydrodynamic oil film rather than rolling elements, which eliminates the relubrication interval but requires monitoring oil level and condition instead.
What causes most mounted bearing failures?
Most premature mounted bearing failures come from housing orientation mismatched to load direction, shaft misalignment beyond what the bearing type tolerates, or incorrect lubrication relative to the duty cycle, rather than a defective bearing. These causes look identical from the outside until the bearing is removed and the wear pattern is inspected.
How do I know what bore size mounted bearing I need?
Measure the shaft diameter directly with a caliper rather than relying on the old part number, especially if the equipment has been retrofitted or the nameplate is worn. Bore size must match the shaft diameter exactly, since an incorrect bore leads to slippage or an improper interference fit regardless of how well the bearing type matches the application.
Not sure which mounted bearing fits your equipment? Our team can help match housing style, bearing type, and bore size to your application before you order. Reach out here, no pitch, just useful.
