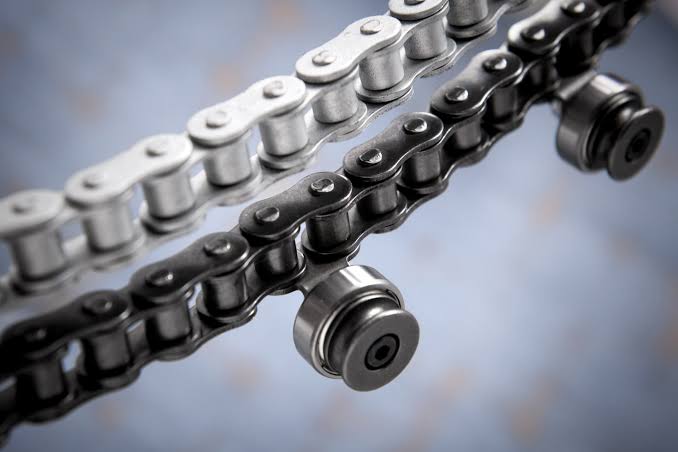

Most chain selection decisions start and end at horsepower rating. That's exactly how you end up replacing a #60 roller chain every eight months on a drive that should run three years without attention.
The HP rating on a chain spec sheet assumes ideal conditions: clean alignment, correct lubrication, moderate shock, and a recommended sprocket tooth count. Change any one of those variables without adjusting the selection and you've already compressed the expected service life. Here's what you actually need to check.
Why Horsepower Rating Alone Gets Chain Drives into Trouble
Every roller chain has a published horsepower rating at a given speed. Those numbers assume a service factor of 1.0: smooth load, no shock, consistent RPM, well-aligned shafts.
Most conveyors, mixers, and industrial drives don't run at 1.0. A conveyor with frequent starts and stops runs at 1.4. A mixer with heavy shock loading runs at 1.7 to 2.0. That's not a rounding error. A #60 chain rated at 7 HP at 100 RPM drops to an effective working capacity of about 3.5 HP once you apply a 2.0 service factor. If you sized it at rated HP, you've been running at double the real load capacity.
Sound familiar? That's why some chains fail at 30% of their published service life without any obvious installation mistake.
The service factor multipliers are published in ANSI/ASME B29.1, the standard most chain manufacturers use as the basis for their selection tables. If the service factor chart isn't part of your sizing process, the selection isn't complete.
How Sprocket Tooth Count Affects Chain Life More Than Load Does
Most maintenance teams focus on chain size and miss sprocket tooth count entirely. That's a real miss.
Fewer teeth on the driving sprocket create a more pronounced chordal action, the polygon effect where chain speed oscillates slightly with each link engagement. On a 13-tooth sprocket, that speed variation is about 4%. On a 21-tooth sprocket, it drops to 1.3%. The difference shows up as impact loading on every link engagement, every revolution, for the life of the drive. It accumulates quietly until you're pulling chain off a drive that looks fine on the outside.
The practical rule: 17 teeth is the minimum for a driving sprocket. 21 or more is where chain life improves noticeably. The cost difference between a 17-tooth and a 21-tooth Dodge sprocket is small. The life difference on a loaded drive usually isn't. Dodge sprockets are available in standard ANSI pitch sizes and bore configurations for most conveyor and industrial drive applications without custom machining.
If you're deciding between chain and V-belt for a similar drive, the V-belt slippage troubleshooting piece covers the conditions where chain makes more sense than a belt drive and where it doesn't. The comparison is more application-specific than most spec sheets suggest.
The Lubrication Mistake That Shortens Most Roller Chain
This is where most chain installations go wrong after initial selection. Inadequate lubrication is responsible for more roller chain failures than wrong chain size or wrong sprocket.
Roller chain has nine wear surfaces per link: two pins, two bushings, two rollers, and the sideplates. Every one needs lubricant film to prevent metal-to-metal contact. Without it, the pin-to-bushing interface wears first, and that shows up as elongation. Most chains should be retired at 3% elongation, about 3/8 inch of stretch over a 12-link section of standard #60 chain. If you're hitting that faster than expected, lubrication is almost always the root cause before you start questioning chain quality.
The method matters as much as the interval. Drip oilers and oil bath systems outperform manual oiling by a factor of three or more in high-cycle applications. If the drive is enclosed and running more than 8 hours per day, a drip oiler or splash bath is the right answer. Manual brushing every shift is adequate only for slow, low-load applications.
How to Size an Industrial Chain Drive Correctly
Here's a selection process that covers the variables that matter:
- Start with nameplate HP and RPM at the input (driving) shaft.
- Apply the service factor from ANSI B29.1 based on driven machine type and operating hours. Multiply rated HP by that factor. The result is your design horsepower.
- Select chain based on design horsepower and input shaft speed from the manufacturer's selection tables. Don't size from rated HP alone.
- Choose the driving sprocket with the highest tooth count your speed ratio and space constraints allow. Minimum 17 teeth, 21 or higher preferred.
- Set center distance to 30 to 50 chain pitches. Below 30 pitches reduces wrap angle and shortens chain life. Above 60 pitches adds sag and increases dynamic load on each link.
And a point worth checking: chain tension directly affects radial load on the shaft bearings at both ends of the drive. Overtensioned chain is one of the more common sources of early bearing failure on chain-driven shafts. If you've seen that pattern, the bearing failure root cause breakdown covers how to trace it back to the drive as the source.
Frequently Asked Questions
What is industrial chain drive selection?
Industrial chain drive selection is the process of matching roller chain to an application based on design horsepower, input shaft speed, sprocket tooth count, center distance, and lubrication method. Design horsepower is the rated HP multiplied by a service factor that accounts for shock loading, start frequency, and driven machine type. Selecting chain based on rated HP alone, without applying the service factor, is the most common reason chains fail before their rated service life.
How does service factor affect chain drive sizing?
Service factor is a multiplier applied to rated HP to account for real operating conditions. Values range from 1.0 for smooth, constant loads to 2.0 or higher for heavy shock applications. To get design horsepower, multiply rated HP by the appropriate service factor from ANSI/ASME B29.1, then size the chain from that number. A drive sized from rated HP at service factor 1.0, but running at actual service factor 1.7, is carrying nearly twice the load the chain was selected to handle.
What sprocket tooth count should I use for a roller chain drive?
17 teeth is the practical minimum for a driving sprocket. 21 teeth or more is the better target because it reduces chordal action, the speed oscillation that creates impact loading on each link engagement. At 13 teeth, chordal action is roughly three times higher than at 21 teeth at the same speed, which accelerates link wear proportionally. Use the highest tooth count your gear ratio and space constraints allow.
How often should industrial roller chain be lubricated?
High-speed or high-load drives running more than 8 hours per day should use a drip oiler or oil bath rather than manual periodic oiling. For manual applications, most roller chain needs lubrication every 8 hours of operation under full load. The reliable wear indicator is elongation: when a chain has stretched 3% (about 3/8 inch over 12 links of standard #60 chain), it's time to replace it regardless of how it looks visually.
What is the difference between number 40, 50, and 60 roller chain?
ANSI chain numbers correspond to pitch. Number 40 chain has a 1/2-inch pitch and handles roughly 1 to 2 HP at moderate speeds. Number 50 has a 5/8-inch pitch and handles 3 to 4 HP. Number 60 has a 3/4-inch pitch and handles 6 to 7 HP, all under ideal conditions before service factor correction. Select chain size from your design horsepower after applying the service factor, not from the nameplate HP rating.
