Somebody orders a sheave, grabs whatever bushing is on the shelf, and spends forty minutes fighting a bore that won't seat right. That's not a defective part. That's a QD bushing where a taper-lock was needed, or the other way around.
QD bushing vs taper lock bushing isn't a brand preference. The two systems use different removal mechanics, different torque capacities, and different installation clearances, and picking the wrong one shows up as stripped hardware, slipping hubs, or a maintenance window that runs long. Here's what actually separates them.
Why These Two Systems Aren't Interchangeable
Both QD (Quick-Detachable) and taper-lock bushings do the same basic job: they clamp a sheave, sprocket, or coupling hub onto a shaft using a tapered fit that locks under bolt tension. Where they differ is in how they come apart and how much axial space they need.
A taper-lock bushing has two flanges. Tightening the mounting bolts draws the bushing into the hub's tapered bore, compressing it onto the shaft. To remove it, you back the bolts out, then thread them into a separate set of removal holes to push the bushing back out. It's a compact design that needs less axial shaft length than QD, which matters on shafts with multiple components mounted close together.

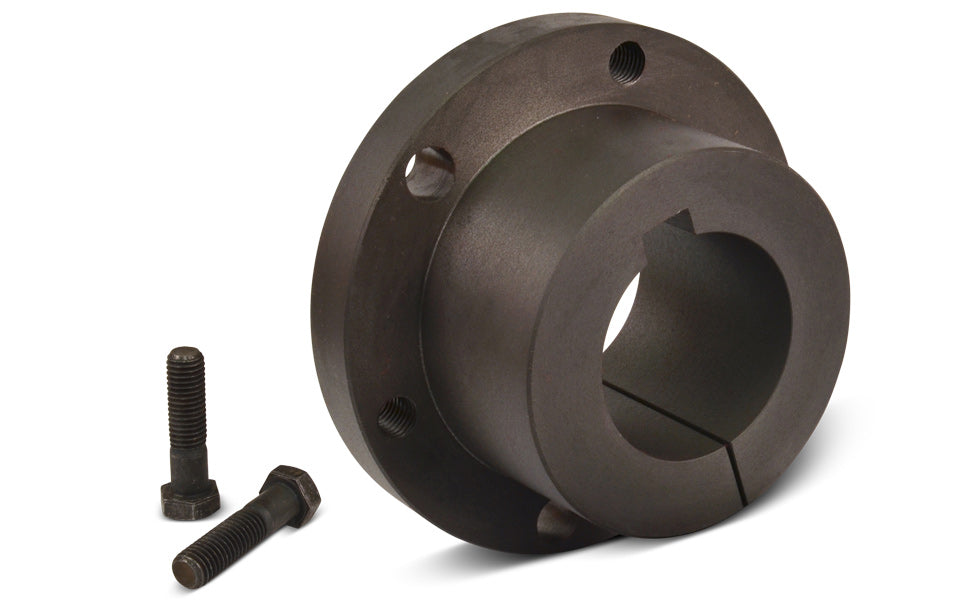

A QD bushing works differently. Removal bolts thread directly into tapped holes in the bushing flange itself, so you don't need to relocate hardware between clamping and removal. That makes QD faster to service, especially on equipment you're pulling apart regularly for maintenance. The tradeoff is that QD bushings need slightly more axial clearance than taper-lock in the same bore size.
Where Each One Actually Belongs
The practical difference comes down to how often the component gets removed and how tight the shaft real estate is.
Taper-lock works best when:
- Shaft space is tight and multiple components mount close together
- The sheave or sprocket is rarely removed once installed
- You need the lowest-cost bushing option for a straightforward drive
QD works best when:
- The component gets pulled for maintenance, inspection, or product changeover regularly
- Fast turnaround during a shutdown window matters more than the small cost premium
- You're standardizing across a plant where mixed removal procedures cause training issues
Torque capacity is comparable between the two systems at equivalent bore sizes, so that's rarely the deciding factor. What actually causes problems in the field is mismatching the bushing type to how the equipment gets serviced, then discovering during a rushed changeover that the removal holes aren't where the crew expects them.
If you're speccing a new sheave and drive, Dodge taper-lock bushings and Dodge QD bushings both come in standard bore ranges that match Dodge's sheave and sprocket lines directly, so bore compatibility isn't the issue. Removal frequency is.
The same sizing discipline applies here as it does on the sprocket side of a chain drive. Our breakdown on industrial chain drive selection covers how tooth count and bore fit interact on the sprocket end, which is worth a read if you're speccing a mixed chain and belt drive on the same shaft.
Installation Mistakes That Cause Premature Failure
Get the bushing type right and you can still cause a failure at install if you skip the basics.
- Clean the shaft and bore before assembly. Paint, rust, or old grease between the bushing and shaft prevents proper seating and lets the assembly slip under load.
- Torque bolts in the sequence specified for that bushing size, not all the way down on one bolt before moving to the next. Uneven tightening cocks the bushing in the bore.
- Check for a visible gap between the bushing flanges after final torque. Zero gap means the bushing is fully seated. A gap that won't close usually means the bore or shaft is out of tolerance.
- Re-torque after the first heat cycle on drives with meaningful thermal expansion, since initial run-in can relax clamp load slightly.
- Never use an impact wrench for final torque. Bushing bolts need controlled, incremental torque, not a single high-speed hit that can crack the flange.
A bushing that slips on the shaft after installation is almost always a torque or cleanliness problem, not a bushing defect. Before assuming a bad part, verify the shaft was clean and the bolt sequence was followed.
If you're chasing a shaft-mounted component that keeps loosening and the bushing checks out fine, the housing itself is worth a look next. Our guide on Dodge mounted bearings covers how housing orientation and load direction cause a similar loosening pattern on the bearing side of the same shaft.
Frequently Asked Questions
What is the difference between a QD bushing and a taper-lock bushing?
A taper-lock bushing uses the same bolt holes for both clamping and removal, requiring bolts to be relocated into separate removal holes to disassemble. A QD bushing has dedicated removal holes built into the flange, so no bolt relocation is needed, making it faster to service but requiring slightly more axial shaft clearance than taper-lock.
Which is better, QD or taper-lock bushings?
Neither is universally better. Taper-lock suits tight shaft spacing and components that rarely get removed, while QD suits equipment that's serviced or changed over frequently, since removal doesn't require relocating hardware. Torque capacity is comparable between the two at equivalent bore sizes.
Can I replace a taper-lock bushing with a QD bushing on the same sheave?
Only if the sheave hub is bored and keyed for the specific bushing system, since QD and taper-lock bushings are not physically interchangeable in the same hub. Check the sheave's bushing type designation before ordering a replacement bushing of a different system.
Why does my bushing keep slipping on the shaft?
Slipping after installation is almost always caused by contamination between the bushing and shaft, uneven bolt torque sequence, or a bore and shaft that are out of tolerance, not a defective bushing. Clean the shaft thoroughly and follow the specified torque sequence before assuming the part is bad.
How much axial shaft space does a QD bushing need compared to taper-lock?
QD bushings typically require slightly more axial length than taper-lock bushings in the same bore size, since the removal hole design adds material to the flange. On shafts with multiple closely spaced components, that difference can determine which bushing type actually fits.
