241083 - Dodge - TXT105T,TV TAPER BUSH REDUCER
Regular price
$1,820.66 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

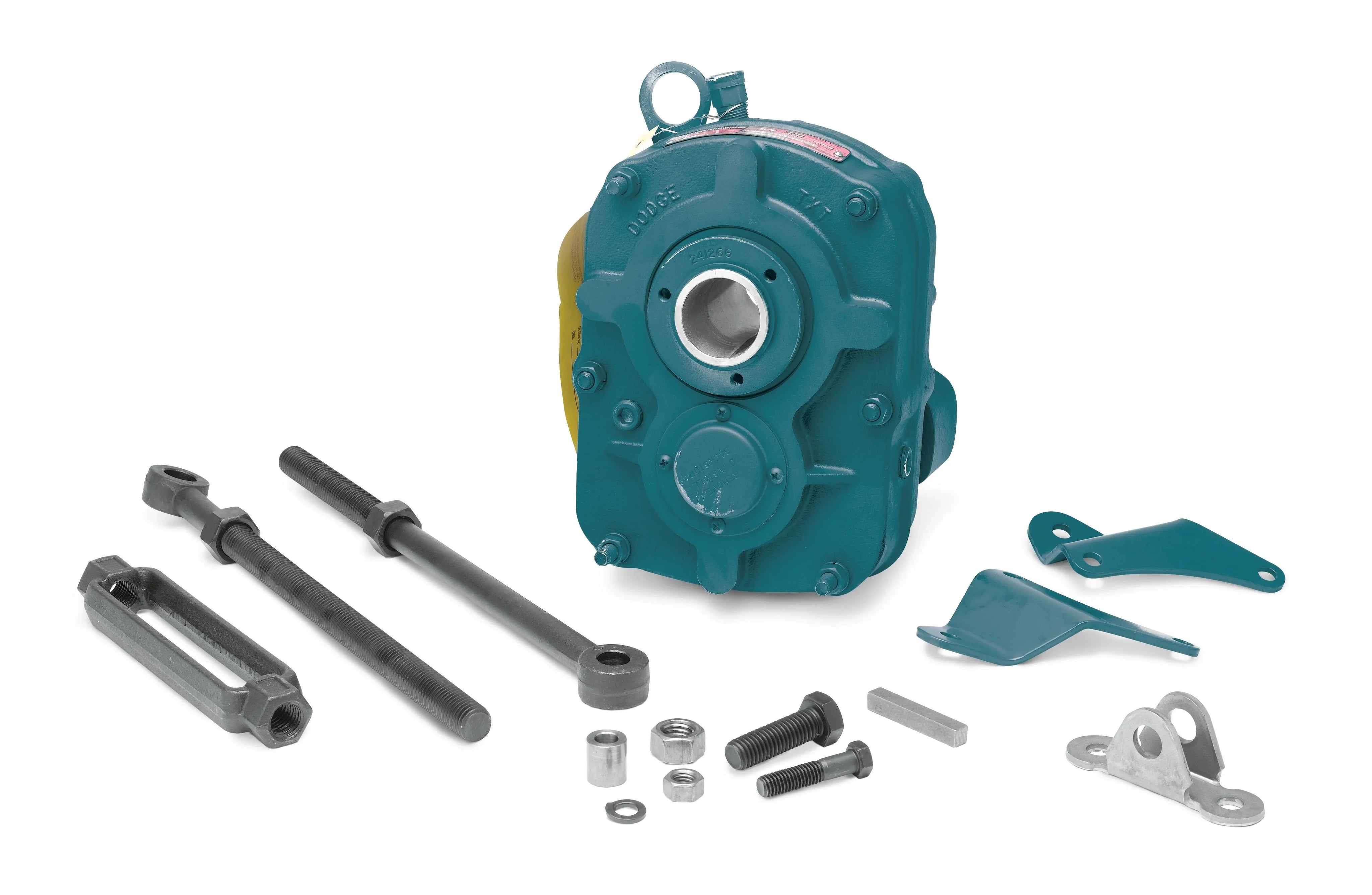

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The Dodge Torque-Arm TXT105T, identified by SKU 241083, is a legendary shaft-mounted speed reducer renowned for its proven design and durability. This AGMA Size 107 gearbox features a tapered-bushed hollow bore output, which provides a secure, easy-on/easy-off fit using the exclusive Dodge twin-tapered bushing system (sold separately). The reducer operates with a 5.62:1 actual ratio and contains high-quality, efficient helical gearing within its rugged cast iron housing. As a belt-driven unit, it provides flexibility in achieving final drive speed and is an industry-standard choice for demanding applications in the aggregate, mining, and material handling industries.
TXT105T,TV TAPER BUSH REDUCER
Technical Specifications
| AGMA Size | 107 |
| Bore Length Output | 7.0600 |
| Bore Length Output (Unit) | INCH |
| Case Size | 1 |
| Depth | 9.0600 |
| Depth (Unit) | INCH |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 1.1250 |
| Input Shaft Diameter (Unit) | INCH |
| Maximum Speed Input | 2248 |
| Maximum Speed Input (Unit) | RPM |
| Output Style | Hollow Bore |
| Reduction Type | Single Stage |
| Seal Type | Single-Lip Contact |
| Sheave Diameter Minimum | 4.0000 |
| Sheave Diameter Minimum (Unit) | INCH |
| Actual Ratio | 5.62 |
| Nominal Ratio | 5 |
