TIGEAR-2 REDUCER-SPECIAL BORE - Dodge
Regular price
$2,431.84 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

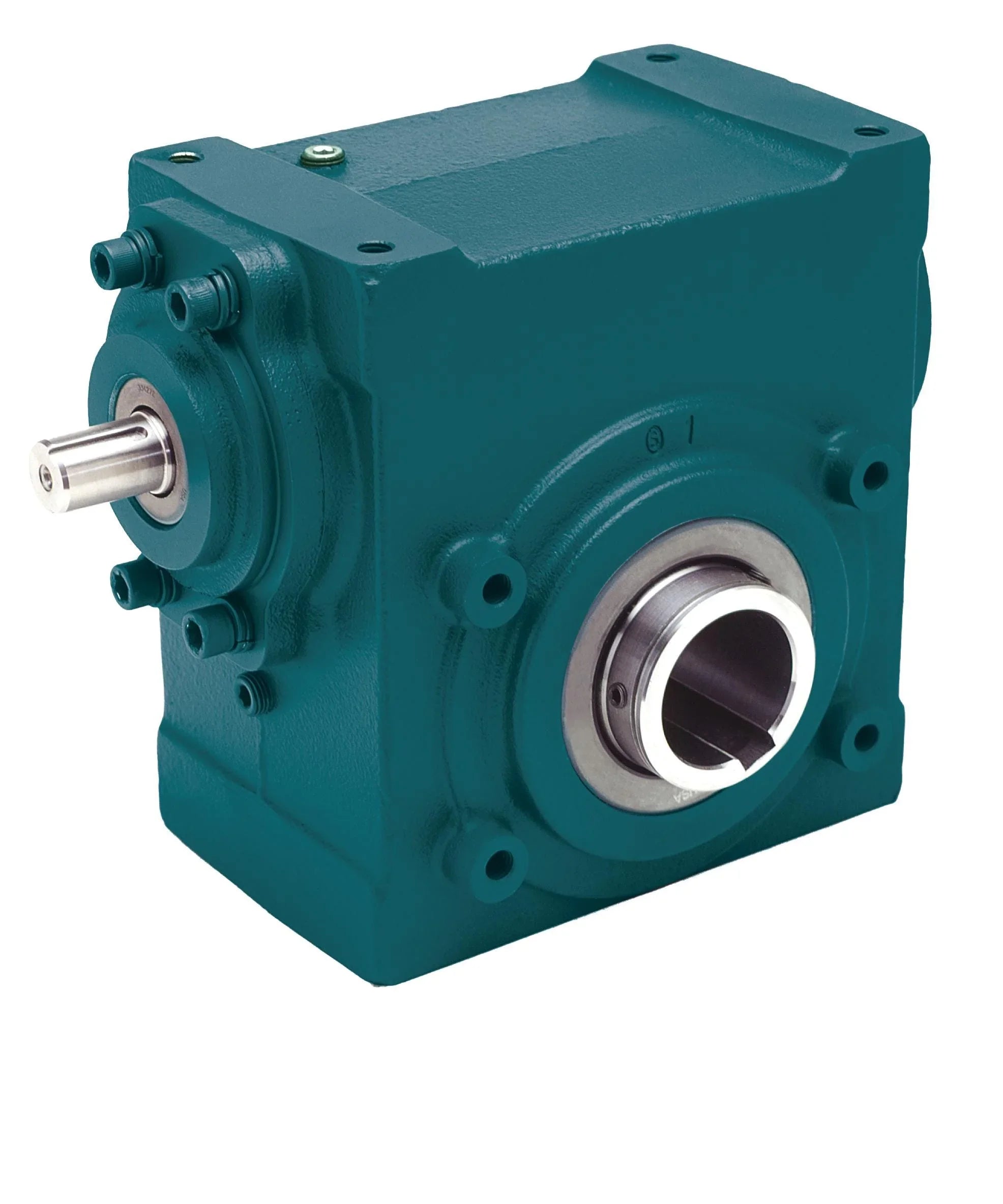

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 REDUCER-SPECIAL BORE
| Specifications | |
|---|---|
| Base to Output Center Height | 3.25 in |
| Bore Diameter (Output) | 1.6875 in |
| Bore Length | 7.76 in |
| Bushing Required | Optional |
| Case Size | 30 |
| Center Distance | 3 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 5.03 HP |
| Horsepower Rating Output | 4.31 HP |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 0.875 in |
| Input Shaft Length | 1.18 in |
| Lubrication | PAG, Standard Temperature |
| Mounting Bolt Pattern Length | 7 in |
| Mounting Bolt Pattern Width | 4 in |
| Output Orientation | Right-Angle |
| Output Style | Hollow |
| Overhung Load | 2300 lbf |
| Paint Type | Standard |
| Rated Torque Output | 3101 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 6.95 HP |
| Actual Ratio | 20 |
| Nominal Ratio | 20 |
