TG2 3-PC CPLG RED SIZE 26 - Dodge
Regular price
$1,590.61 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

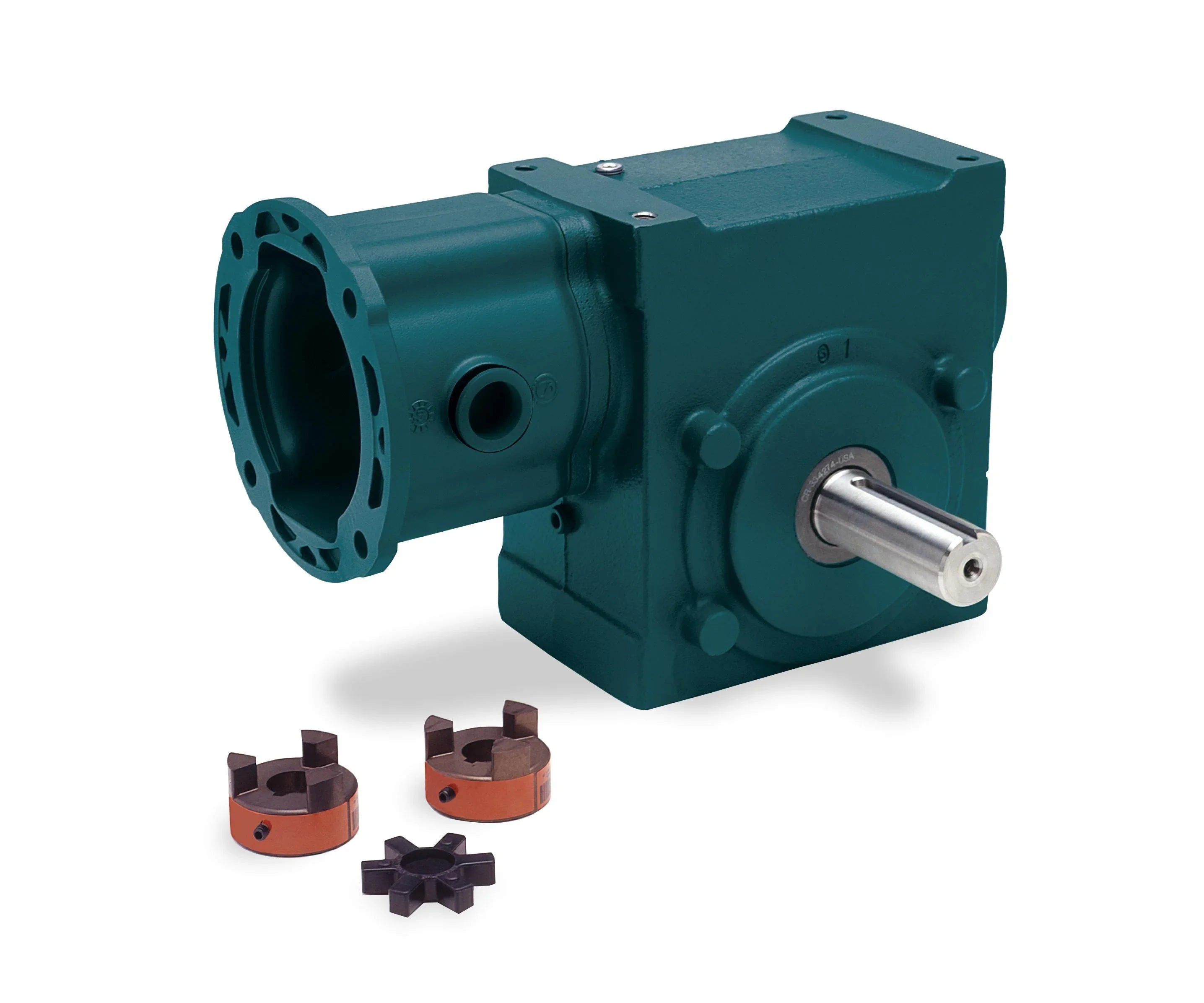

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TG2 3-PC CPLG RED SIZE 26
| Specifications | |
|---|---|
| Base to Output Center Height | 2.87 in |
| Case Size | 26 |
| Center Distance | 2.63 in |
| Center to End of Shaft Distance | 5.63 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 3.76 HP |
| Horsepower Rating Output | 3.24 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 180TC Frame |
| Motor Connection | 3-Piece Coupled |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 6.38 in |
| Mounting Bolt Pattern Width | 3.38 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 9.56 in |
| Output Shaft Location | Right |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 1.125 in |
| Output Shaft Length | 2.67 in |
| Overhung Load | 1610 lbf |
| Paint Type | Standard |
| Rated Torque Output | 2101 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 6.05 HP |
| Actual Ratio | 18 |
| Nominal Ratio | 18 |
