TCR70 129.7:1 B/S RED ASSY - INCH CW - Dodge
Regular price
$24,614.83 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

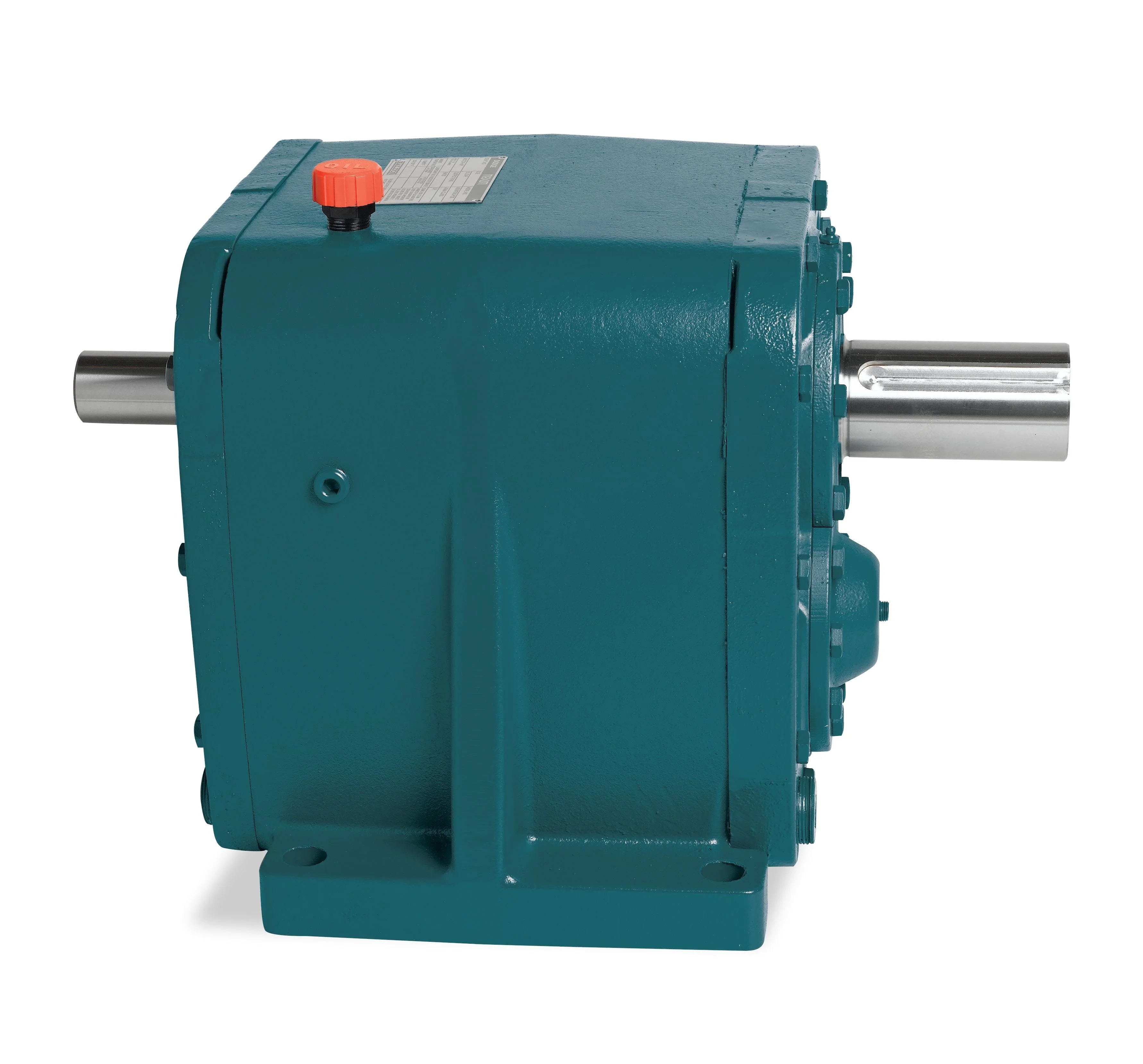

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TCR70 129.7:1 B/S RED ASSY - INCH CW
| Specifications | |
|---|---|
| Backstop Included | Yes |
| Case Size | 70 |
| Direction of Rotation | Clockwise |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 15.6 HP |
| Housing Material | Ductile Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 1.375 in |
| Maximum Speed | 3450 RPM |
| Output Orientation | In-Line |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 3.25 in |
| Reduction Type | Triple Stage |
| Seal Type | Two-Piece |
| Actual Ratio | 131.8 |
| Nominal Ratio | 129.7 |
