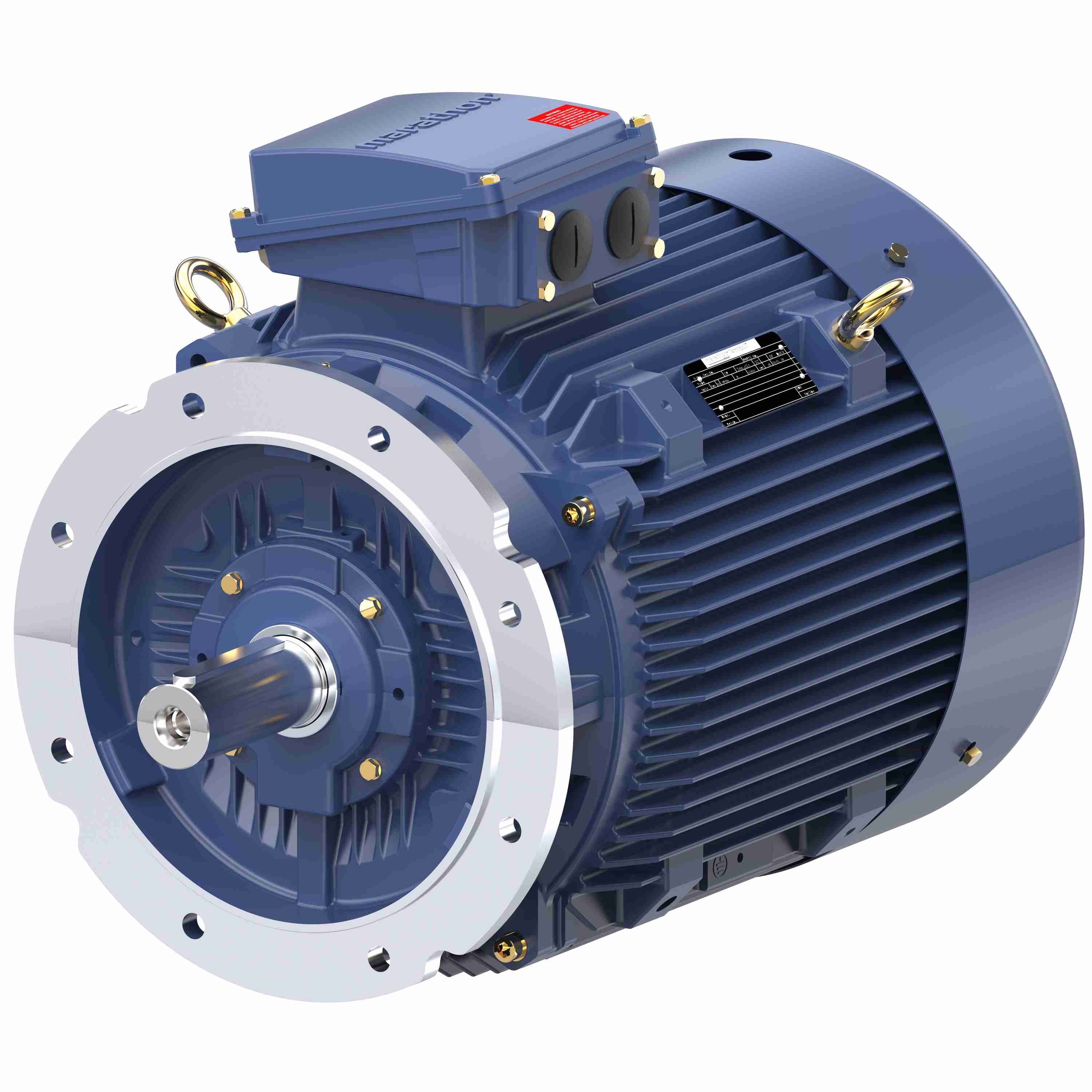

Marathon Electric Increased Safety Motors Ex eb, Totally Enclosed Fan Cooled, 25 HP, 3 Ph, 50 Hz, 400 V, 730 RPM, 225S Frame
Regular price
$0.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Increased Safety Motors Ex eb, Totally Enclosed Fan Cooled, 25 HP, 3 Ph, 50 Hz, 400 V, 730 RPM, 225S Frame
Features
- Conforms to IEC 60034, IEC/EN 60079-0, IEC/EN 60079-7
- Class F with class B temperature rise
- Bi-directional fan
- Ambient 40°C (Higher ambient on request)
- All standard mountings B3, B5, B35, V1 (B14 and B34 for IEC 80-132)
- Protection IP55 (Standard) & IP66 (Optional)
- Cast iron with special captive screws and metric cable entry for Terminal Box
Specifications
| Performance & Electrical | |
| Power | 25 HP |
| Power (dual rating) | 25 HP |
| Power | 18.5 kW |
| Voltage | 400 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 730 RPM |
| Speed (dual) | 730 RPM |
| Full-load current | 24.5 A |
| Current (dual) | 24.5 A |
| Nominal efficiency | 88.6% |
| Power factor | 0.7% |
| Service factor | 1 |
| Number of poles | 8 |
| Number of speeds | 3 |
| Duty | S1 |
| Electrical type | Squirrel Cage |
| Starting method | Direct On Line |
| Frame & Mechanical | |
| Frame | 225S |
| Frame size | 225 |
| Frame suffix | S |
| Frame material | Cast Iron |
| Frame length | 400 mm |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | B5 |
| Assembly / conduit box | Top |
| Orientation | Horizontal |
| Rotation | Bi-Directional |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 60.000 mm |
| Shaft extension | 140 mm |
| Shaft type | Keyed |
| C dimension | 837 mm |
| Drive-end bearing | 6313 |
| Drive-end bearing type | 2z-C3 |
| Opp. drive-end bearing | 6213 |
| Opp. drive-end bearing type | 2z-C3 |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Yes |
| CSA | No |
| UL | No |
| Connection drawing | 8442000085 |
| Outline drawing | 0222500544 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 890.00 × 540.00 × 670.00 mm |
| Weight | 397.50 kg |
| Identification | |
| Manufacturer part / model | TCE18P4A2121GAA001 |
| Catalog number | TCE18P4A2121GAA001 |
| UPC | 691720114841 |
| Product line | TerraMAX® |
| Country of origin | China |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
