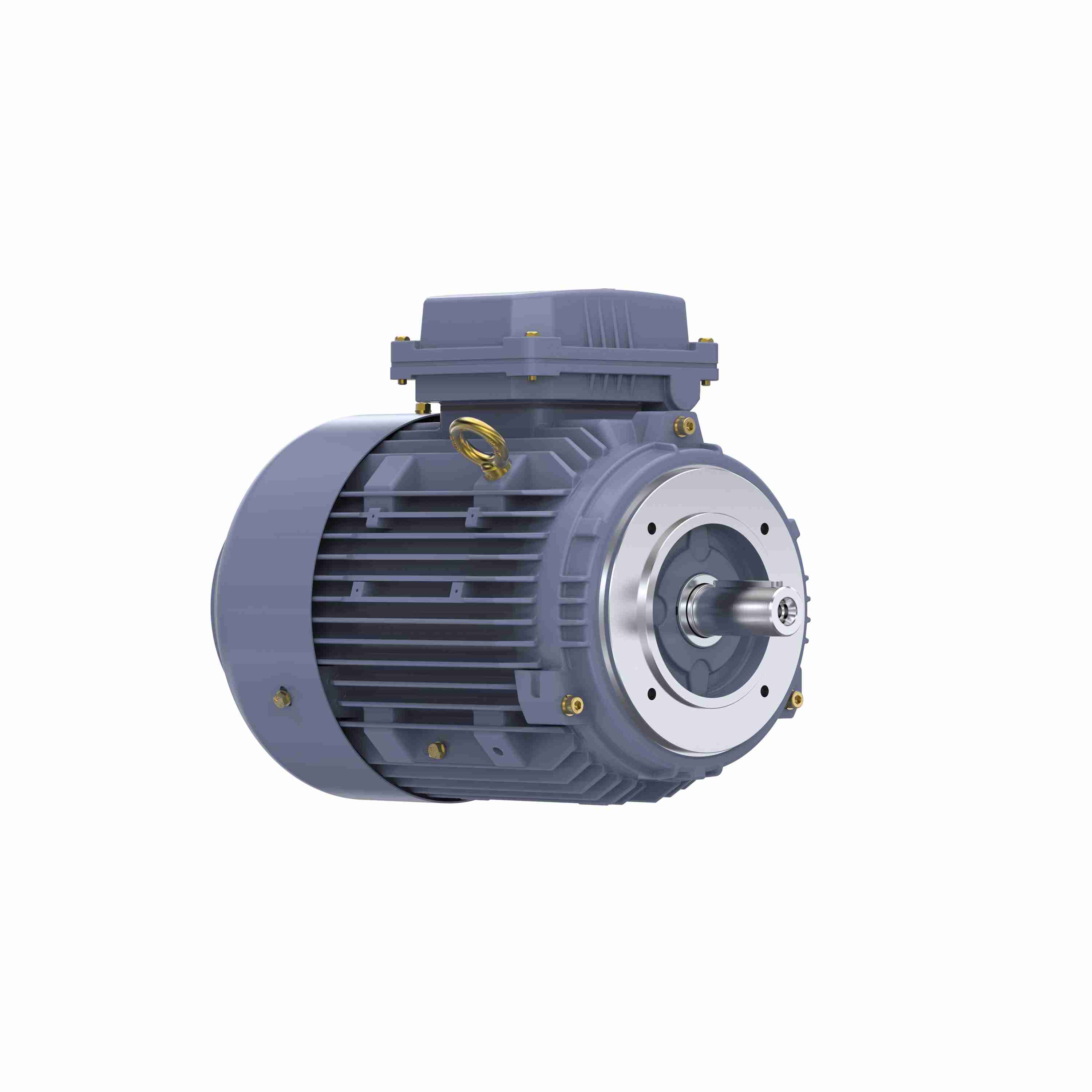

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Cast Iron Motor, 4 HP, 3 Ph, 50 Hz, 380 V, 1500 RPM, 100L Frame, TEFC
Features
- Confirms to IEC 60034
- Class F insulation and Class B rise
- Bi-directional fan
- Ambient 40°C
- Suitable for Variable Torque Duty (10:1)
- Mounting IM B3, IM B5, IM B14, IM B35, IM V1 (Special mounting on request)
- Protection IP55
- Captive screws for Terminal Box cover
Specifications
| Performance & Electrical | |
| Power | 4 HP |
| Power (dual rating) | 4 HP |
| Power | 3.0 kW |
| Voltage | 380 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 1458 RPM |
| Speed (dual) | 1458 RPM |
| Full-load current | 6.2 A |
| Current (dual) | 6.2 A |
| Nominal efficiency | 87.7% |
| Power factor | 0.84% |
| Service factor | 1 |
| Number of poles | 4 |
| Number of speeds | 1 |
| Duty | S1 |
| Electrical type | Squirrel Cage |
| Starting method | Direct On Line |
| Frame & Mechanical | |
| Frame | 100L |
| Frame size | 100 |
| Frame suffix | L |
| Frame material | Cast Iron |
| Frame length | 200 mm |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | B14A |
| Assembly / conduit box | Top |
| Orientation | Horizontal |
| Rotation | Bi-Directional |
| Max ambient | 40°C |
| Shaft & Bearings | |
| Shaft diameter | 28 mm |
| Shaft extension | 60 mm |
| Shaft type | Keyed |
| C dimension | 398 mm |
| Drive-end bearing | 6206 |
| Drive-end bearing type | 2Z-C3 |
| Opp. drive-end bearing | 6206 |
| Opp. drive-end bearing type | 2Z-C3 |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Yes |
| CSA | No |
| UL | No |
| Connection drawing | 8442000085 |
| Outline drawing | 0210000274 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 436.00 × 276.00 × 370.00 mm |
| Weight | 44.00 kg |
| Identification | |
| Manufacturer part / model | TCA0032AF171GAC010 |
| Catalog number | TCA0032AF171GAC010 |
| UPC | 722856078797 |
| Product line | TerraMAX® |
| Country of origin | China |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
