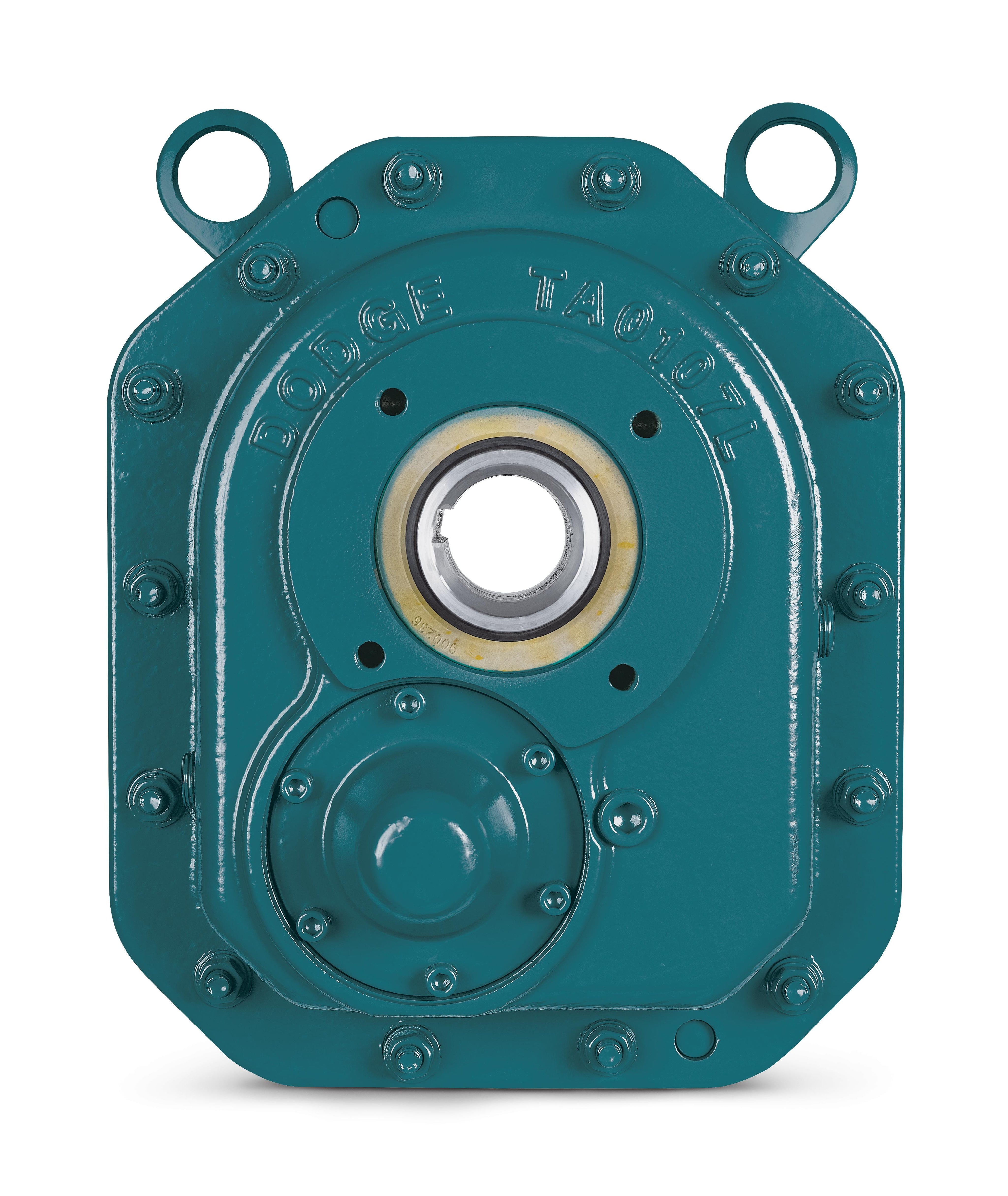

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
905003 - Dodge - TA5215H09 TAPER BUSHED REDUCER
TA5215H09 TAPER BUSHED REDUCER
Technical Specifications
| AGMA Size | 215 |
| Bore Length Output | 10.3300 |
| Bore Length Output (Unit) | INCH |
| Case Size | 5 |
| Depth | 14.7800 |
| Depth (Unit) | INCH |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 1.6250 |
| Input Shaft Diameter (Unit) | INCH |
| Maximum Speed Input | 1837 |
| Maximum Speed Input (Unit) | RPM |
| Output Orientation | Offset Parallel |
| Output Style | Hollow Bore,Screw Conveyor |
| Reduction Type | Double Stage |
| Seal Type | Two-Piece |
| Sheave Diameter Minimum | 8.9000 |
| Sheave Diameter Minimum (Unit) | INCH |
| Actual Ratio | 9.18 |
| Nominal Ratio | 9 |
