902004 - Dodge - TA2115H05 TA TAPER BUSH REDUCER
Regular price
$2,385.97 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

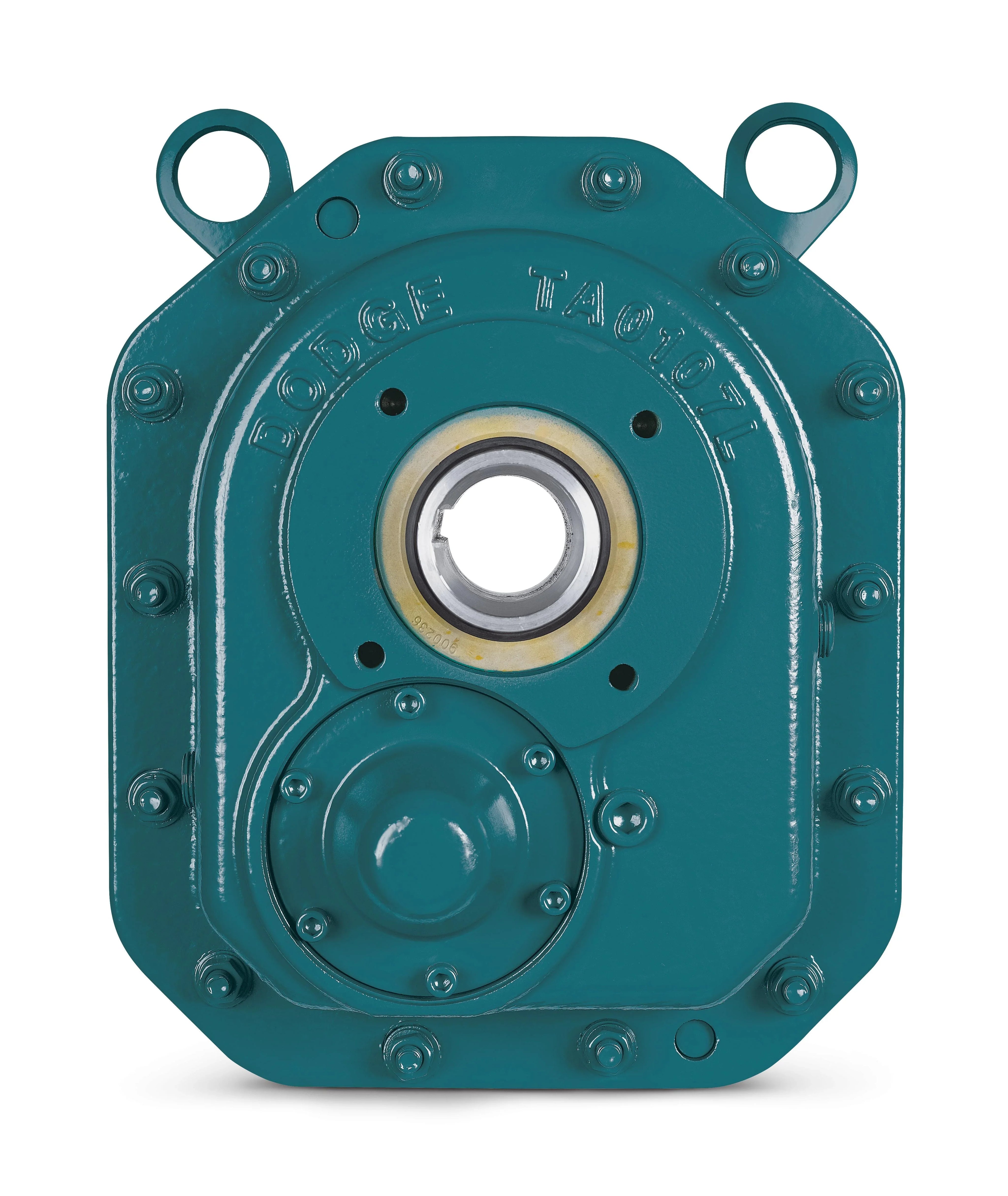

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
The Dodge Torque-Arm II, identified by SKU 902004, is a heavy-duty shaft-mounted speed reducer designed for superior performance and value. This AGMA Size 115 gearbox features a tapered bushed hollow bore for easy, concentric mounting via the industry-leading Dodge twin tapered bushing system (sold separately). The unit's Class 30 cast iron housing and premium two-piece seal system make it exceptionally durable for harsh industrial environments. With a 5:1 nominal ratio and highly efficient single-stage helical gearing, this belt-driven reducer, confirmed by UPC 782475542031, is a robust and reliable choice for a wide array of applications, from aggregate to material handling.
TA2115H05 TA TAPER BUSH REDUCER
Technical Specifications
| AGMA Size | 115 |
| Bore Length Output | 7.8100 |
| Bore Length Output (Unit) | INCH |
| Case Size | 2 |
| Depth | 10.9200 |
| Depth (Unit) | INCH |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 1.1250 |
| Input Shaft Diameter (Unit) | INCH |
| Maximum Speed Input | 2080 |
| Maximum Speed Input (Unit) | RPM |
| Output Orientation | Offset Parallel |
| Output Style | Hollow Bore,Screw Conveyor |
| Reduction Type | Single Stage |
| Seal Type | Two-Piece |
| Sheave Diameter Minimum | 6.5000 |
| Sheave Diameter Minimum (Unit) | INCH |
| Actual Ratio | 5.2 |
| Nominal Ratio | 5 |
