TIGEAR-2 REDUCER W/ WHITE PAINT - Dodge
Regular price
$1,443.49 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

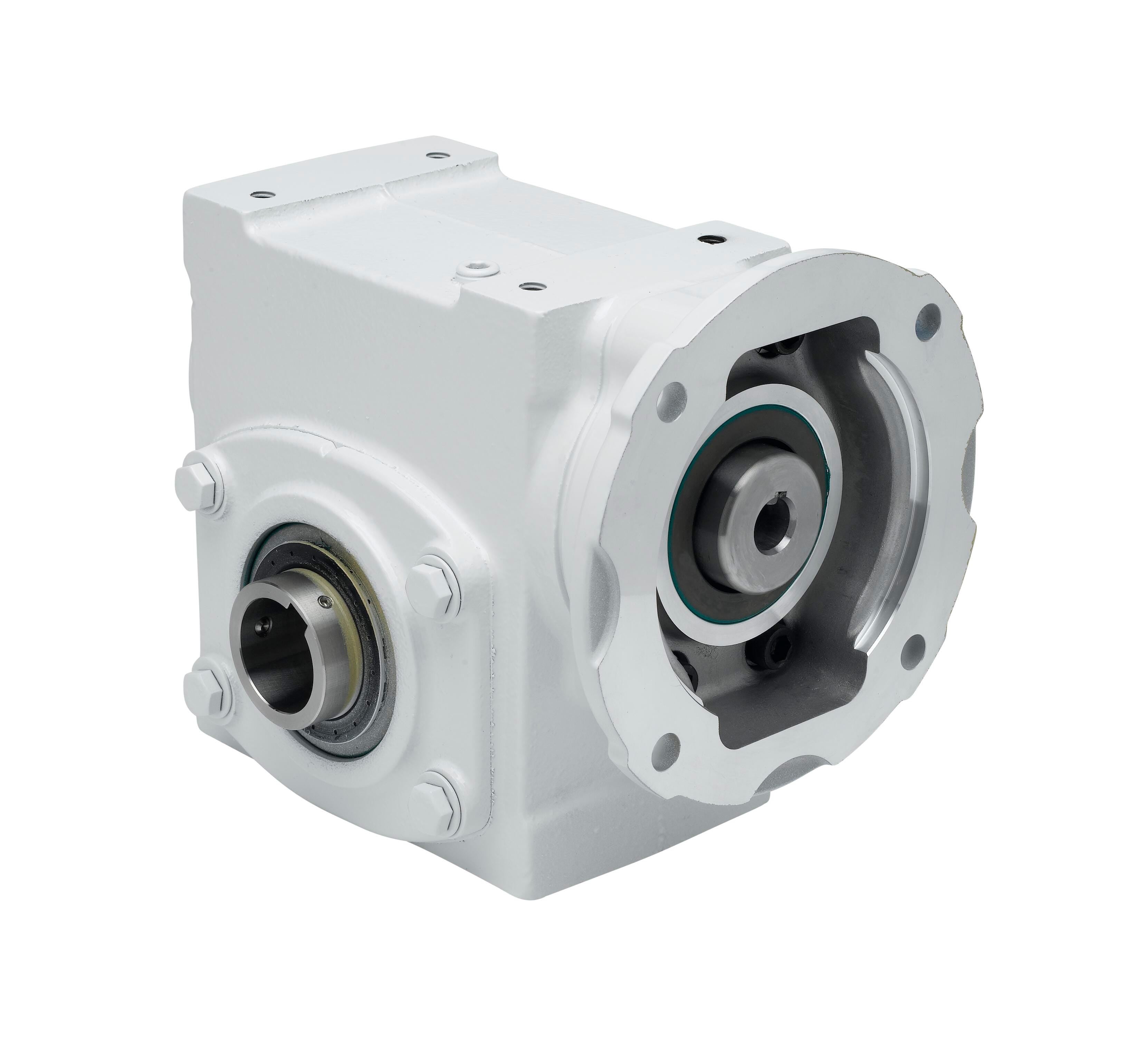

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 REDUCER W/ WHITE PAINT
| Specifications | |
|---|---|
| Base to Output Center Height | 2.5 in |
| Bore Diameter (Output) | 1.4375 in |
| Bore Length | 6.62 in |
| Bushing Required | Optional |
| Case Size | 23 |
| Center Distance | 2.31 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 2.61 HP |
| Horsepower Rating Output | 2.14 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 140TC Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 5 in |
| Mounting Bolt Pattern Width | 2.88 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 5.46 in |
| Output Style | Hollow Bore |
| Overhung Load | 1610 lbf |
| Paint Type | White Epoxy |
| Rated Torque Output | 1542 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 4.61 HP |
| Actual Ratio | 20 |
| Nominal Ratio | 20 |
