MTA SIZE 7315, 51:1, 250 C-FACE
Regular price
$19,175.33 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

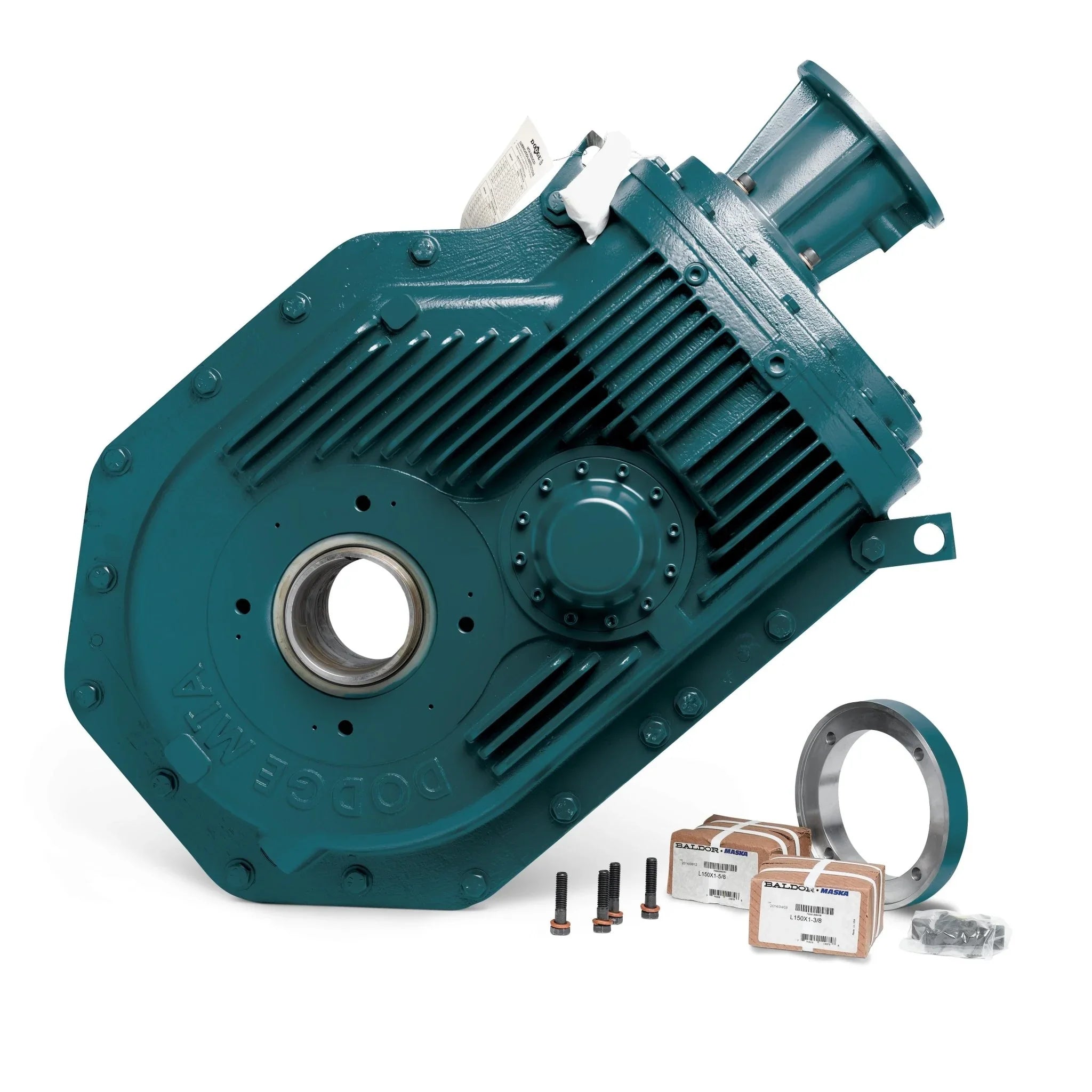

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
MTA SIZE 7315, 51:1, 250 C-FACE
| Specifications | |
|---|---|
| AGMA Size | 315 |
| Bore Length Output | 11.9 in |
| Case Size | 7 |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Input Shaft Diameter | 1.374 in |
| Maximum Speed Input | 3600 RPM |
| Motor Compatibility | NEMA Motor, 250TC Frame |
| Motor Connection | 3-Piece Coupled |
| Motor Standard | NEMA |
| Output Orientation | Right-Angle |
| Output Style | Hollow Bore,Screw Conveyor |
| Reduction Type | Triple Stage |
| Screw Conveyor Compatible | Yes |
| Seal Type | Two-Piece |
| Actual Ratio | 50.97 |
| Nominal Ratio | 51 |
