47Q25L18WP - Dodge - TIGEAR-2 REDUCER W/ WHITE PAINT
Regular price
$5,371.31 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

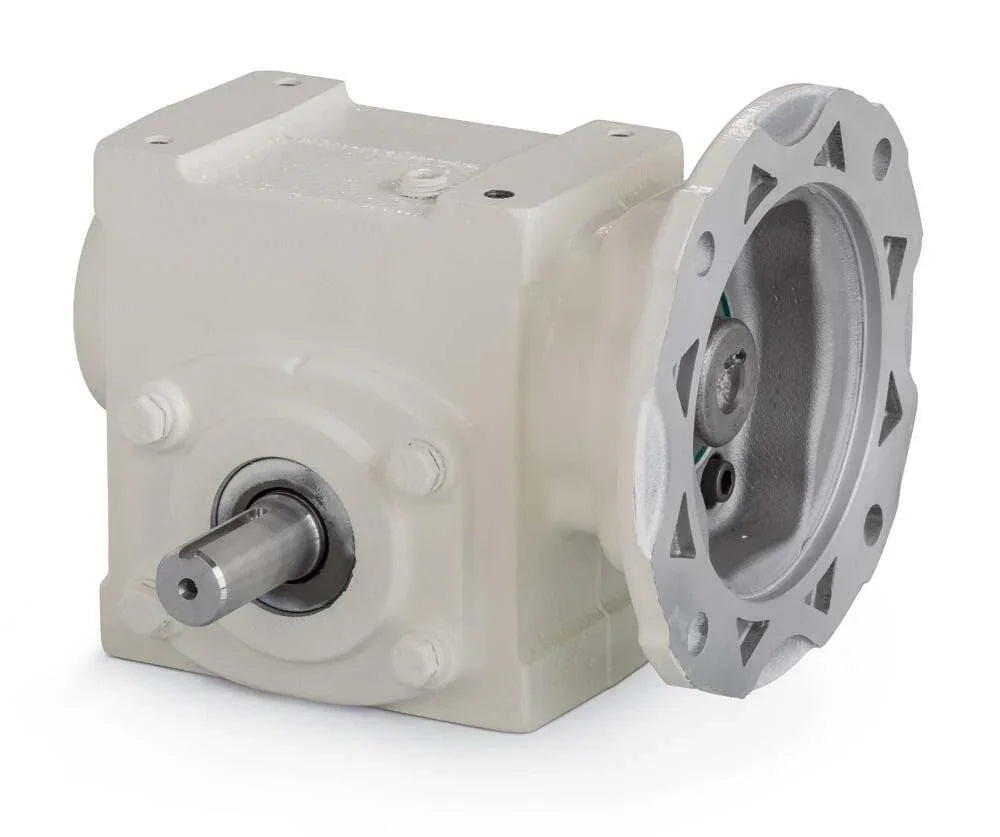

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 REDUCER W/ WHITE PAINT
| Specifications | |
|---|---|
| Base to Output Center Height | 5.31 in |
| Case Size | 47 |
| Center Distance | 4.75 in |
| Center to End of Shaft Distance | 9.06 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 10.48 HP |
| Horsepower Rating Output | 8.52 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Standard Temperature |
| Motor Compatibility | NEMA Motor, 180TC Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 11 in |
| Mounting Bolt Pattern Width | 5.81 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 9.47 in |
| Output Shaft Location | Left |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 2 in |
| Output Shaft Length | 4.01 in |
| Overhung Load | 5600 lbf |
| Paint Type | White Epoxy |
| Rated Torque Output | 7671 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 10.18 HP |
| Actual Ratio | 25 |
| Nominal Ratio | 25 |
