17Q07L56LT - Dodge - TIGEAR-2 REDUCER - LOW TEMP LUBE
Regular price
$822.58 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

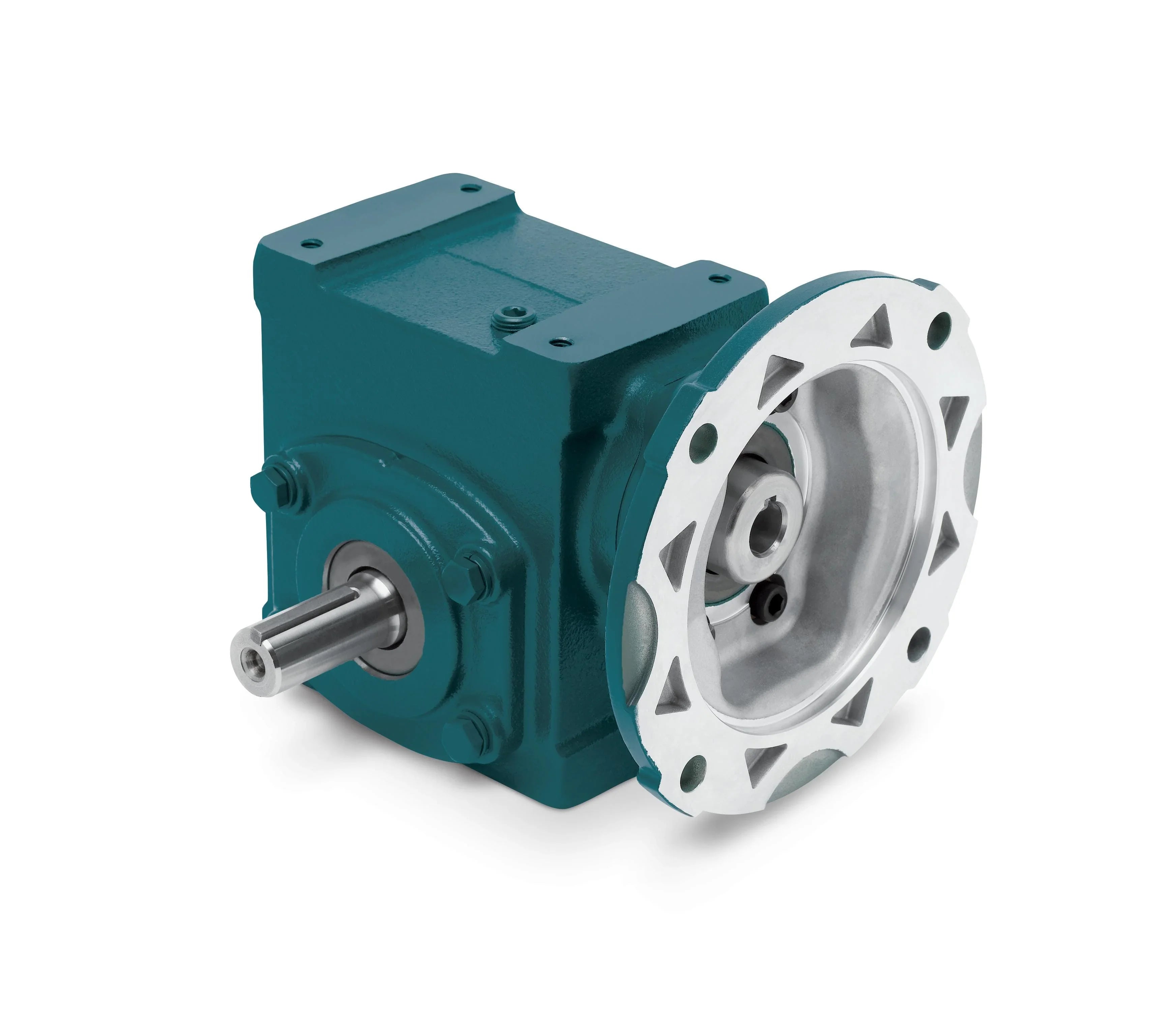

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 REDUCER - LOW TEMP LUBE
| Specifications | |
|---|---|
| Base to Output Center Height | 1.99 in |
| Case Size | 17 |
| Center Distance | 1.75 in |
| Center to End of Shaft Distance | 4.31 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 2.37 HP |
| Horsepower Rating Output | 2.16 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | PAG, Low Temperature |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Mounting Bolt Pattern Length | 4.19 in |
| Mounting Bolt Pattern Width | 2.75 in |
| Output Orientation | Right-Angle |
| Output Shaft Center to Input Motor Mounting Face Distance | 4.9 in |
| Output Shaft Location | Left |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 0.875 in |
| Output Shaft Length | 1.74 in |
| Overhung Load | 1190 lbf |
| Paint Type | Standard |
| Rated Torque Output | 584 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 4.98 HP |
| Actual Ratio | 7.5 |
| Nominal Ratio | 7 |
