15S30LSL306 - Dodge - TIGEAR-2 REDUCER-SPEC O/P SHAFT
Regular price
$1,757.06 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

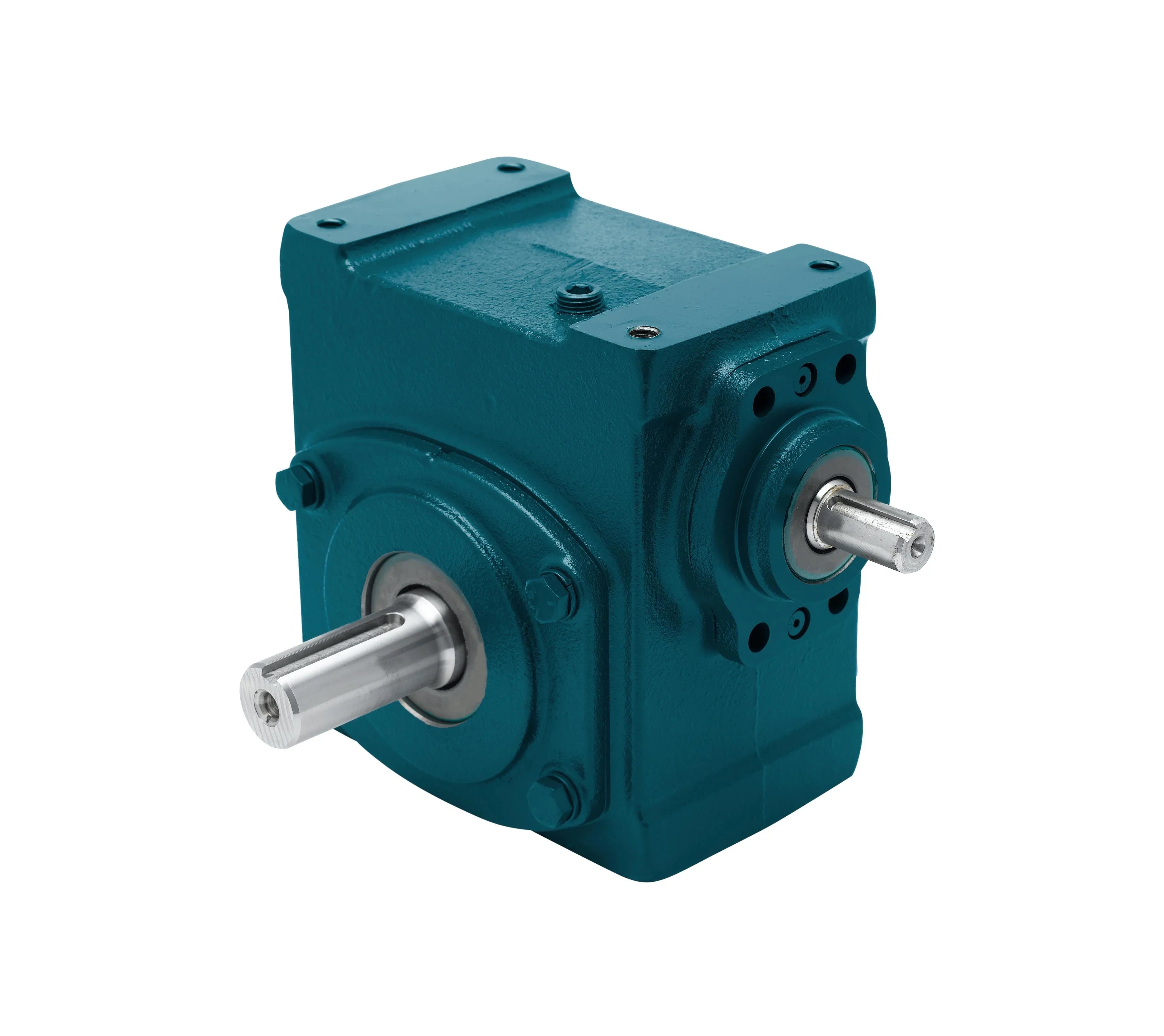

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
TIGEAR-2 REDUCER-SPEC O/P SHAFT
| Specifications | |
|---|---|
| Base to Output Center Height | 1.87 in |
| Case Size | 15 |
| Center Distance | 1.5 in |
| Center to End of Shaft Distance | 5.46 in |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 0.76 HP |
| Horsepower Rating Output | 0.57 HP |
| Housing Material | Cast Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 0.5 in |
| Input Shaft Length | 1.19 in |
| Lubrication | PAG, Standard Temperature |
| Mounting Bolt Pattern Length | 3.5 in |
| Mounting Bolt Pattern Width | 2.25 in |
| Output Orientation | Right-Angle |
| Output Shaft Location | Left |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 0.75 in |
| Output Shaft Length | 3.38 in |
| Overhung Load | 710 lbf |
| Paint Type | Standard |
| Rated Torque Output | 612 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Thermal Horsepower Rating | 2.46 HP |
| Actual Ratio | 30 |
| Nominal Ratio | 30 |
