118355 - Dodge - 4B16.0-2517 SHEAVE
Regular price
$382.59 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

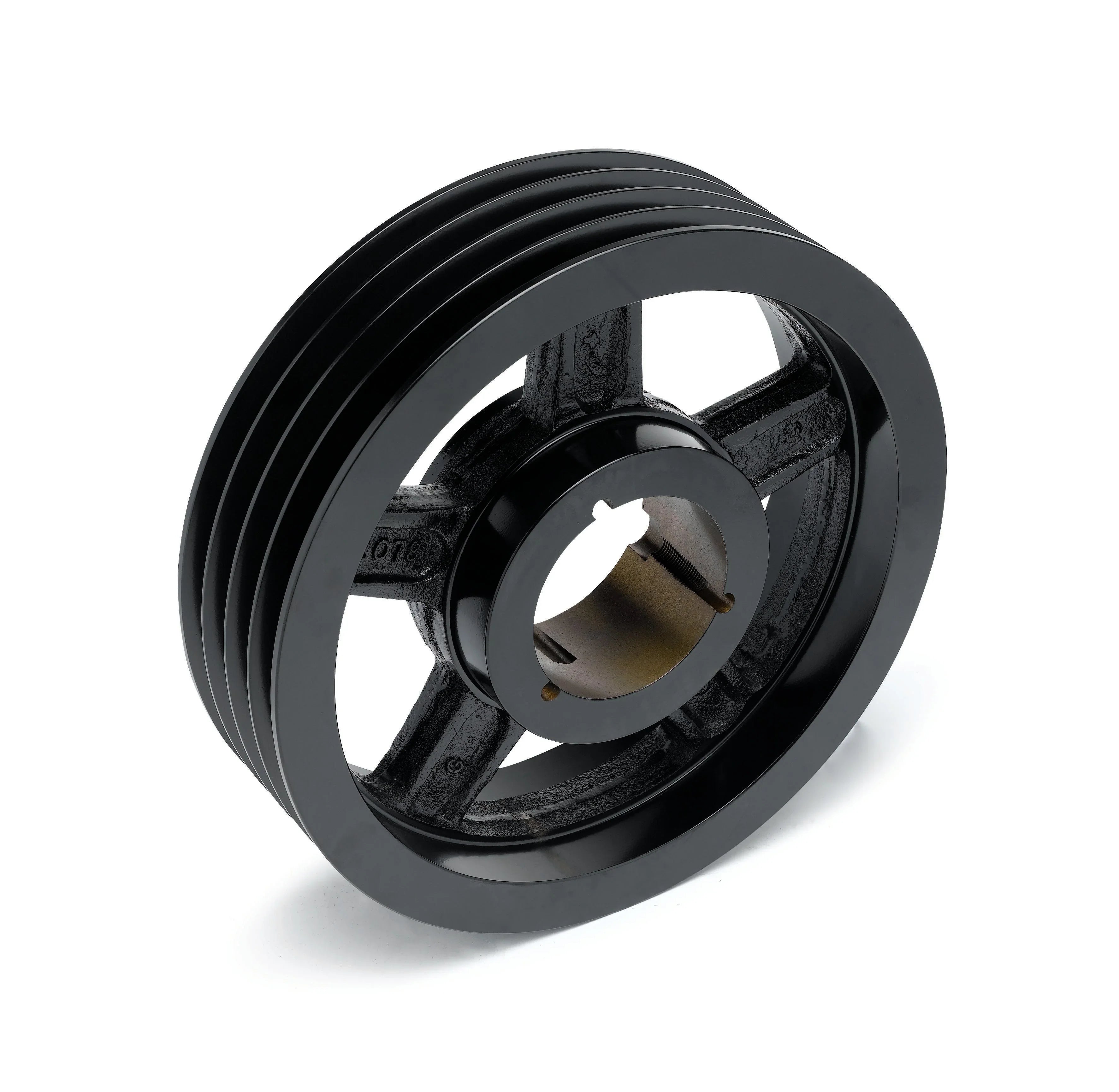

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
118355 - Dodge - 4B16.0-2517 SHEAVE
4B16.0-2517 SHEAVE
Technical Specifications
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/belted_drives/v_belt_sheaves/taper_lock_tl/ab_tls_asmtab.prj&varset={OD=16.35},{G=4-Groove} |
| Construction Type | Arm |
| Datum Diameter | 15.6000 |
| Datum Diameter (Unit) | INCH |
| Material | Cast Iron |
| Number of Grooves | 4.0000 |
| Outside Diameter (Unit) | INCH |
| Outside Diameter | 16.3500 |
