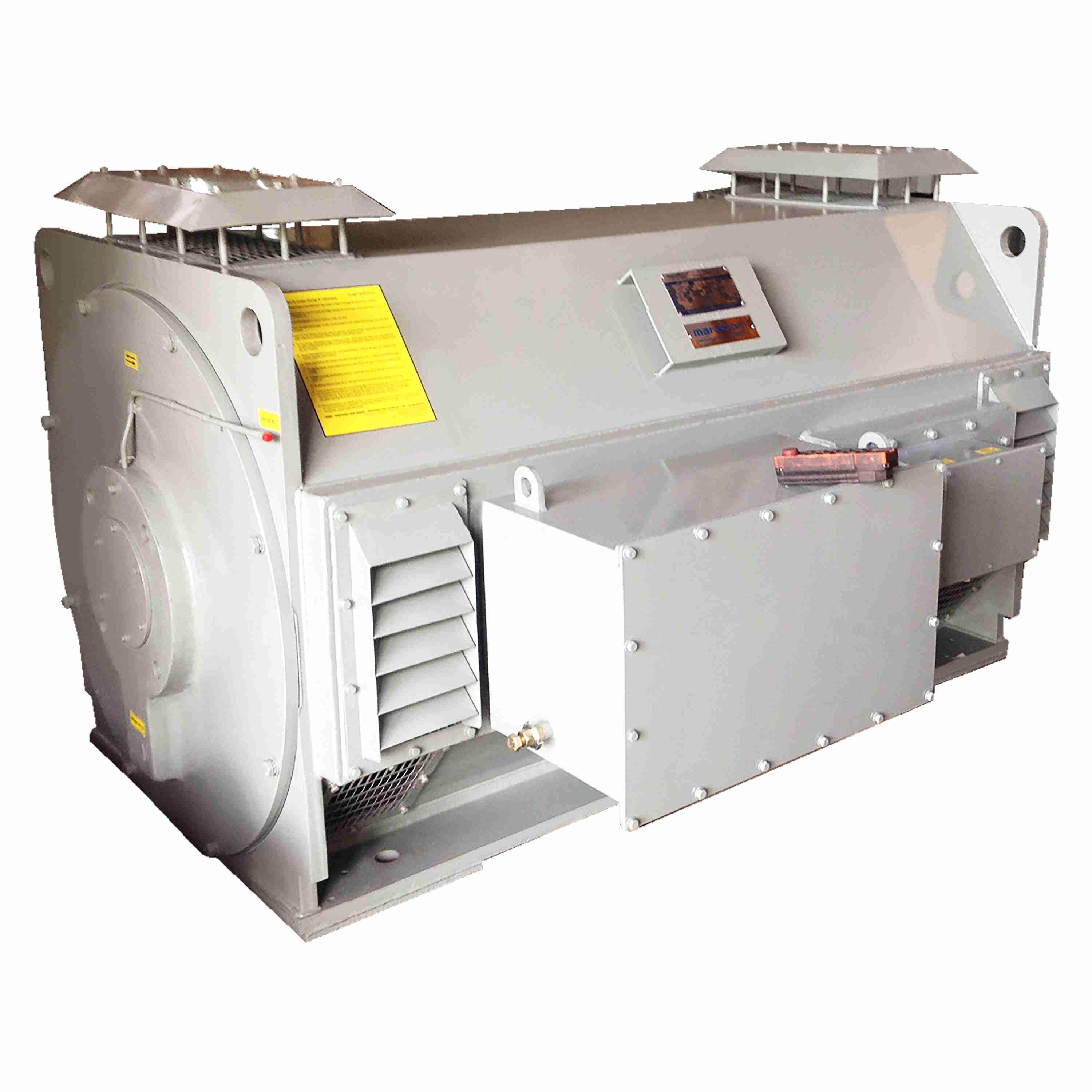

Marathon Electric 1120 kW, Rolling Mill Duty Motors, 3 phase, 750 RPM, 415 V, CW560L Frame,
Regular price
$0.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
1120 kW, Rolling Mill Duty Motors, 3 phase, 750 RPM, 415 V, CW560L Frame,
Features
- Compliance with IEC Class IV & V duty.
- Inherent thermal margin leads to High Performance
- Suitable for indoor application with IP23 degree of protection.
- Ease of inspection and maintenance through large slipring inspection window & transparent cover.
- Low Vibration due to simple and less nos. of component in bearing assembly.
- Tailor made motor to suites customer’s specific requirements.
- External slipring assembly for ease of maintenance.
- Improved ventilation technique.
- Inherent thermal margin leads to High Performance.
Specifications
| Performance & Electrical | |
| Power | 1500 HP |
| Power (dual rating) | 1500 HP |
| Power | 1120 kW |
| Voltage | 415 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 750 RPM |
| Speed (dual) | 750 RPM |
| Full-load current | 2153.0 A |
| Current (dual) | 2153.0 A |
| Nominal efficiency | 94% |
| Power factor | 0.77% |
| Service factor | 1 |
| Duty | S1 |
| Electrical type | Slip Ring Induction Motor |
| Starting method | LRS |
| Frame & Mechanical | |
| Frame | CW560L |
| Frame material | Fabricated Steel |
| IP rating | IP23 |
| Mounting | B3 |
| Assembly / conduit box | Side |
| Orientation | Horizontal |
| Rotation | Bi-Direction |
| Max ambient | 45°C |
| Shaft & Bearings | |
| Shaft diameter | 150 mm |
| Shaft extension | 250 mm |
| Shaft type | Cylindrical |
| C dimension | 3200 mm |
| Drive-end bearing type | Ball & Roller |
| Opp. drive-end bearing type | Roller |
| Compliance & Certifications | |
| Outline drawing | CW Series |
| Identification | |
| Manufacturer part / model | SCWS17KF4J2BHS5L1X2 |
| Units per package | 1 |
| Catalog status | Active |
