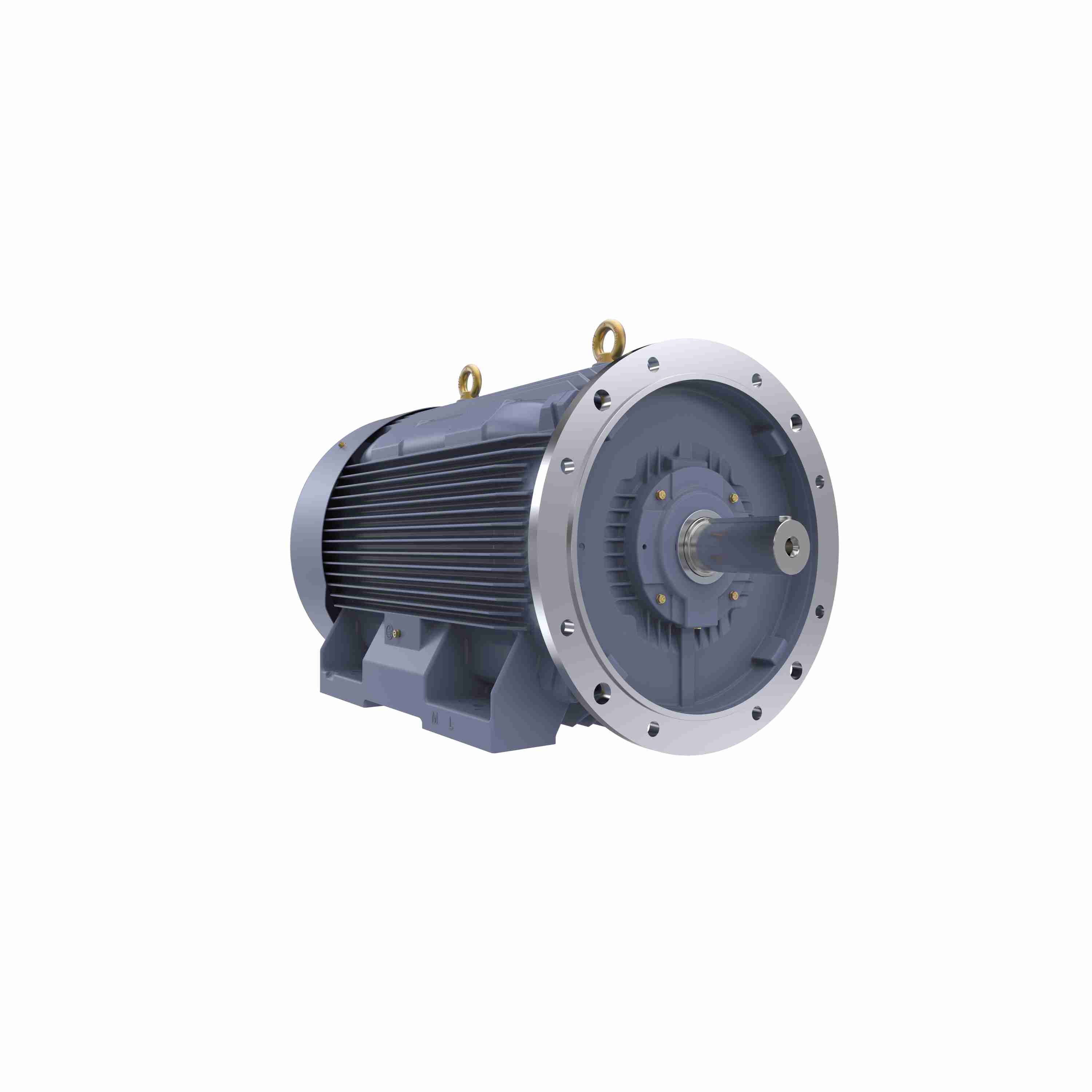

Marathon Electric Cast Iron Motor, 270 HP, 3 Ph, 50 Hz, 415 V, 3000 RPM, 315L Frame, TEFC
Regular price
$0.00 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
Cast Iron Motor, 270 HP, 3 Ph, 50 Hz, 415 V, 3000 RPM, 315L Frame, TEFC
Features
- Confirms to IEC 60034
- Class F insulation and Class B rise
- Bi-directional fan
- Ambient 50°C
- Suitable for Variable Torque Duty (10:1)
- B35(Special mounting on request)
- Protection IP55
- Captive screws for Terminal Box cover
Specifications
| Performance & Electrical | |
| Power | 270 HP |
| Power (dual rating) | 270 HP |
| Power | 200.0 kW |
| Voltage | 415 V |
| Phase | 3 |
| Frequency | 50 Hz |
| Speed (max) | 2979 RPM |
| Speed (dual) | 2979 RPM |
| Full-load current | 319.2 A |
| Current (dual) | 319.2 A |
| Nominal efficiency | 95% |
| Power factor | 0.92% |
| Service factor | 1 |
| Number of poles | 2 |
| Number of speeds | 1 |
| Duty | S1 |
| Electrical type | Squirrel Cage |
| Starting method | Direct On Line |
| Frame & Mechanical | |
| Frame | 315L |
| Frame size | 315 |
| Frame suffix | L |
| Frame material | Cast Iron |
| Frame length | 840 mm |
| Enclosure | Totally Enclosed Fan Cooled |
| IP rating | IP55 |
| Insulation class | F |
| Mounting | B35 |
| Assembly / conduit box | SIDE |
| Orientation | Horizontal |
| Rotation | Bi-Directional |
| Max ambient | 50°C |
| Shaft & Bearings | |
| Shaft diameter | 65 mm |
| Shaft extension | 140 mm |
| Shaft type | Keyed |
| C dimension | 1287 mm |
| Drive-end bearing | 6316 |
| Drive-end bearing type | C3 |
| Opp. drive-end bearing | 6316 |
| Opp. drive-end bearing type | C3 |
| Overload protection | No Protection |
| Compliance & Certifications | |
| CE | Yes |
| CSA | No |
| UL | No |
| Connection drawing | 8442000085 |
| Outline drawing | 0231501399 |
| Dimensions & Weight | |
| Overall dimensions (L × W × H) | 1,490.00 × 1,130.00 × 840.00 mm |
| Weight | 1,247.00 kg |
| Identification | |
| Manufacturer part / model | SCA2001A3133GAAD01 |
| Catalog number | SCA2001A3133GAAD01 |
| UPC | 722856179920 |
| Product line | TerraMAX® |
| Country of origin | India |
| Minimum order qty | 1 |
| Order multiple | 1 |
| Units per package | 1 |
| Catalog status | Active |
