231075 - Dodge - P4B-BZA-207
Regular price
$1,629.82 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

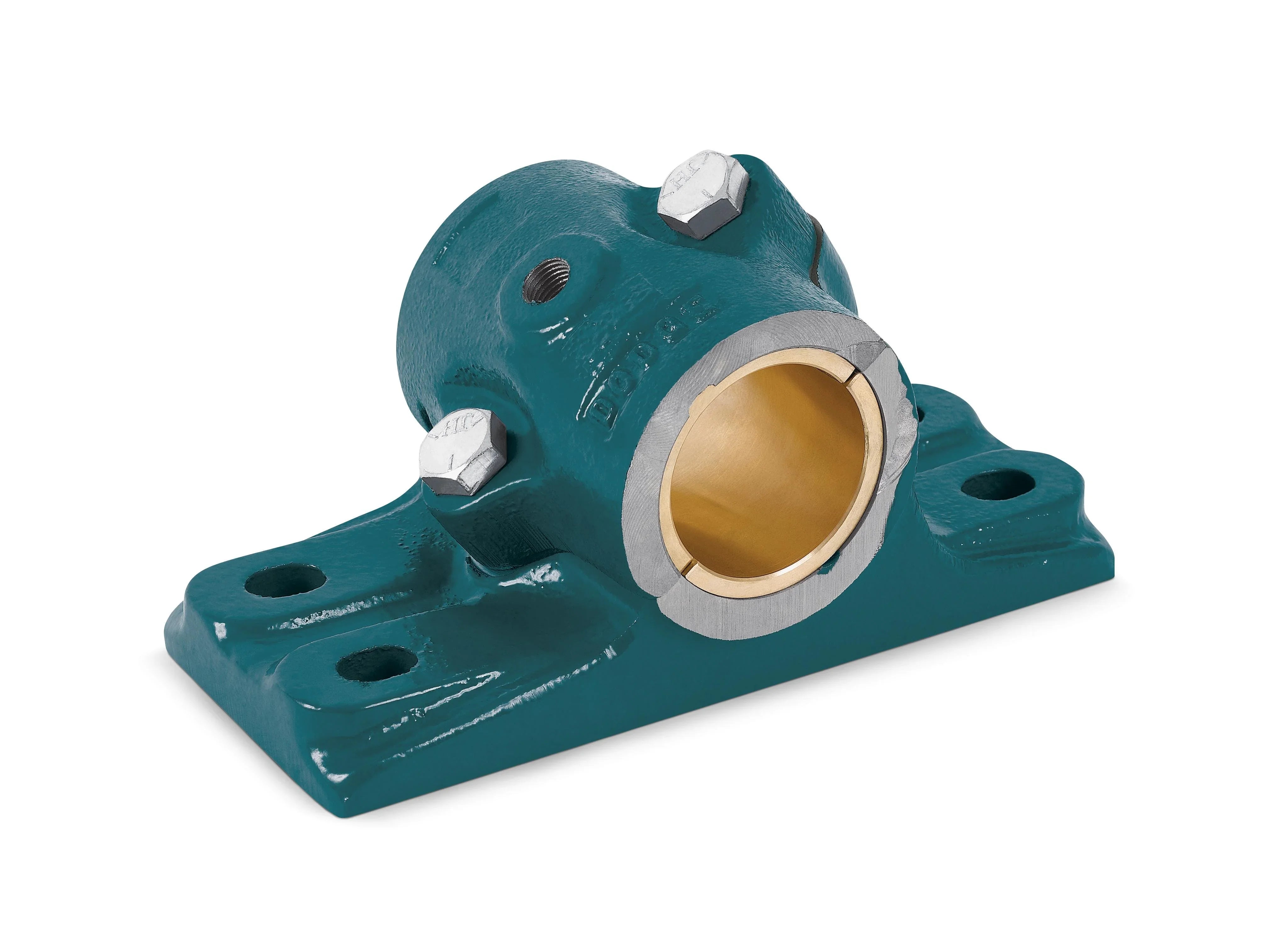

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
231075 - Dodge - P4B-BZA-207
P4B-BZA-207
Technical Specifications
| Base to Center Height | 2.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Journal |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.3130 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 7.6880 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 5.0000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/journal_bearings/plain/bronze_bushed_baz_bzr_bzsp/p2b_bza_bodi_asmtab.prj&varset={SS=2-7/16},{PN=231075},{DESCRIPTION=P4B-BZA-207},{WEIGHT=20},{UOF=HD-200},{A=5},{B=10-1/4},{C=4},{DMIN=7-11/16},{DMAX=8-5/16},{E=2},{F=5/8},{G=1},{H=1-1/8},{J=5-9/16},{M=2-3/4},{CBQ=2},{PT=3/8},{NR=1},{GS=2}&hidePortlets=searchHeader |
| Expansion Capability | Expansion (Float) |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Bronze |
| Lubrication | Grease |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-200 |
