481688 - Dodge - RCX136-4 BELT | Conveyors

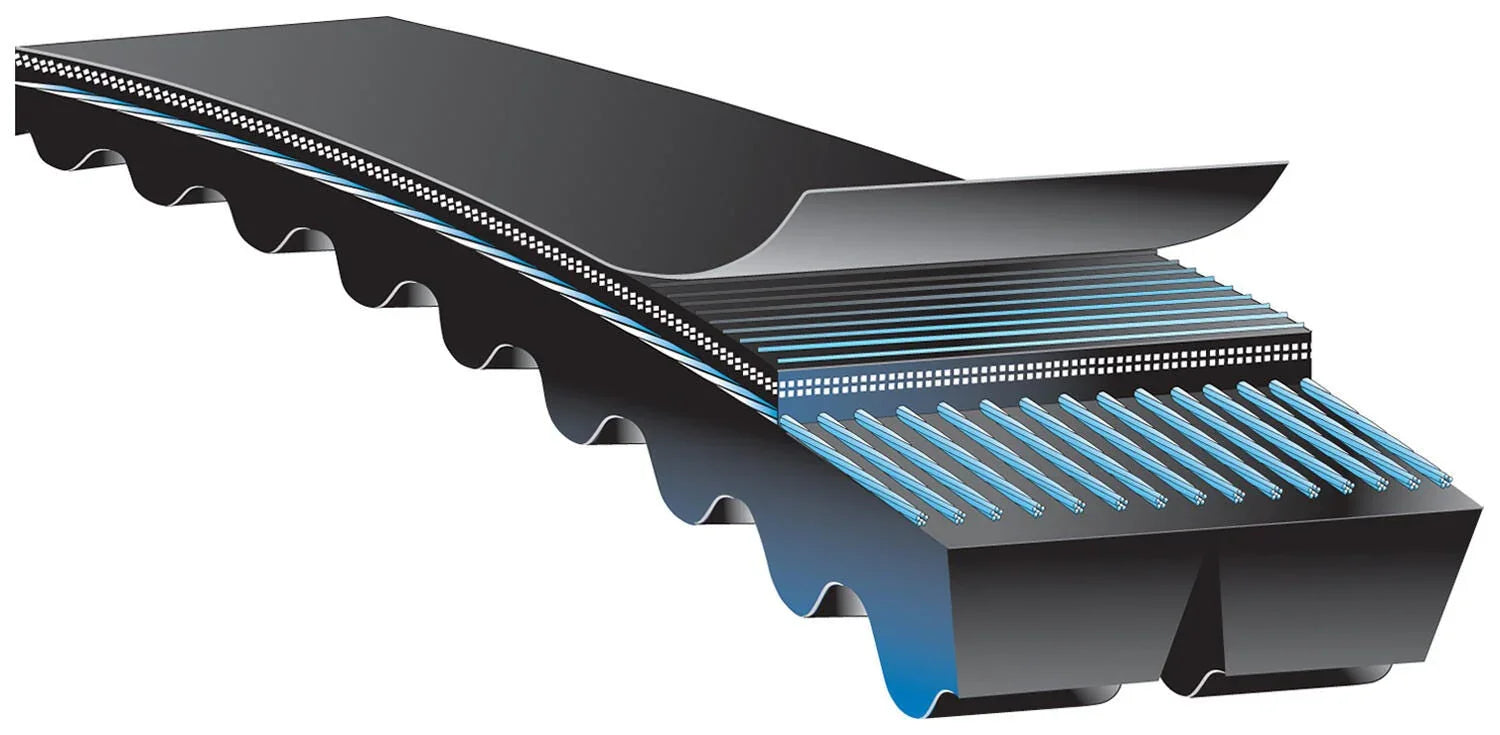

The 481688 Dodge RCX136-4 BELT is a premium Classical Banded V-Belt designed for use in conveyor systems and heavy-duty industrial applications. Built for exceptional strength and durability, this belt ensures stable performance in demanding environments and is optimized for use with MAGNAGEAR G100HPH2-22 conveyor drives.
- Product Type: Banded V-Belt (Classical profile)
- Length: 136 inches
- Number of Ribs: 4
- Material: High-strength rubber compound
- Compatibility: Designed to fit Dodge systems and suitable for MAGNAGEAR G100HPH2-22
Compared to industry standards, the 481688 Dodge RCX136-4 BELT outperforms typical single V-belts by offering enhanced load distribution and resistance to twisting, making it ideal for high-torque conveyor applications. Previous models like the RCX120-5 provided reliable power transmission, but the RCX136-4 is engineered with an extended length and four-rib configuration for even greater efficiency and stability. This improvement ensures reduced vibration and slippage, which extends the life of both the belt and conveyor system components.
Key Technical Advantages:
- Banded V-Belt design minimizes belt whip and jump for smooth, consistent operation.
- Four-rib structure delivers increased traction and load capacity over single or double rib belts.
- High-strength rubber compound offers superior resistance to abrasion, heat, and oil.
- Engineered for compatibility with Dodge conveyor systems and MAGNAGEAR G100HPH2-22 applications.
- Extended length (136 inches) supports broader conveyor systems and reduces the need for frequent replacements.
Technology and Performance
The Dodge RCX136-4 BELT leverages advanced manufacturing technologies to deliver reliable performance across a wide range of conveyor and industrial settings. Its banded classical V-belt design distributes tension evenly across the four ribs, minimizing downtime and maintenance. With excellent resistance to environmental stressors and a tight, secure fit, this belt maximizes efficiency and helps keep your operation running smoothly. Whether upgrading an existing system or outfitting a new conveyor, the RCX136-4 belt offers unmatched dependability and value, particularly for users of MAGNAGEAR G100HPH2-22 drives and similar conveyor applications.
RCX120-5 BELT
Technical Specifications
| Belt Height | 0.5313 |
| Belt Height (Unit) | INCH |
| Belt Length Datum | 122.9000 |
| Belt Length Datum (Unit) | INCH |
| Belt Length Outside | 124.0000 |
| Belt Length Outside (Unit) | INCH |
| Belt Type | V-Belt |
| Belt Width | 0.8750 |
| Belt Width (Unit) | INCH |
| Material | Neoprene Rubber Body |
| Maximum Temperature Rating | 140.0000 |
| Maximum Temperature Rating (Unit) | FAHRENHEIT |
| Minimum Temperature Rating | -30.0000 |
| Minimum Temperature Rating (Unit) | FAHRENHEIT |
| Number of Bands | 5 |
| Oil Resistance | Good |
| Reinforcement Material | Length Stabilized Polyester Cord |
| Standards Met | RMA |
| V-Belt Construction | Cogged |
| V-Belt Design | Banded |
| V-Belt Profile | C |
