243409 - Dodge - HSCXT305A 6B SCREW CONV REDUCER
Regular price
$4,687.71 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

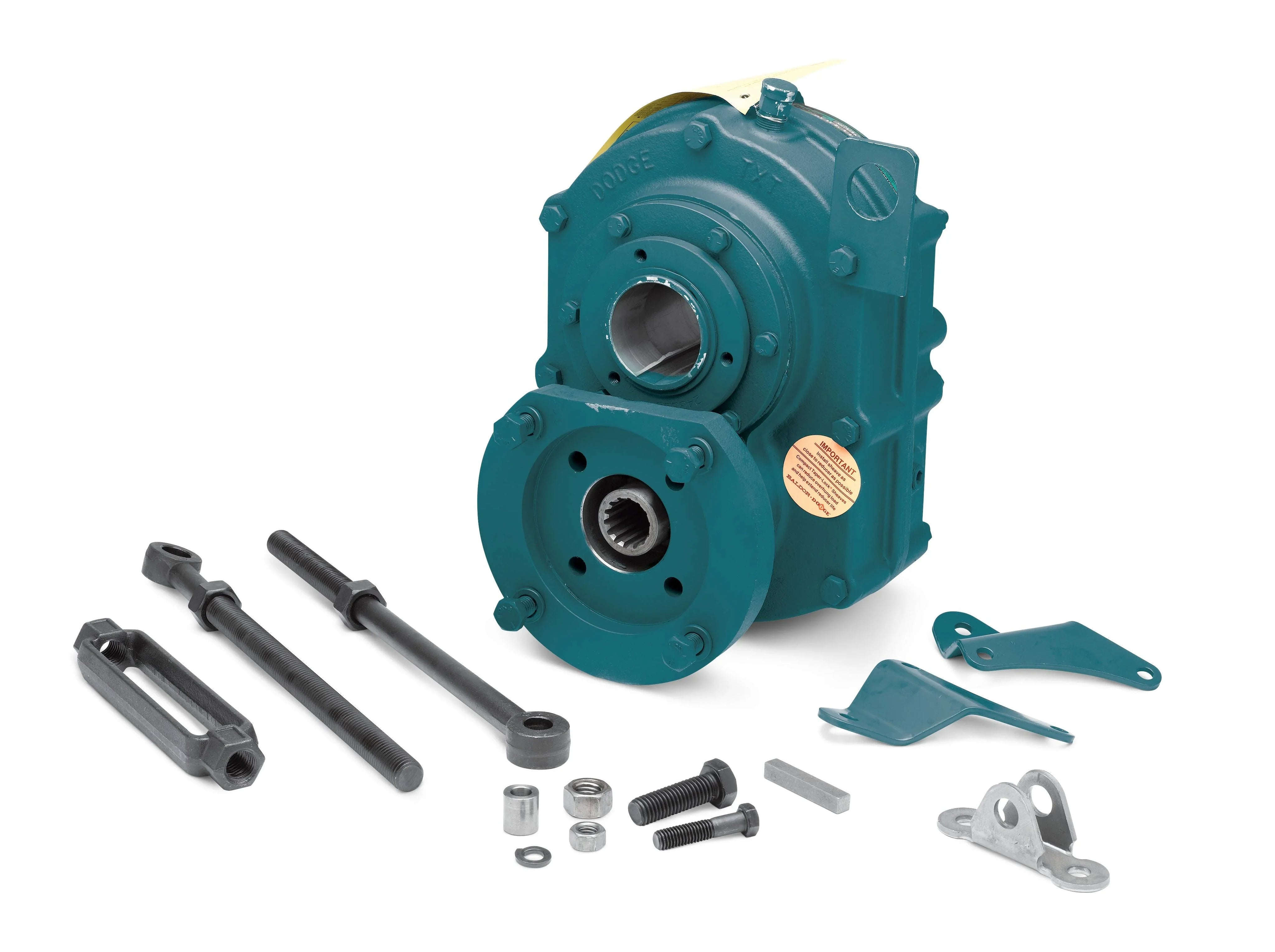

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
This Dodge Torque-Arm speed reducer, identified by SKU 243409, is a specialized Hydroil (HSCXT) screw conveyor drive, engineered for direct integration with hydraulic motors. The unit's cast iron housing is designed for shaft mounting and is configured to meet CEMA (Conveyor Equipment Manufacturers Association) standards. It features a single-stage reduction with a 5.6:1 actual ratio and a straight bore output. This reducer is part of the Hydroil series, denoted by the "H" in HSCXT, indicating its suitability for hydraulic motor inputs, providing a robust and reliable drive solution for screw conveyors in demanding industrial applications.
HSCXT305A 6B SCREW CONV REDUCER
Technical Specifications
| AGMA Size | 203 |
| Bore Length Output | 7.6600 |
| Bore Length Output (Unit) | INCH |
| Case Size | 3 |
| Depth | 8.7400 |
| Depth (Unit) | INCH |
| Gearbox Component Type | Gearbox |
| Housing Material | Cast Iron |
| Input Connection Type | Hydraulic |
| Input Style | Direct Mount |
| Maximum Speed Input | 2240 |
| Maximum Speed Input (Unit) | RPM |
| Output Style | Screw Conveyor |
| Reduction Type | Single Stage |
| Seal Type | Single-Lip Contact |
| Actual Ratio | 5.6 |
| Nominal Ratio | 5 |
