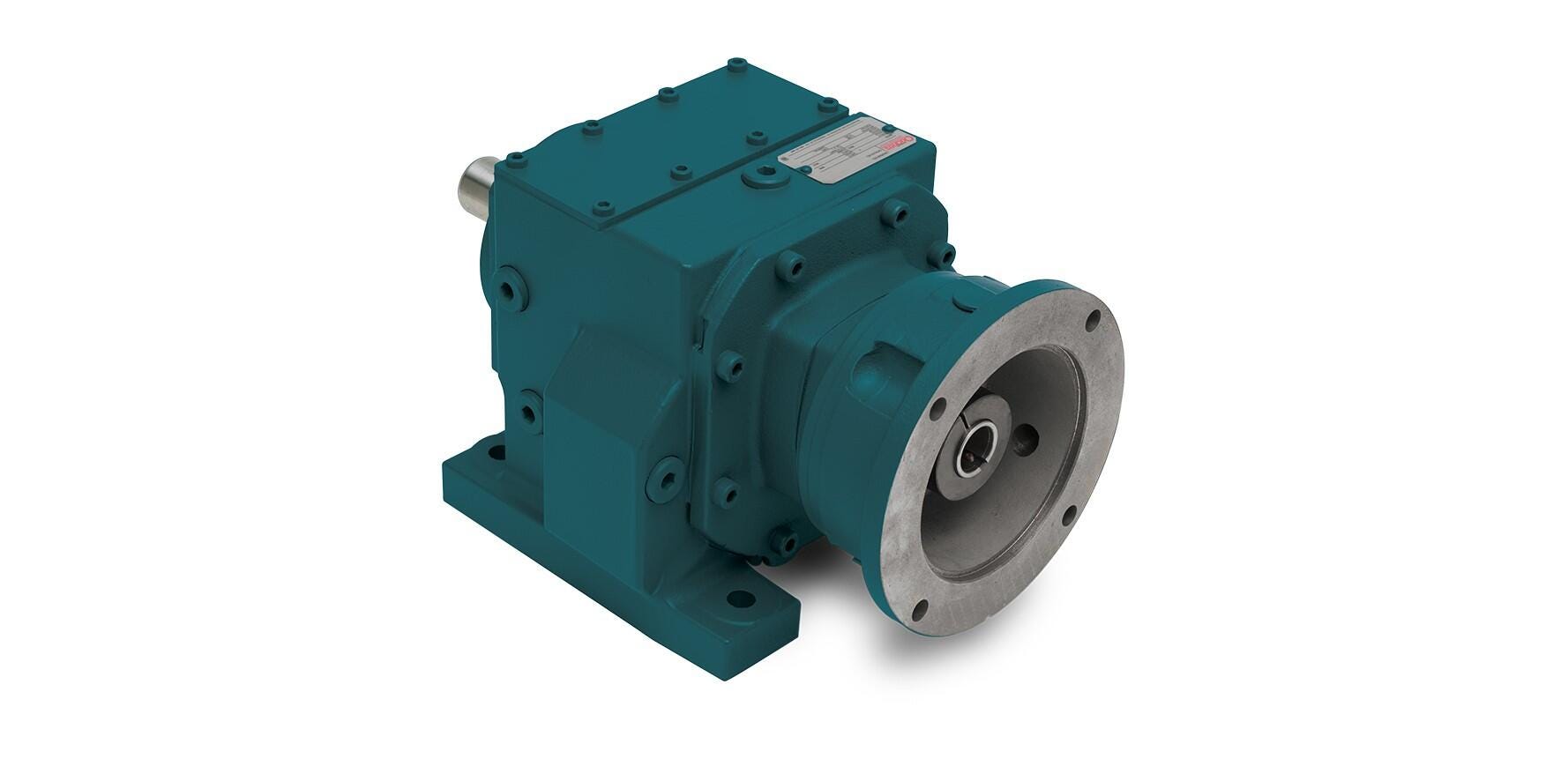

HB483 56-CC 55.92 1-1/4" SHFT - Dodge
Regular price
$1,524.31 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
| Specifications | |
|---|---|
| Base to Output Center Height | 4.53 in |
| Case Size | 48 |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 1.98 HP |
| Horsepower Rating Output | 1.98 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | Mineral Standard Temperature |
| Motor Compatibility | NEMA Motor, 56C Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Output Configuration | footed |
| Output Orientation | In-Line |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 1.25 in |
| Output Shaft Length | 2.36 in |
| Overhung Load | 1884 lbf |
| Paint Type | Standard |
| Rated Torque Output | 3983 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Actual Ratio | 55.92 |
| Nominal Ratio | 55.92 |
