HB1283 210-CC 78.06 2-7/8" SHFT - Dodge
Regular price
$9,291.02 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

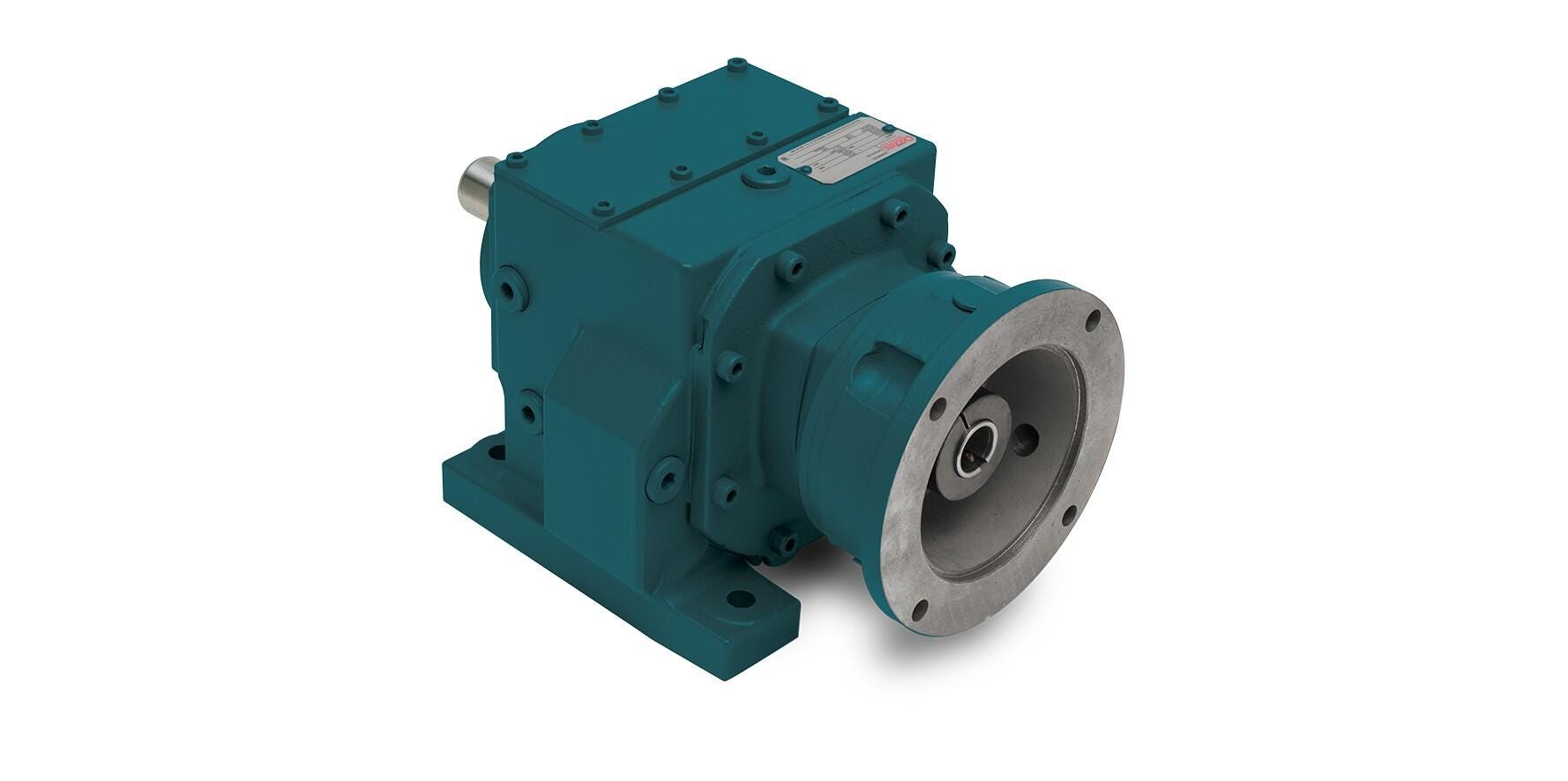

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
| Specifications | |
|---|---|
| Base to Output Center Height | 9.84 in |
| Case Size | 128 |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 16.06 HP |
| Horsepower Rating Output | 16.06 HP |
| Housing Material | Cast Iron |
| Input Connection Type | C-Face |
| Input Style | Direct Mount |
| Lubrication | Mineral Standard Temperature |
| Motor Compatibility | NEMA Motor, 210TC Frame |
| Motor Connection | Quill |
| Motor Standard | NEMA |
| Output Configuration | footed |
| Output Orientation | In-Line |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 2.875 in |
| Output Shaft Length | 5.51 in |
| Overhung Load | 8992 lbf |
| Paint Type | Standard |
| Rated Torque Output | 45140 in-lb |
| Seal Type | Single-Lip Contact |
| Suitable For Washdown | No |
| Actual Ratio | 78.06 |
| Nominal Ratio | 78.06 |
