230450 - Dodge - WSTU-SXRAG-107
Regular price
$173.46 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

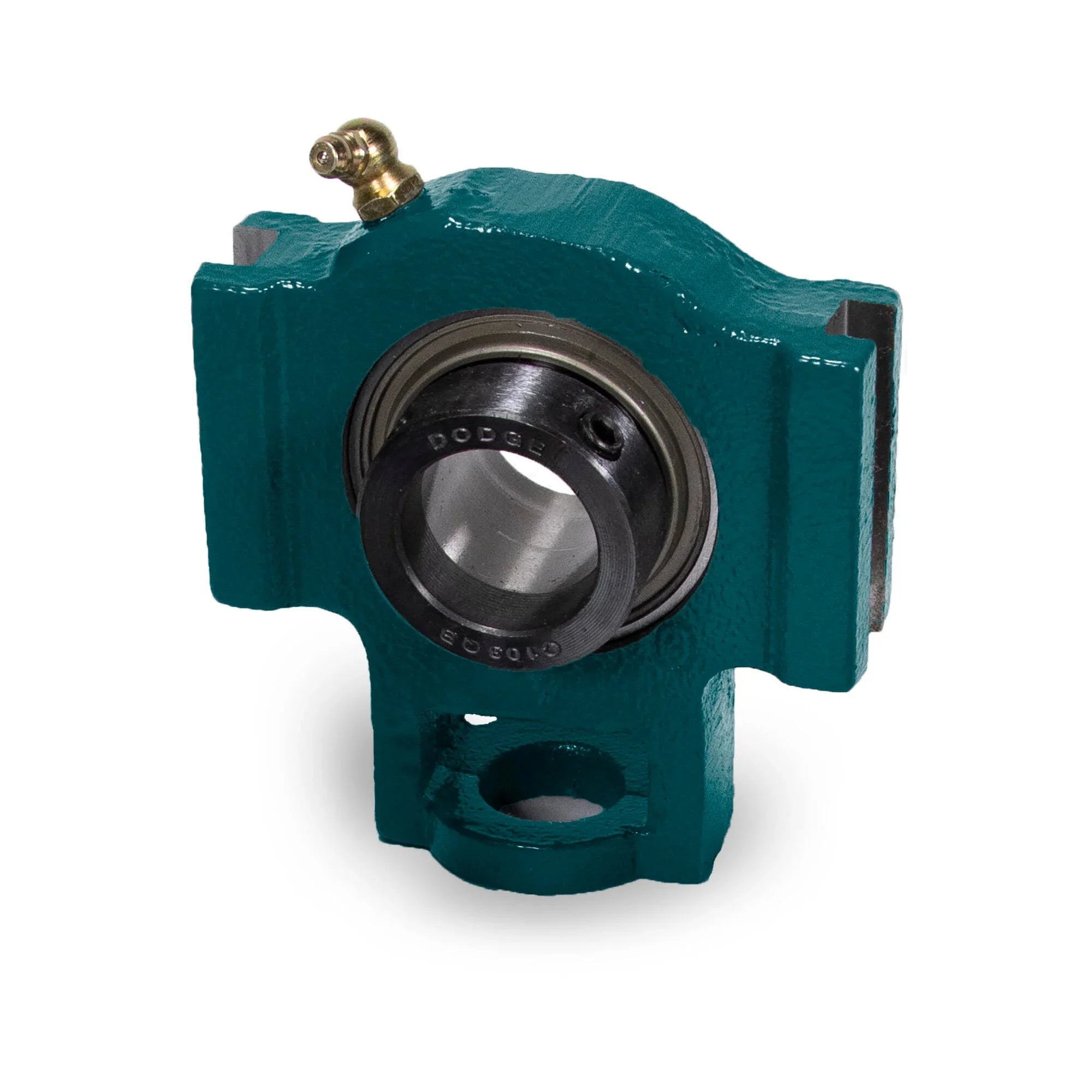

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
230450 - Dodge - WSTU-SXRAG-107
WSTU-SXRAG-107
Technical Specifications
| Ball Bearing Series | 207 Series |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bore Length | 1.9500 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/ag_duty/wstu_sxrag_hi_asmtab.prj&varset={SERIES=207},{SS=1-7/16},{PN=230450},{DESCRIPTION=WSTU-SXRAG-107},{LF=RE-LUBE},{W=3.5},{FS=WS308},{A=1.95},{B=4.87},{C=0.531},{D=2.50},{E=3.06},{F=3/4},{G=0.50},{H=0.63},{J=2.50},{K=1.44},{L=2.13},{M=3.480/3.510},{N=4.13},{R=0.67},{S=1.28},{T=1.63}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 5759 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Mobilith SHC PM 220 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Wide-Slot Take-up |
| Insert Material | Steel |
| Insert Outer Diameter | 2.8350 |
| Insert Outer Diameter (Unit) | INCH |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 3461 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | WS-308 |
