230410 - Dodge - P2B-SXRBAG-110
Regular price
$179.48 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

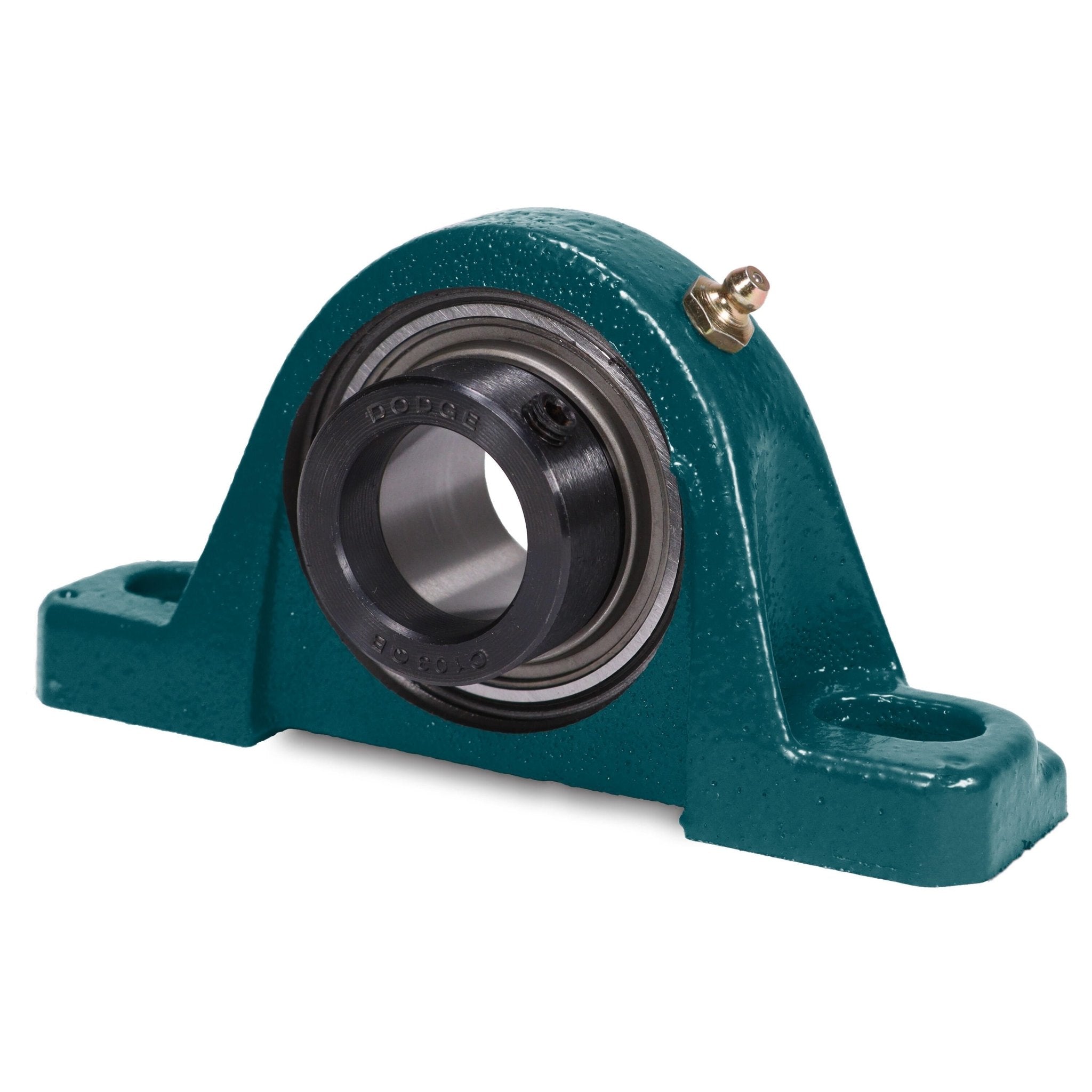

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
230410 - Dodge - P2B-SXRBAG-110
P2B-SXRBAG-110
Technical Specifications
| Ball Bearing Series | 208 Series |
| Base to Center Height | 1.9400 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Ball |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 5.8800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.1800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.1200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/ball_bearings/standard/eccentric_collar_sxr/ag_duty/p2b_sxrbag_hi_asmtab.prj&varset={SERIES=209},{SS=1-5/8},{PN=230410},{DESCRIPTION=P2B-SXRBAG-110},{WEIGHT=6.4},{A=2.13},{B=7.44},{C=2.00},{DMIN=5.50},{DMAX=6.19},{F=1/2},{G=0.90},{H=0.69},{J=4.21},{L=2.50},{M=2.06},{R=0.75},{S=1.38},{U=3.38},{V=6.76},{W=0.69},{X=0.12}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 7332 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | Mobilith SHC PM 220 |
| Housing Construction | Solid |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Insert Outer Diameter | 3.1500 |
| Insert Outer Diameter (Unit) | INCH |
| Lubrication | Grease |
| Maximum Speed | 3500 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Sensor Ready | Adapter Required |
| Shaft Attachment | Eccentric Collar |
| Shaft Diameter | 1.6250 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 4475 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | LD-20,TS-250 |
