269105 - Dodge - DCR130 13.95:1 REDUCER ASSEMBLY - INCH
Regular price
$84,240.72 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

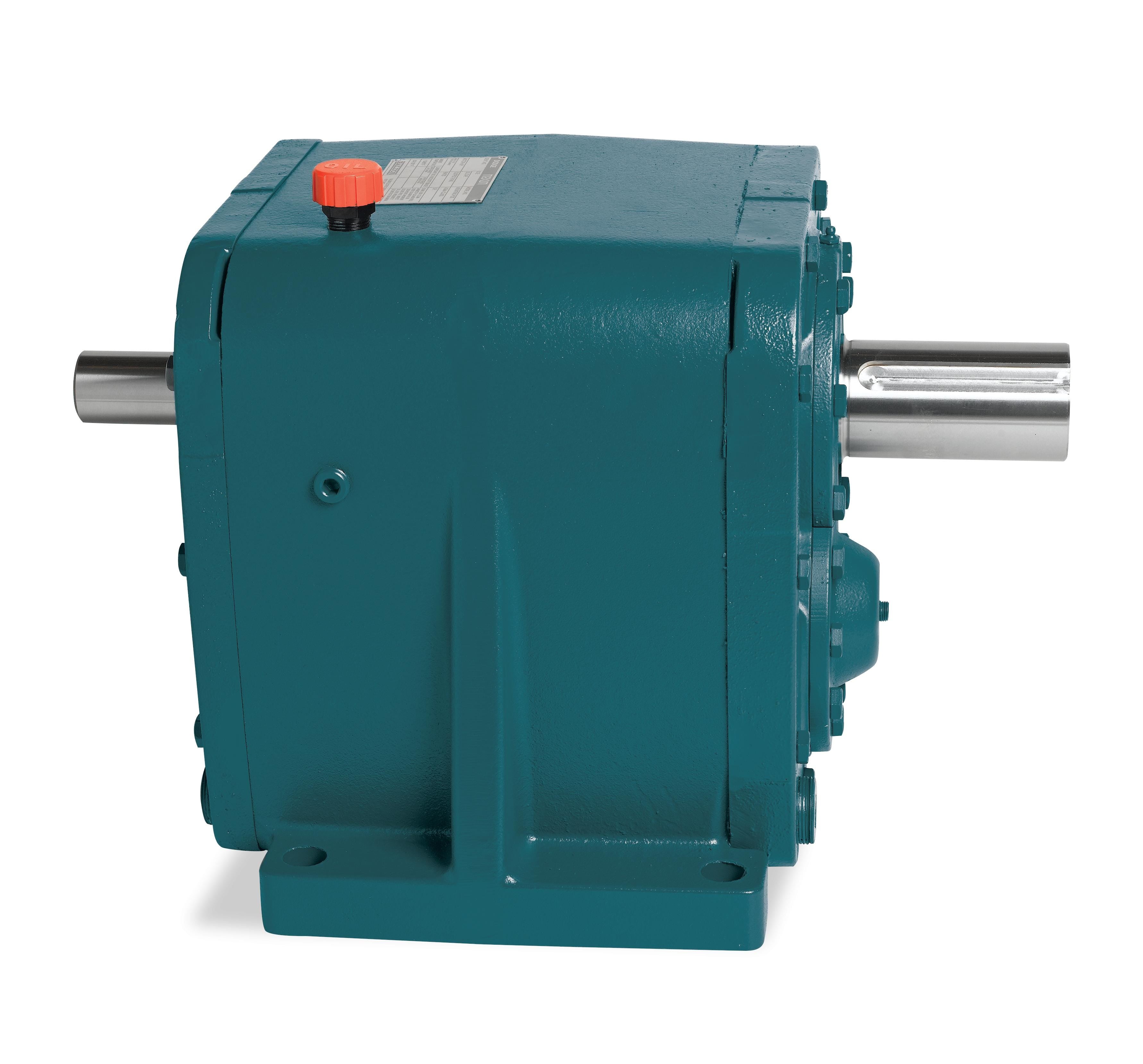

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
269105 - Dodge - DCR130 13.95:1 REDUCER ASSEMBLY - INCH
DCR130 13.95:1 REDUCER ASSEMBLY - INCH
Technical Specifications
| Case Size | 130 |
| Gearbox Component Type | Gearbox |
| Horsepower Rating Input | 1019.0000 |
| Horsepower Rating Input (Unit) | HORSEPOWER |
| Housing Material | Ductile Iron |
| Input Style | Solid Shaft |
| Input Shaft Diameter | 3.5000 |
| Input Shaft Diameter (Unit) | INCH |
| Maximum Speed | 1751 |
| Maximum Speed (Unit) | RPM |
| Output Orientation | In-Line |
| Output Style | Solid Shaft |
| Output Shaft Diameter | 6.0000 |
| Output Shaft Diameter (Unit) | INCH |
| Reduction Type | Double Stage |
| Seal Type | Two-Piece |
| Actual Ratio | 13.71 |
| Nominal Ratio | 13.95 |
