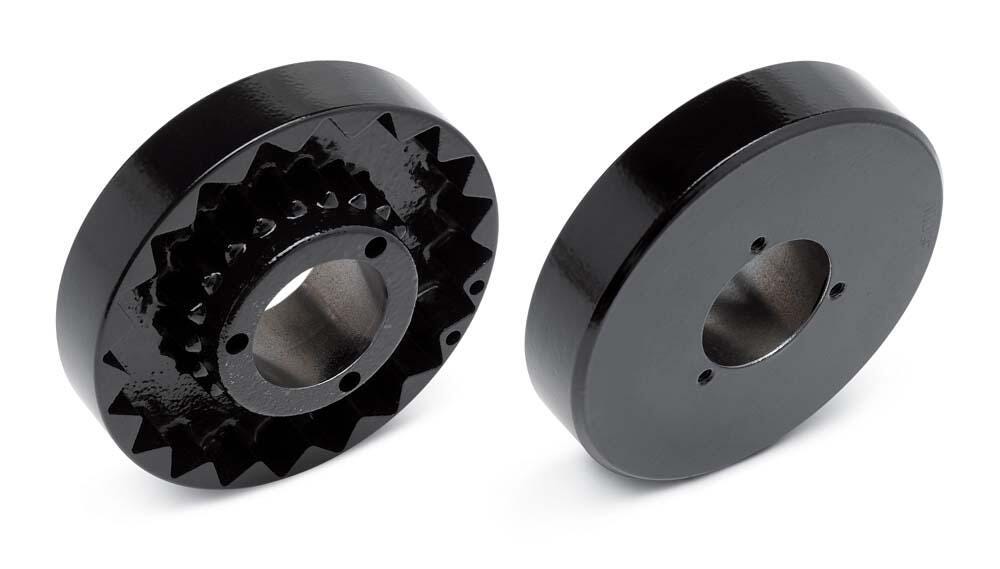

022504 - Dodge - 9B-SD FLANGE
9B-SD FLANGE
Technical Specifications
| Angular Misalignment | 1.0000 |
| Angular Misalignment (Unit) | DEGREE |
| Axial Misalignment | 0.1920 |
| Axial Misalignment (Unit) | INCH |
| Bore Diameter (Maximum) | 1.9375 |
| Bore Diameter (Maximum) (Unit) | INCH |
| Bore Diameter (Minimum) | 0.5000 |
| Bore Diameter (Minimum) (Unit) | INCH |
| Bore Length | 2.4100 |
| Bore Length (Unit) | INCH |
| Bushing Size | SD |
| Bushing Type | QD |
| Coupling Component | Flange |
| Coupling Size | 9 |
| Coupling Style | Sleeve |
| Coupling Type | Elastomeric |
| Flange Material | Cast Iron |
| Horsepower Per 100 Rat | 11.4000 |
| Horsepower Per 100 Rat (Unit) | HORSEPOWER |
| Lubrication | None |
| Maximum Speed | 3750 |
| Maximum Speed (Unit) | RPM |
| Parallel Misalignment | 0.0250 |
| Parallel Misalignment (Unit) | INCH |
| Rated Torque | 7200.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Bushed |
| Shaft Spacing | Close Coupled |
