393446 - Dodge - PX140BBS X 3535 FLG ASSY
Regular price
$1,963.65 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

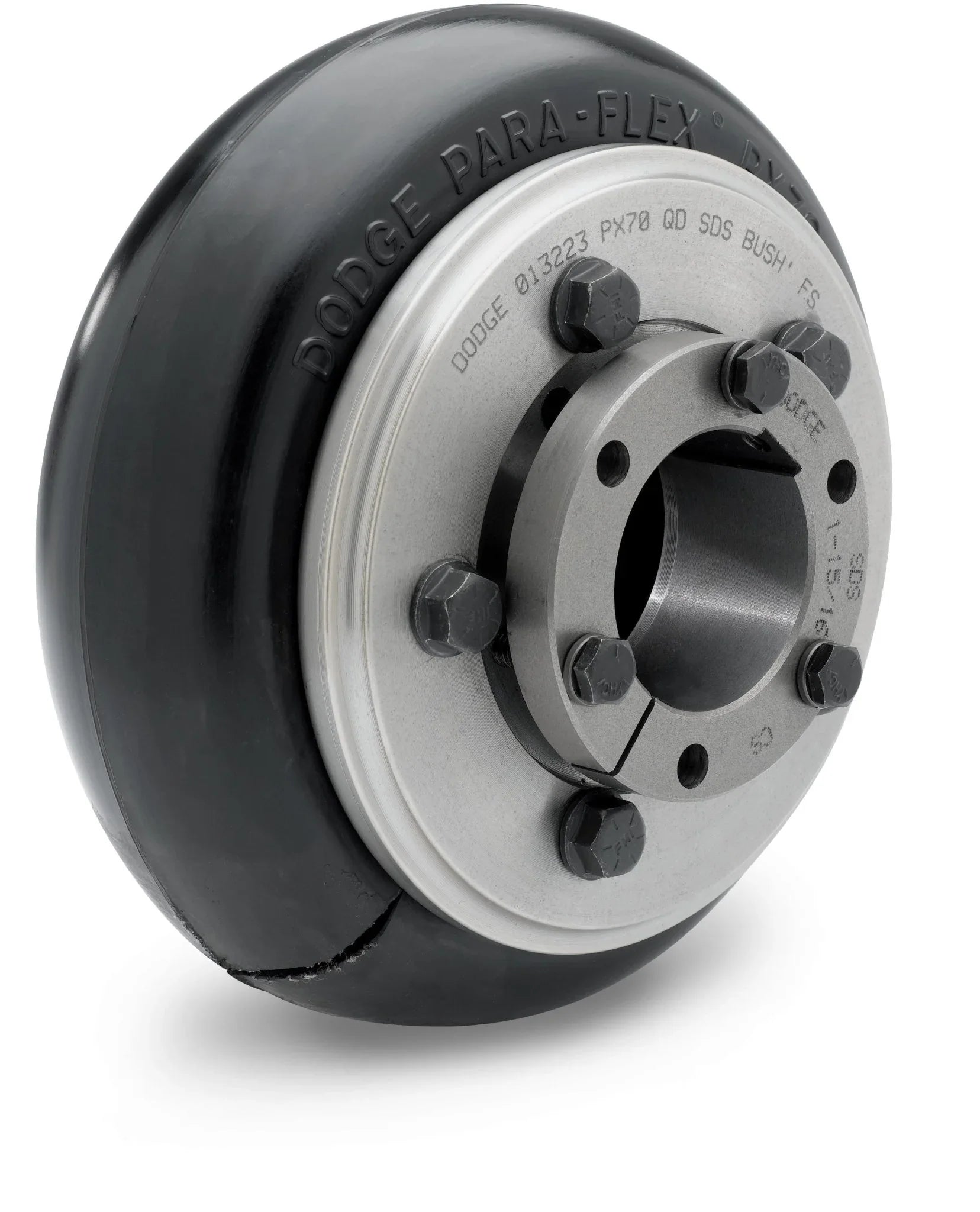

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
PX140BBS X 3535 FLG ASSY
| Specifications | |
|---|---|
| Angular Misalignment | 4° |
| Axial Misalignment | 0.3125 in |
| Bore Diameter (Maximum) | 3.9375 in |
| Bore Diameter (Minimum) | 1.1875 in |
| Bore Length | 3.5 in |
| Bushing Size | 3535 |
| Bushing Type | Taper-Lock |
| Coupling Component | Flange |
| Coupling Size | PX140 |
| Coupling Style | Tire |
| Coupling Type | Elastomeric |
| Flange Material | Cast Iron |
| Horsepower Per 100 Rat | 44 HP |
| Maximum Speed | 1840 RPM |
| Maximum Temperature Rating | 180°F |
| Minimum Temperature Rating | -45°F |
| Parallel Misalignment | 0.125 in |
| Rated Torque | 27590 in-lb |
| Shaft Attachment | Bushed |
