117523 - Dodge - 120100 X 8-1/2 KW
Regular price
$5,048.96 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

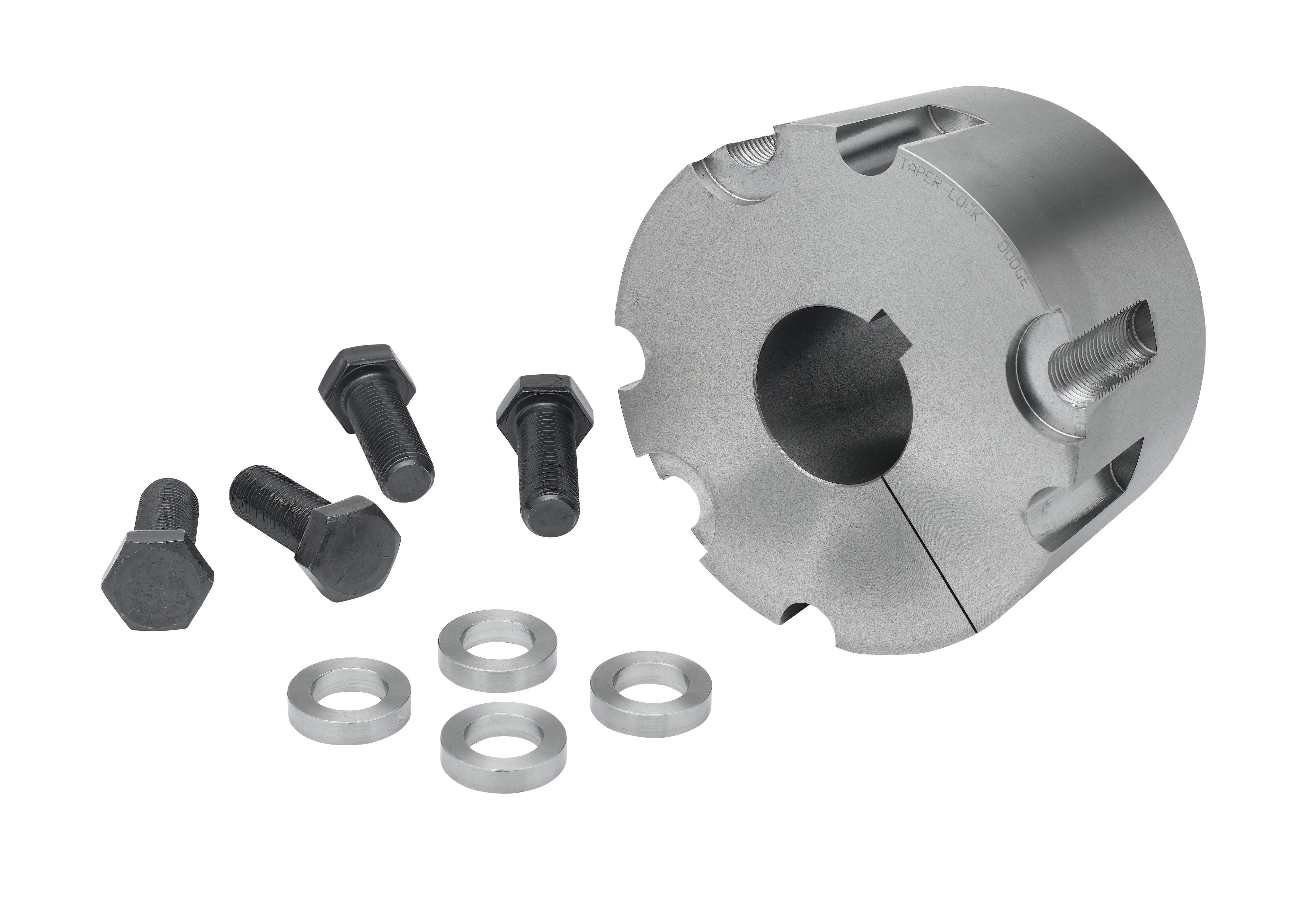

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
117523 - Dodge - 120100 X 8-1/2 KW
120100 X 8-1/2 KW
Technical Specifications
| Bore Diameter (Actual) | 8.5000 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 10.0000 |
| Bore Length (Unit) | INCH |
| Bushing Size | 120100 |
| Bushing Type | Taper-Lock |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/taper_lock_tl/taper_lock_tl_bushings/tl_b_120100_kt.prj&varset={BORE=8-1/2},{PN=117523},{WT=395},{BK=2x3/4},{SK=2x3/4},{TC=1520.000},{WTIS=13.700},{A=17.25},{B=10},{CI=26.0},{CS=23.0},{D=17.00},{FQ=6},{FS=1-1/2},{L=2.0},{M=5.38} |
| Installation Torque | 13700.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 2 X 1.5 |
| Material | Cast Iron, Class 30 |
| Number of Bolts | 6 |
| Rated Torque | 1520000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
