120525 - Dodge - E X 3-3/16-KW BUSHING
Regular price
$113.34 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

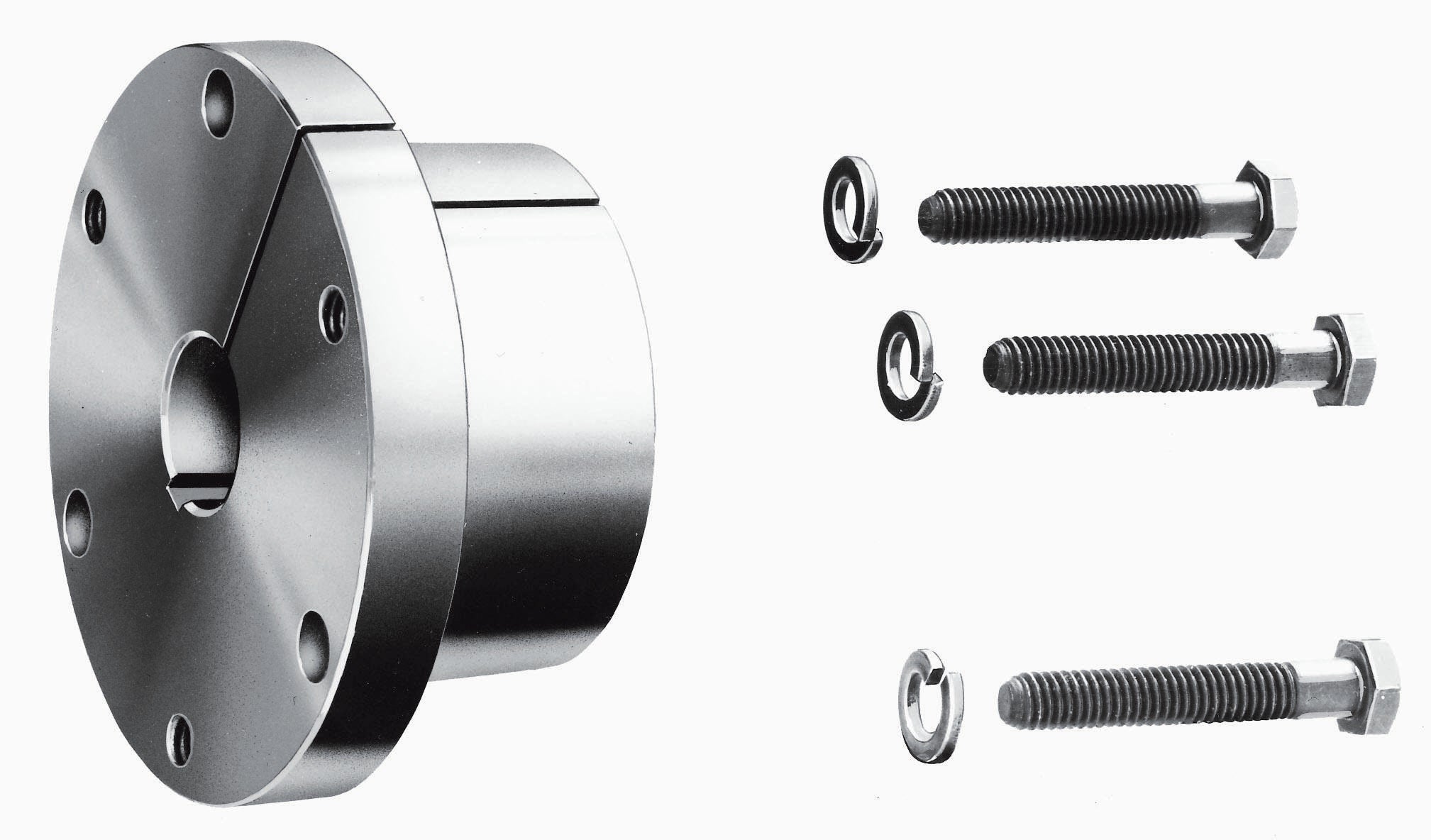

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
120525 - Dodge - E X 3-3/16-KW BUSHING
E X 3-3/16-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 3.1875 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 2.6300 |
| Bore Length (Unit) | INCH |
| Bushing Size | E |
| Bushing Type | QD |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/qd/qd_bushings/pt_qdb_e.prj&varset={PN=120525},{BS=E-3-3/16},{BORE=3-3/16},{BORE11=3.18750},{BK=3/4x1/8},{SK=3/4x1/8},{BTQ=20.000},{A=0.88},{B=3.83},{CI=7.50},{CS=6.50},{D=6.00},{E=2.75},{F=1.63},{G=0.25},{WEIGHT=9},{BC=5.00},{NS=3},{SS=1/2x2-3/4},{ST=720},{LCO=1.25},{LC=3.19},{MCO=3.13},{MC=5.06},{LRO=3.18},{LR=5.13},{MRO=4.43},{MR=6.38} |
| Installation Torque | 720.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 0.75 X 0.5 |
| Material | Ductile Iron, Class 65 |
| Number of Bolts | 3 |
| Rated Torque | 20000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
