120350 - Dodge - SH X 13/16-KW BUSHING
Regular price
$24.64 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

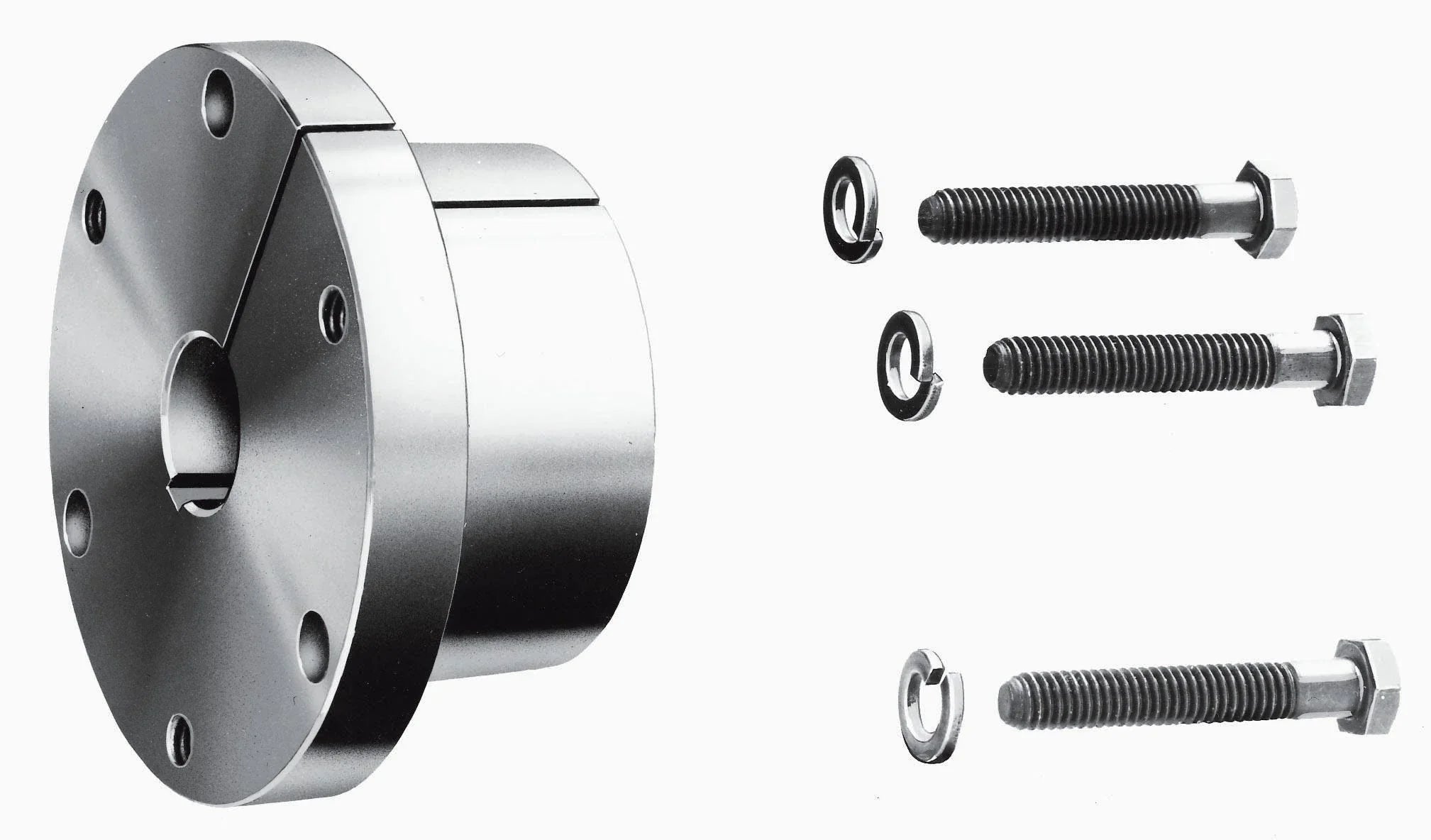

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
120350 - Dodge - SH X 13/16-KW BUSHING
SH X 13/16-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 0.8125 |
| Bore Diameter (Actual) (Unit) | INCH |
| Bore Length | 1.2500 |
| Bore Length (Unit) | INCH |
| Bushing Size | SH |
| Bushing Type | QD |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/qd/qd_bushings/pt_qdb_sh.prj&varset={PN=120350},{BS=SH-13/16},{BORE=13/16},{BK=3/16x3/32},{SK=3/16x3/32},{BTQ=3.500},{A=0.43},{B=1.88},{CI=4.75},{CS=3.00},{D=2.63},{E=1.31},{F=0.81},{G=0.12},{WEIGHT=0.9},{BC=2.25},{NS=3},{SS=1/4x1-3/8},{ST=108},{LCO=0.59},{LC=2.66},{MCO=1.56},{MC=3.63},{LRO=1.56},{LR=3.63},{MRO=2.13},{MR=4.18} |
| Installation Torque | 108.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 0.1875 X 0.1875 |
| Material | Sintered Steel |
| Number of Bolts | 3 |
| Rated Torque | 3500.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
