121153 - Dodge - H X 30MM-KW BUSHING
Regular price
$16.37 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.

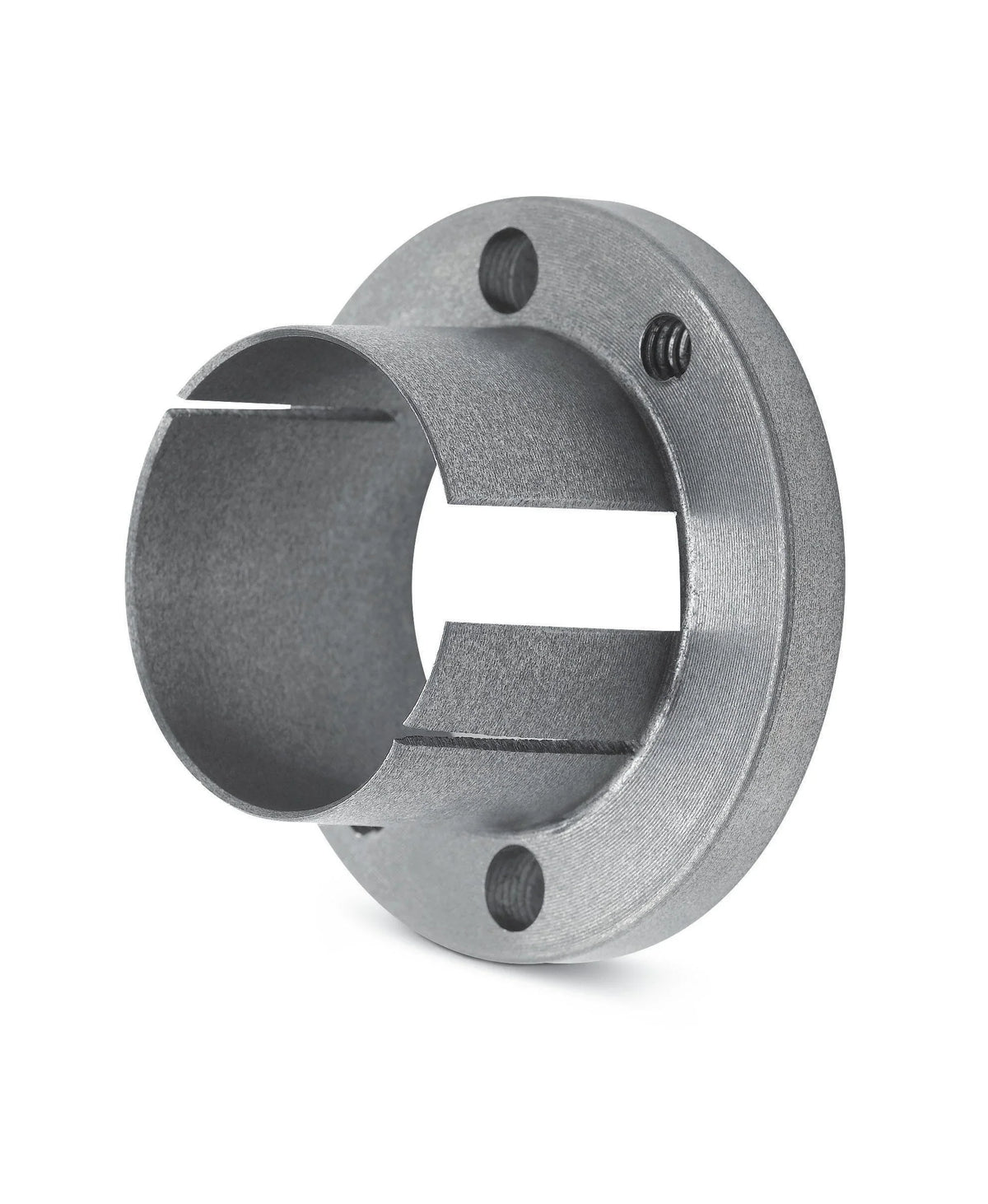

121153 - Dodge - H X 30MM-KW BUSHING
H X 30MM-KW BUSHING
Technical Specifications
| Bore Diameter (Actual) | 30.0000 |
| Bore Diameter (Actual) (Unit) | MILLIMETER |
| Bore Length | 1.2813 |
| Bore Length (Unit) | INCH |
| Bushing Size | H |
| Bushing Type | Light Duty |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/bushing_and_hubs/qd/qd_bushings/pt_qdb_h_metric.prj&varset={PN=121153},{BS=H-30},{MAT=Steel},{BORE=30},{BK=8x3.3},{SK=8x7},{BTQ=113},{A=6.4},{B=41.4},{CI=76.2},{CS=69.9},{D=63.5},{E=33.3},{F=22.2},{G=4.8},{BC=50.8},{NS=2},{SS=M6x1},{BL=22},{ST=9.6},{SDEPTH=23.830},{LCO=7.874},{LC=61.722},{MCO=26.162},{MC=80.01},{LRO=26.162},{LR=80.01},{MRO=37.084},{MR=90.932},{REF=39.0398} |
| Installation Torque | 90.0000 |
| Installation Torque (Unit) | INCH_POUND |
| Keyway Size | 8 X 7 |
| Material | Steel |
| Number of Bolts | 2 |
| Rated Torque | 1000.0000 |
| Rated Torque (Unit) | INCH_POUND |
| Shaft Attachment | Finished Bore |
