066378 - Dodge - P4B-SD-500 SPECIAL DUTY
Regular price
$20,618.30 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

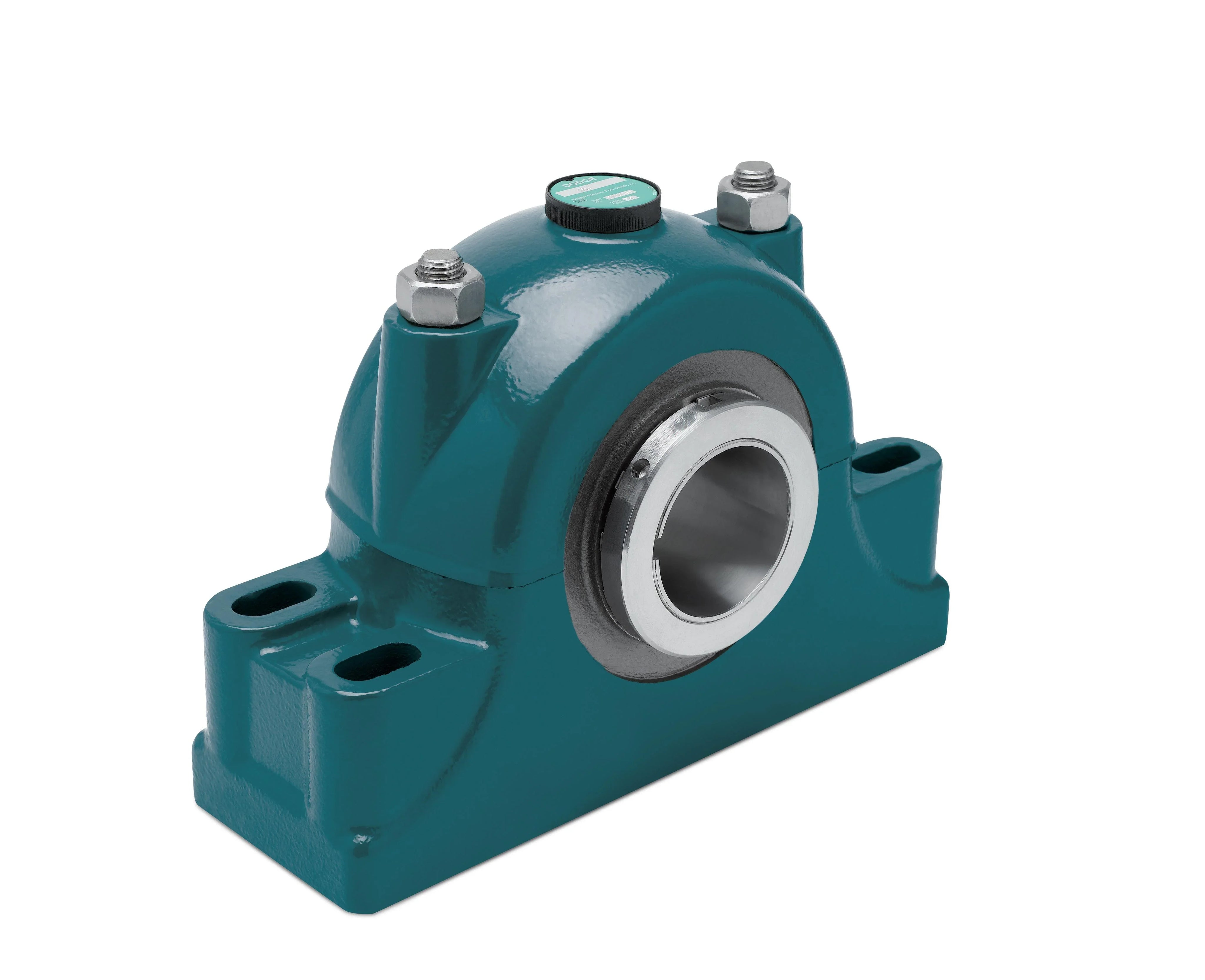

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
066378 - Dodge - P4B-SD-500 SPECIAL DUTY
P4B-SD-500
Technical Specifications
| Base to Center Height | 7.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 19.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 17.7500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 10.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/special_duty/p4b_sd_asmtab.prj&varset={SS=5},{TYPE=1},{A=10-1/2},{B=23},{C=8-1/4},{DMIN=17-3/4},{DMAX=19-3/4},{E=3-3/4},{F=1},{G=2-1/8},{H=4-1/4},{J=15-5/8},{L=8},{M=7-1/2},{P=16-1/2},{R=5-1/4},{S=5-1/4},{EXP=3/4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 43550 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Piston Ring |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 5.0000 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-500 |
