066374 - Dodge - P4B-SD-314 SPECIAL DUTY
Regular price
$11,370.17 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

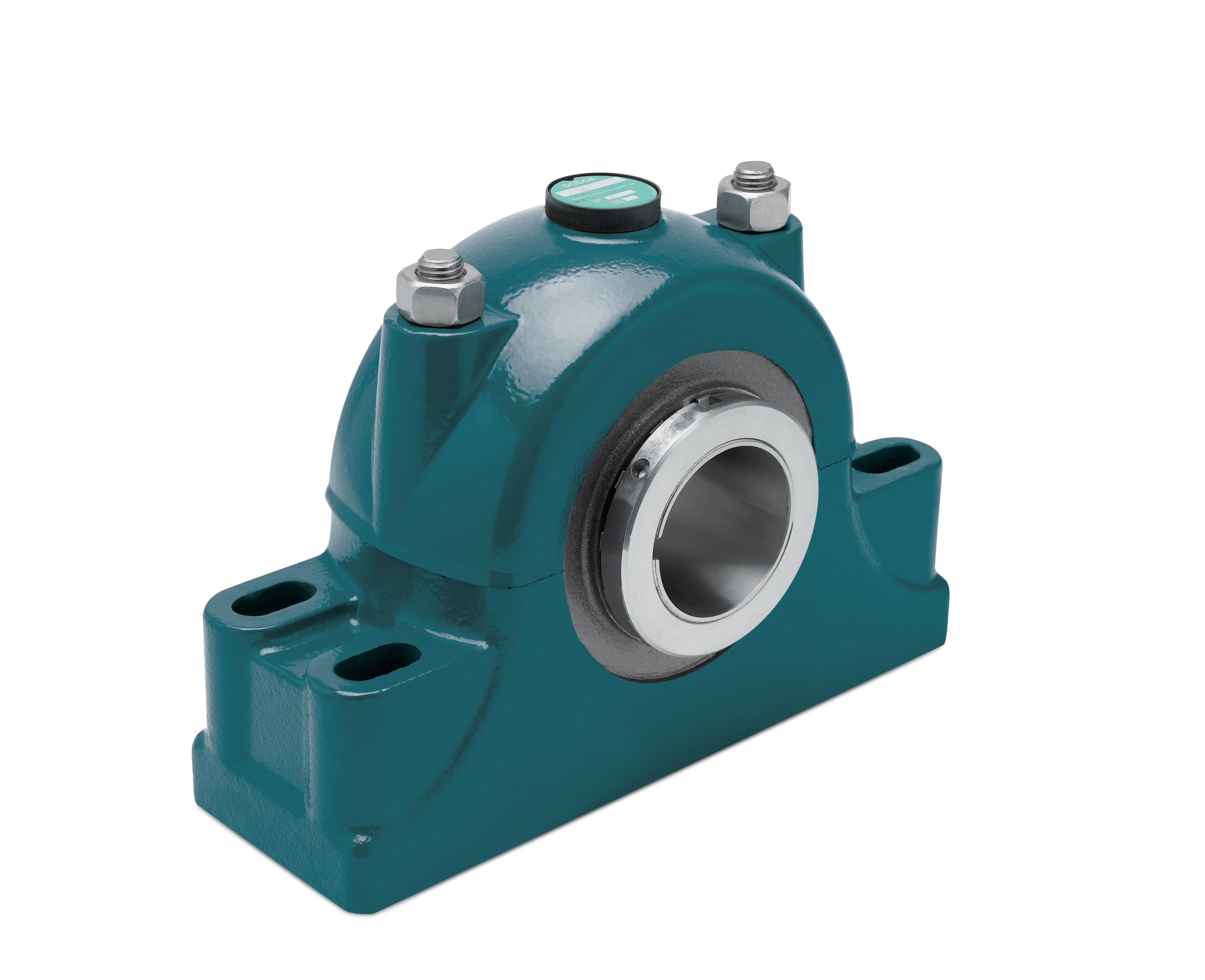

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
066374 - Dodge - P4B-SD-314 SPECIAL DUTY
P4B-SD-314
Technical Specifications
| Base to Center Height | 6.3800 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 16.0000 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.0000 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.2500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 8.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/special_duty/p4b_sd_asmtab.prj&varset={SS=3-7/8},{TYPE=1},{A=8-1/2},{B=19},{C=7},{DMIN=15},{DMAX=16},{E=3-1/4},{F=7/8},{G=1-1/2},{H=4},{J=13-3/8},{L=6-1/4},{M=6-3/8},{P=13-3/4},{R=4-1/4},{S=4-1/4},{EXP=3/4}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 35145 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1250 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Piston Ring |
| Shaft Attachment | Tapered Adapter |
| Shaft Diameter | 3.8750 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-400 |
