065300 - Dodge - P4B-C-415 TYPE C
Regular price
$18,054.55 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

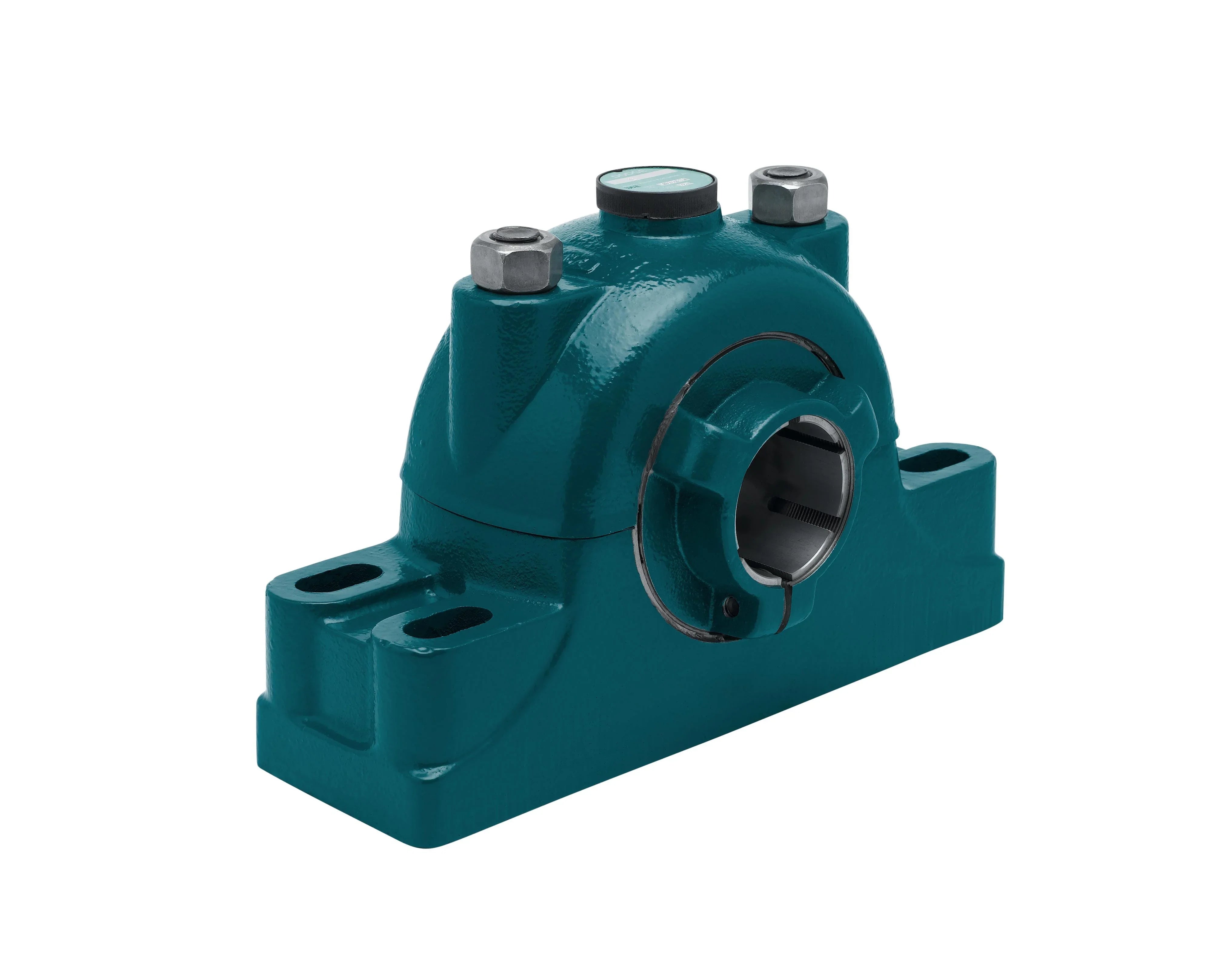

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
P4B-C-415
Dodge Mounted Bearing Resources
Mounted Bearings Solution Guide (PDF)Mounted Bearings Nomenclature Chart (PDF)Mounted Bearings Catalog (PDF)| Specifications | |
|---|---|
| Base to Center Height | 7.5 in |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 1 in |
| Bolt to Bolt (Max) | 19.75 in |
| Bolt to Bolt (Min) | 17.75 in |
| Bolt Width | 3.75 in |
| Bore Length | 11.25 in |
| Dynamic Load Capacity | 35900 lbf |
| Expansion Capability | Non-Expansion (Fixed) |
| Greasable | Yes |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 750 RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 4.9375 in |
| Static Load Capacity | 344000 lbf |
| Take-Up Frame Size | HD-500 |
