065295 - Dodge - P2B-C-211 TYPE C
Regular price
$4,300.35 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

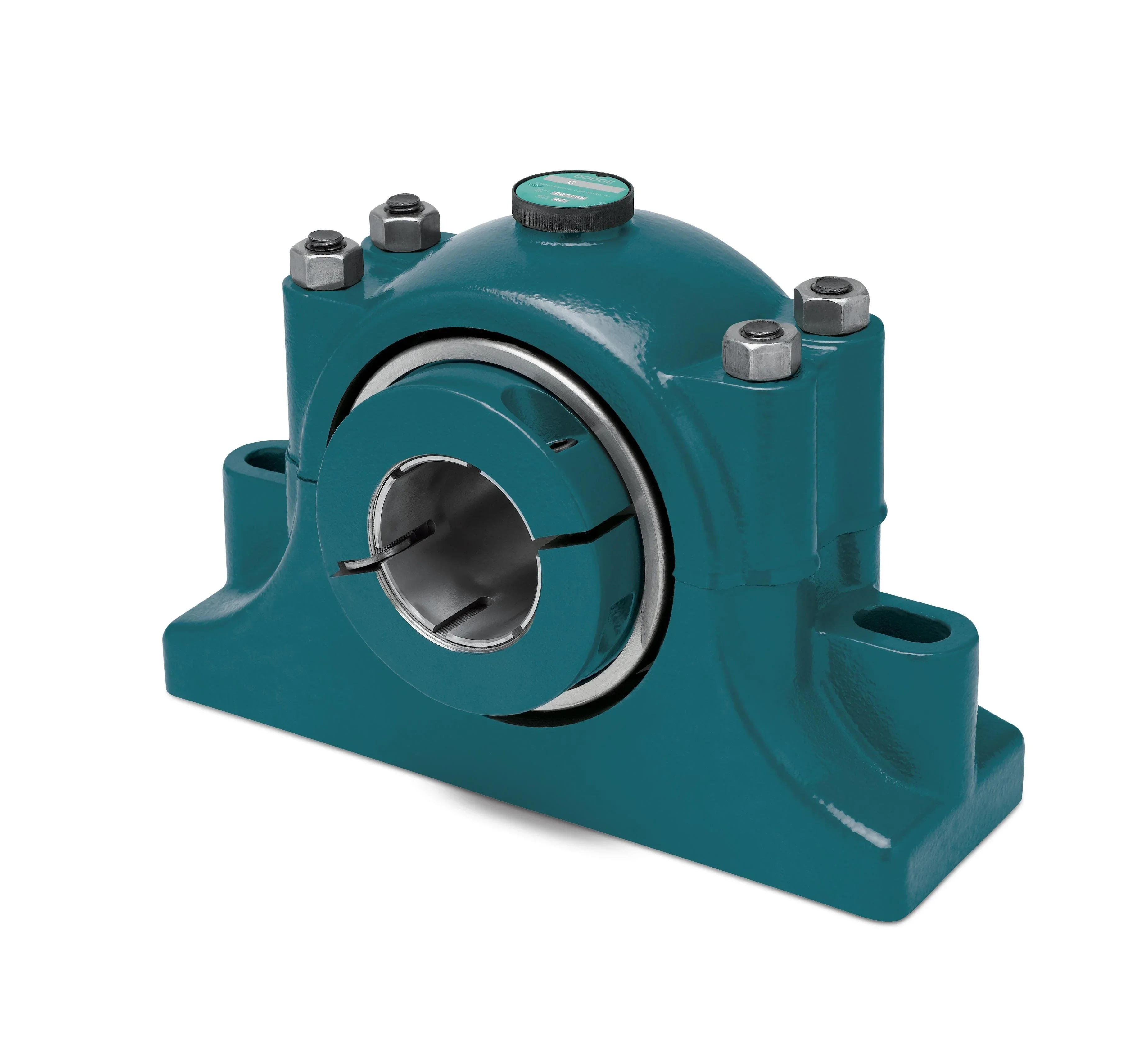

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
065295 - Dodge - P2B-C-211 TYPE C
P2B-C-211
Technical Specifications
| Base to Center Height | 4.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Type | Tapered Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 12.3800 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 11.1300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 6.5000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/tapered_roller_bearings/type_c/p2b_c_asmtab.prj&varset={SS=2-11/16},{TYPE=1},{A=6-1/2},{B=14-1/4},{C=4-3/4},{DMIN=11-1/8},{DMAX=12-3/8},{F=3/4},{G=1-1/2},{H=3-3/4},{J=9-7/8},{L=5-7/16},{M=4-3/4},{P=9-7/8},{EXP=3/4}&hidePortlets=searchHeader |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Split |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1750 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Clamp Collar |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Take-Up Frame Size | HD-300 |
