072289 - Dodge - SFC-IP-204R
Regular price
$828.96 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

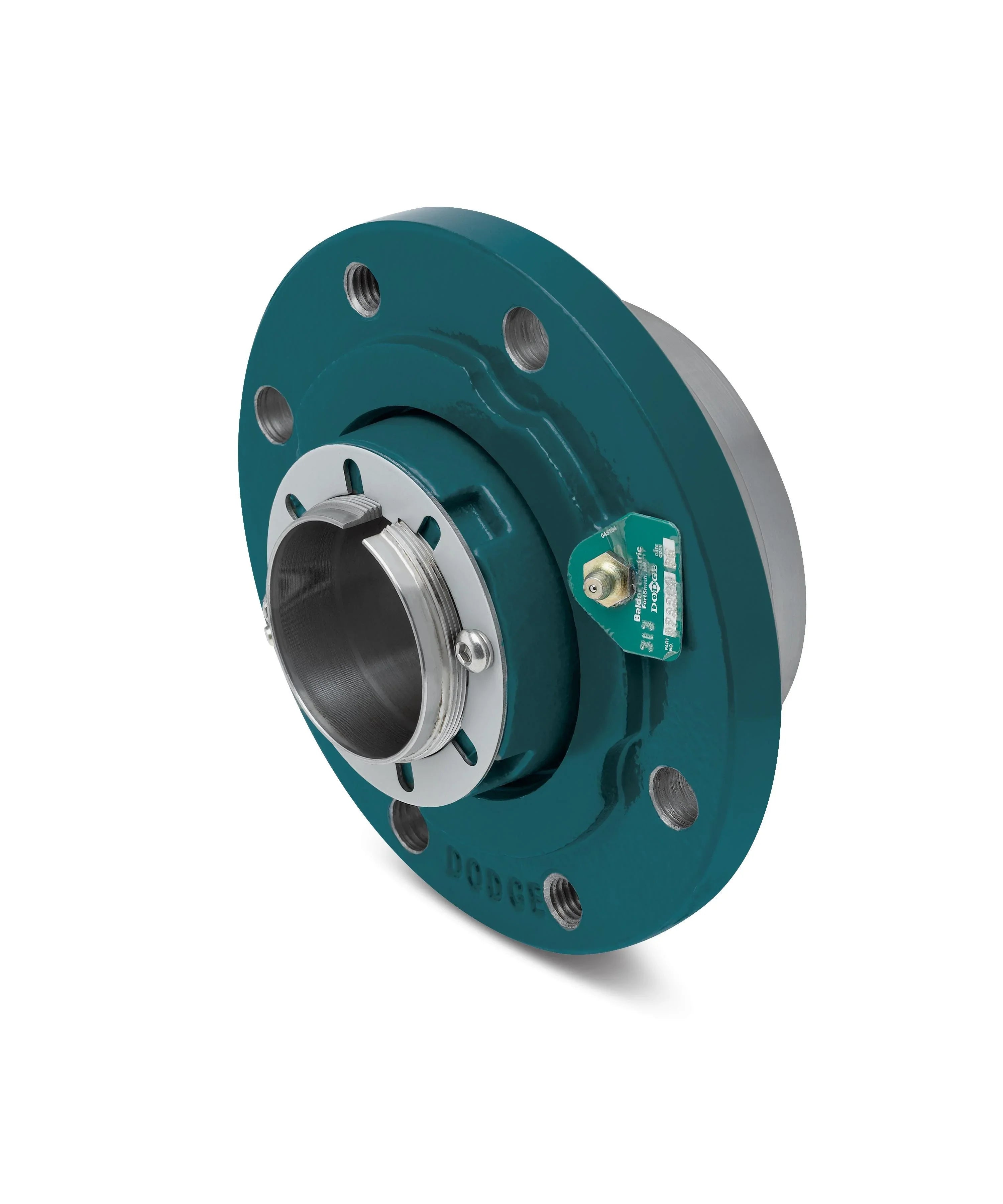

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
072289 - Dodge - SFC-IP-204R
SFC-IP-204R
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 6.0000 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bore Length | 3.0300 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/sfc_ip_102_204_r_asmtab.prj&varset={SS=2-1/4},{TYPE=N},{ST=Contact Seal},{A=3.03},{B=7.13},{C=2.42},{D=4.25},{DD=6.0000},{E=1.02},{F=0.5000},{G=1.80},{H=0.56},{K=5.000},{L=3.50},{M=0.5000},{N=3.34},{P=1.23},{Q=1.55},{X=0.25},{Y=0.025},{Z=2.59}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 27000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Type | Piloted Flange |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 3000 |
| Maximum Speed (Unit) | RPM |
| Pilot Depth | 1.4200 |
| Pilot Depth (Unit) | INCH |
| Pilot Diameter | 5.0000 |
| Pilot Diameter (Unit) | INCH |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 29000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
