071933 - Dodge - SEP4B-IP-308RE
Regular price
$1,943.04 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

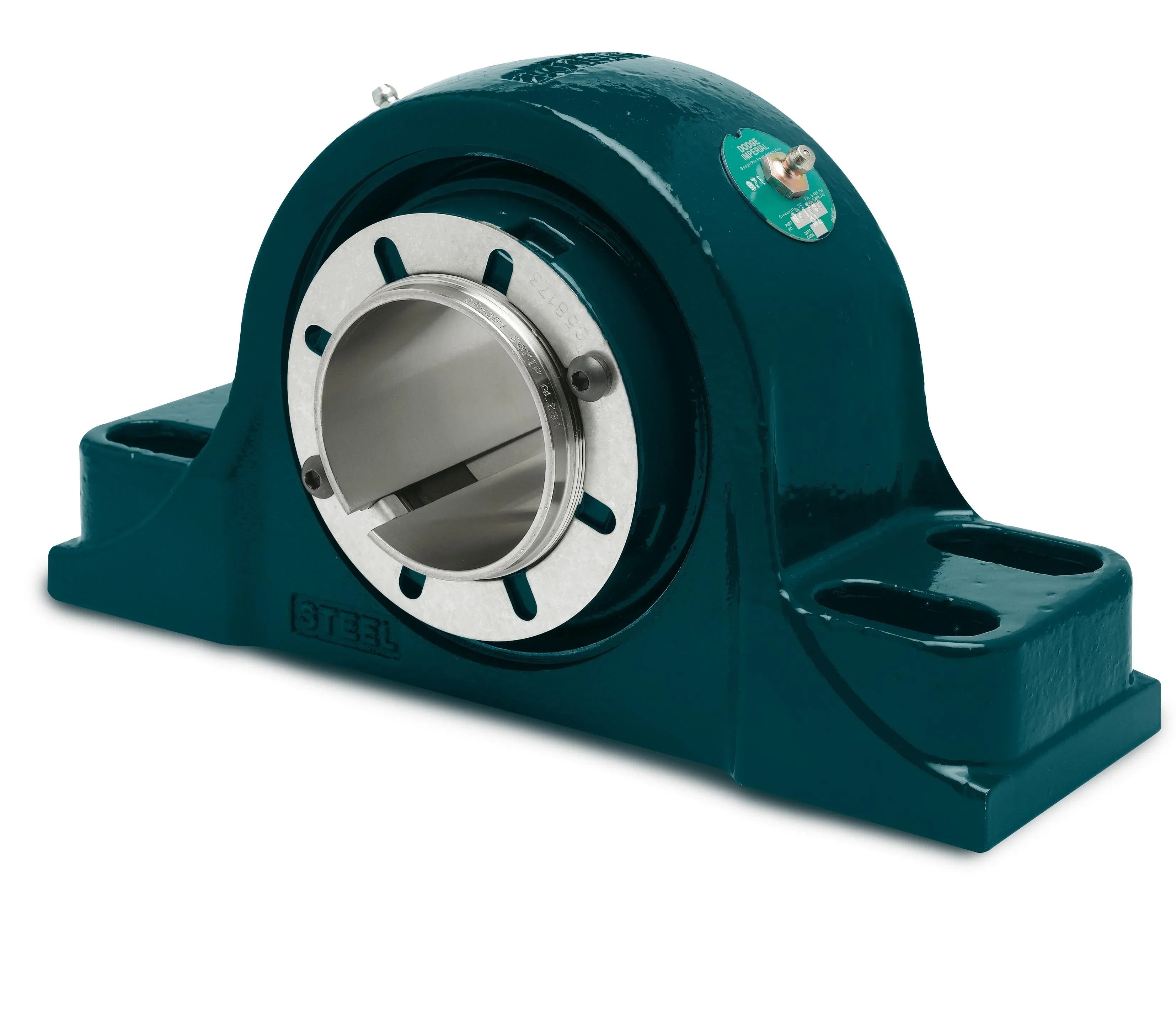

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071933 - Dodge - SEP4B-IP-308RE
SEP4B-IP-308RE
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.2500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.3800 |
| Bolt Width (Unit) | INCH |
| Bore Length | 4.1700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/sep4b_ip_204_500_r_asmtab.prj&varset={SS=3-1/2},{TYPE=E},{ST=Contact Seal},{A=4.17},{B=13.63},{C=3.75},{DMIN=9.25},{DMAX=11.25},{E=2.38},{F=3/4},{G=1.88},{H=2.25},{J=7.69},{L=5.000},{M=3.750},{R=1.54},{S=2.63},{X=0.25},{Y=0.025},{Z=4.05}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Steel |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1825 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.5000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-350 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
