071810 - Dodge - SP2B-S2-200RE
Regular price
$551.23 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

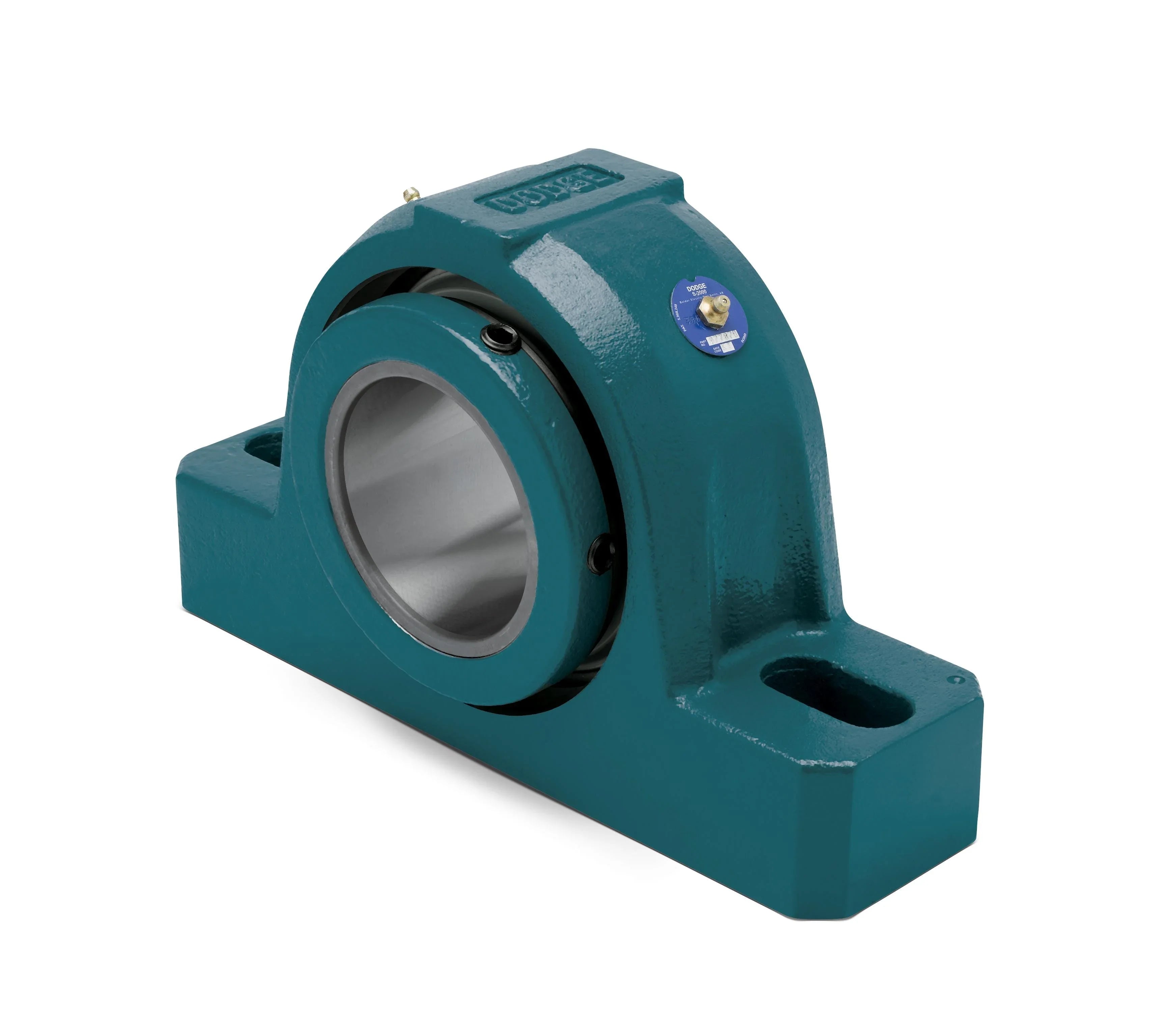

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071810 - Dodge - SP2B-S2-200RE
SP2B-S2-200RE
Technical Specifications
| Base to Center Height | 2.2500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 6.3600 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 5.9300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 2.8400 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/sp2b_s2_106_315r_asmtab.prj&varset={SS=2},{TYPE=E},{A=2.84},{B=8.38},{C=2.44},{DMIN=5.93},{DMAX=6.36},{F=5/8},{G=0.97},{H=1-5/16},{J=4-9/16},{L=3-7/16},{M=2-1/4},{R=55/64},{S=1-63/64},{X=1/4},{Y=0.020},{Z=2-19/64},{CS=3/8-16}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 22000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2200 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 24000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
