071802 - Dodge - SP2B-S2-307R
Regular price
$1,542.82 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

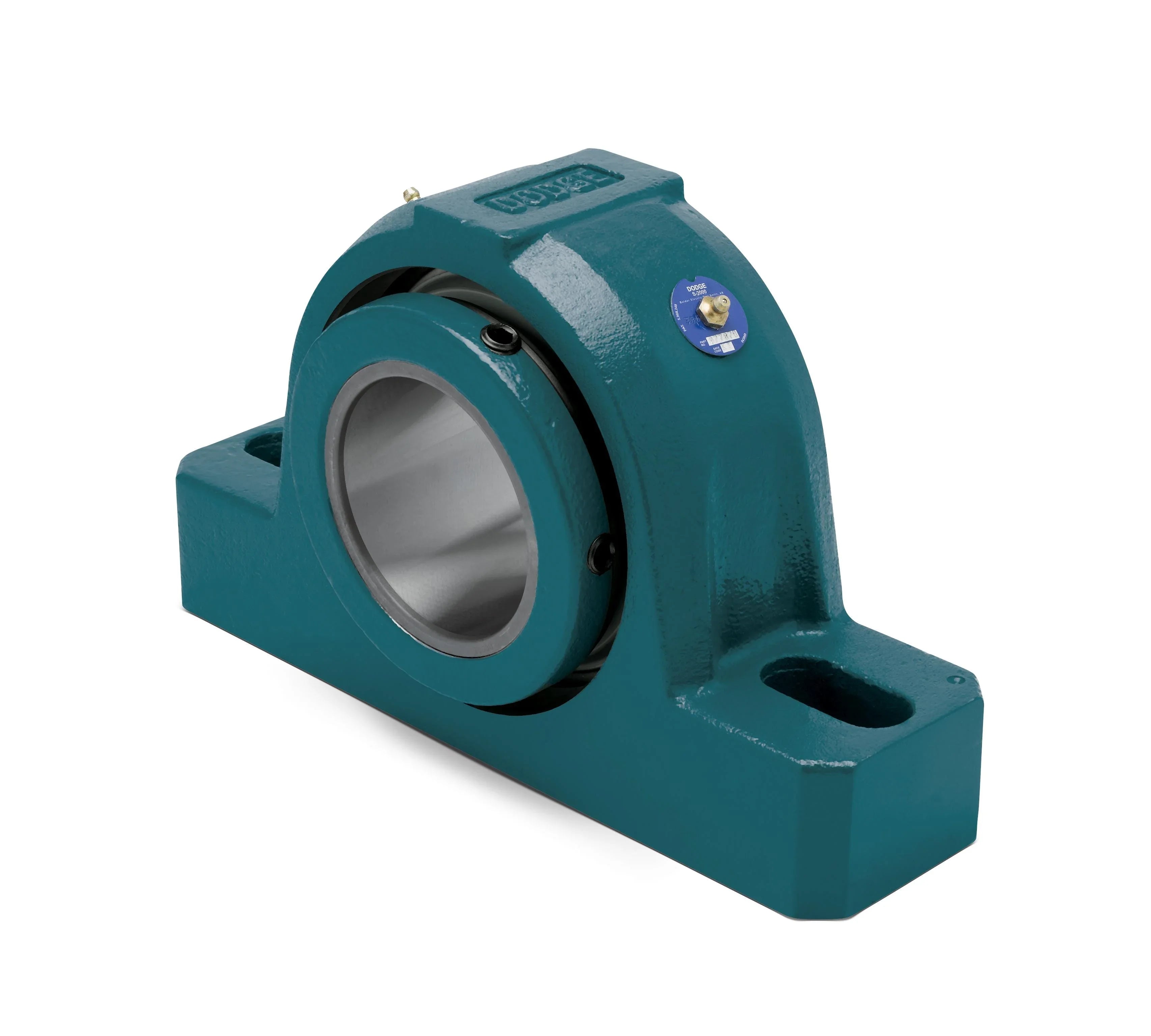

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071802 - Dodge - SP2B-S2-307R
SP2B-S2-307R
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 10.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.0200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/sp2b_s2_106_315r_asmtab.prj&varset={SS=3-7/16},{TYPE=N},{A=4.02},{B=13.00},{C=3.41},{DMIN=9.25},{DMAX=10.75},{F=7/8},{G=1.75},{H=2-1/4},{J=7-1/2},{L=5-1/2},{M=3-3/4},{R=1-31/64},{S=2-33/64},{X=1/4},{Y=0.025},{Z=4-3/64},{CS=1/2-13}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Steel |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1280 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 3.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
