071707 - Dodge - SP4B-IP-207R
Regular price
$782.76 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

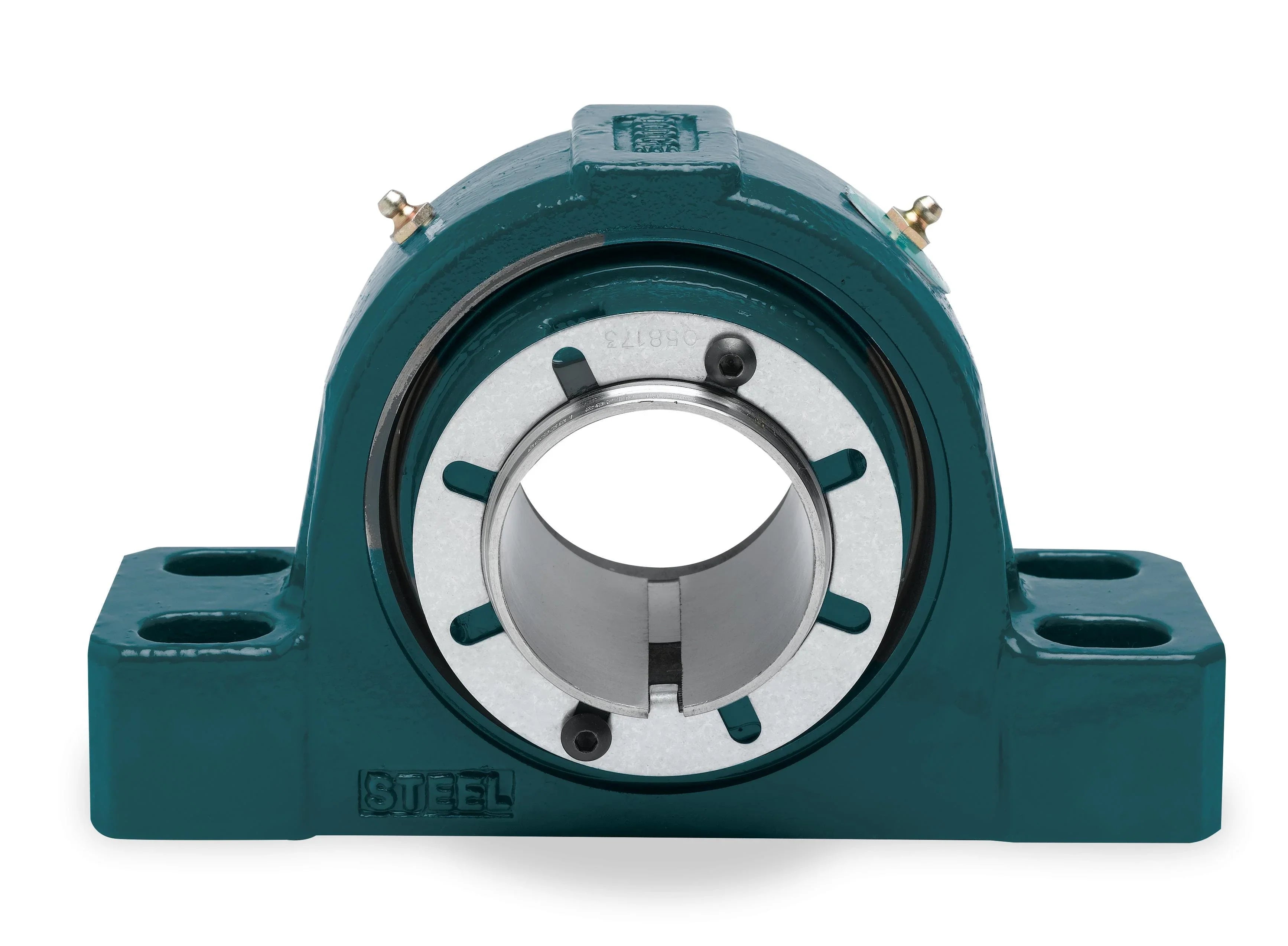

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071707 - Dodge - SP4B-IP-207R
SP4B-IP-207R
Technical Specifications
| Base to Center Height | 2.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 7.6300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 6.8800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 1.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 3.4200 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/sp4b_ip_206_500_r_asmtab.prj&varset={SS=2-7/16},{TYPE=N},{ST=Contact Seal},{A=3.42},{B=9.25},{C=3.00},{DMIN=6.88},{DMAX=7.63},{E=1.75},{F=1/2},{G=1.06},{H=1.63},{J=5.61},{L=3.88},{M=2.75},{R=1.17},{S=2.25},{X=1/4},{Y=0.025},{Z=2.94},{HIDEN=1}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 39000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | S-2000 |
| Housing Material | Steel |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2400 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 47500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-200 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
