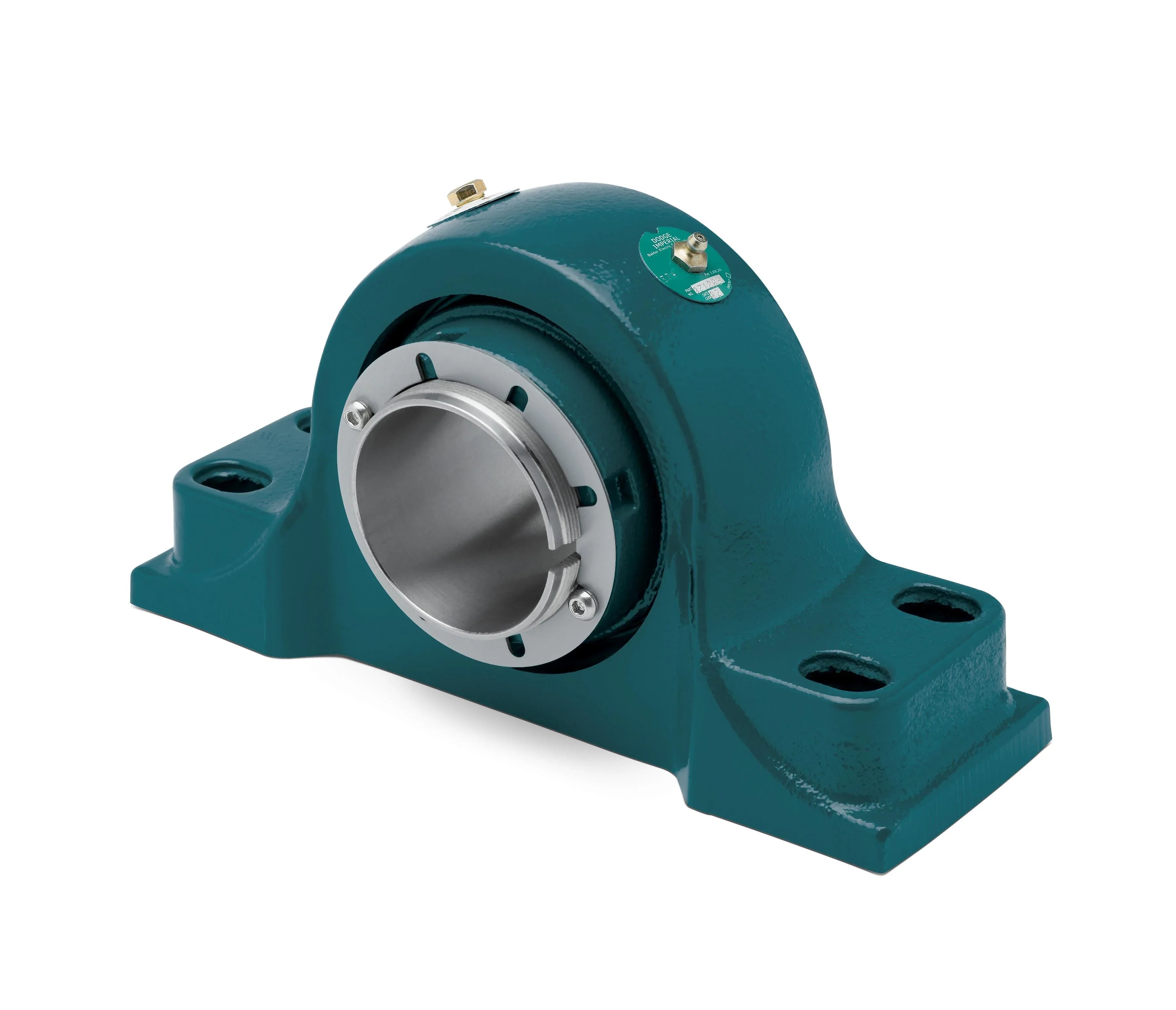

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071613 - Dodge - EP4B-IP-600R
EP4B-IP-600R
Technical Specifications
| Base to Center Height | 6.6900 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 1.0000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 19.1200 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 17.3800 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 3.7500 |
| Bolt Width (Unit) | INCH |
| Bore Length | 7.0800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/ep4b_hi_cs_asmtab.prj&varset={SS=6},{TYPE=N},{ST=Contact Seal},{A=7.403},{B=22},{C=6.25},{DMIN=17.38},{DMAX=19.12},{E=3.75},{F=1},{G=2},{H=3.25},{J=13.19},{L=10.25},{M=6.69},{R=2.66},{S=4.65},{X=0.38},{Y=0.036},{Z=7.02}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 220000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 975 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 6.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 315000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483208080 |
| ECCN | ear99 |
