071456 - Dodge - EP4B-S2-415L
Regular price
$3,421.44 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

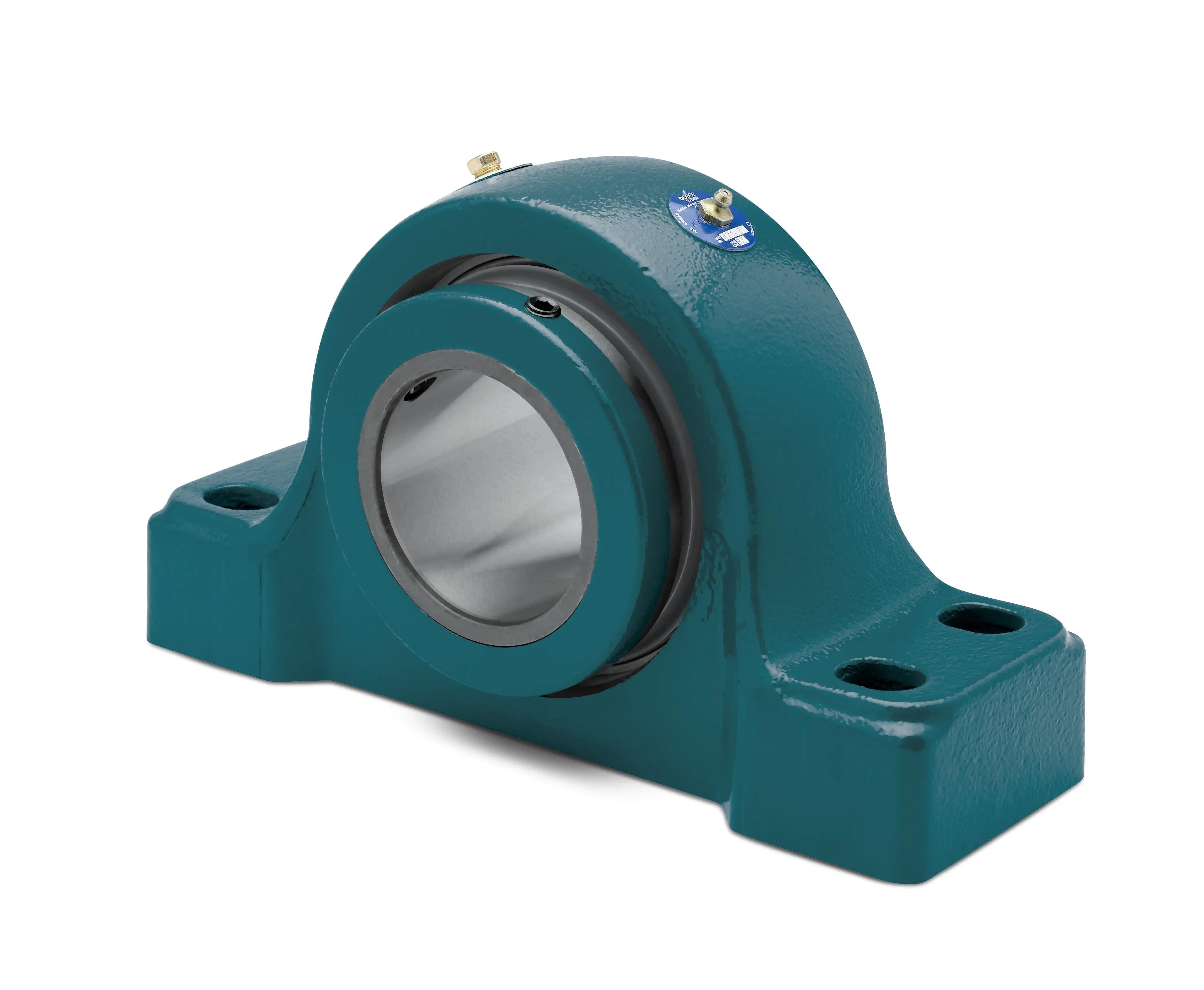

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071456 - Dodge - EP4B-S2-415L
EP4B-S2-415L
Technical Specifications
| Base to Center Height | 5.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 15.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.8700 |
| Bolt Width (Unit) | INCH |
| Bore Length | 6.9100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/ep4b_s2_ls_asmtab.prj&varset={SS=4-15/16},{TYPE=N},{A=6.91},{B=18.5},{C=5.13},{DMIN=15.25},{DMAX=15.75},{E=2.87},{F=7/8},{G=1.25},{H=3},{J=11.16},{L=7.45},{M=5.5},{R=3.29},{S=3.62},{X=0.38},{Y=N/A},{Z=N/A},{CS=5/8-11},{TORQUE=1325}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 146000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1020 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 4.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 196000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TS-500 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
