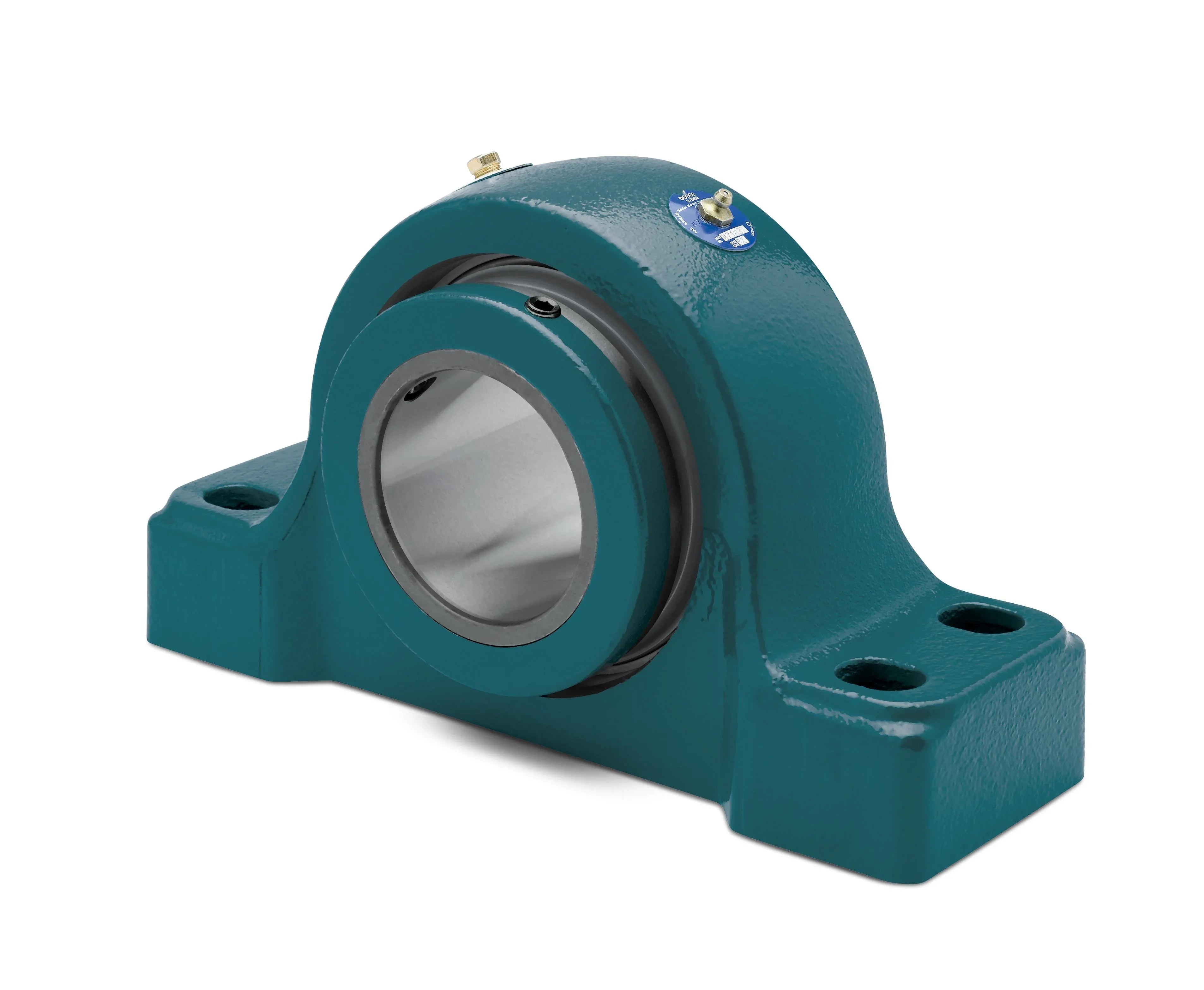

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071449 - Dodge - EP4B-S2-207L
EP4B-S2-207L
Technical Specifications
| Base to Center Height | 2.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.6250 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 8.6900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 8.3100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 1.8700 |
| Bolt Width (Unit) | INCH |
| Bore Length | 3.2000 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/ep4b_s2_ls_asmtab.prj&varset={SS=2-7/16},{TYPE=N},{A=3.2},{B=10.5},{C=3.49},{DMIN=8.31},{DMAX=8.69},{E=1.87},{F=5/8},{G=0.87},{H=1.63},{J=5.72},{L=3.86},{M=2.75},{R=1.2},{S=2},{X=0.25},{Y=0.025},{Z=2.94},{CS=3/8-16},{TORQUE=290}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 39000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2250 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.4375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 47500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TS-350 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
