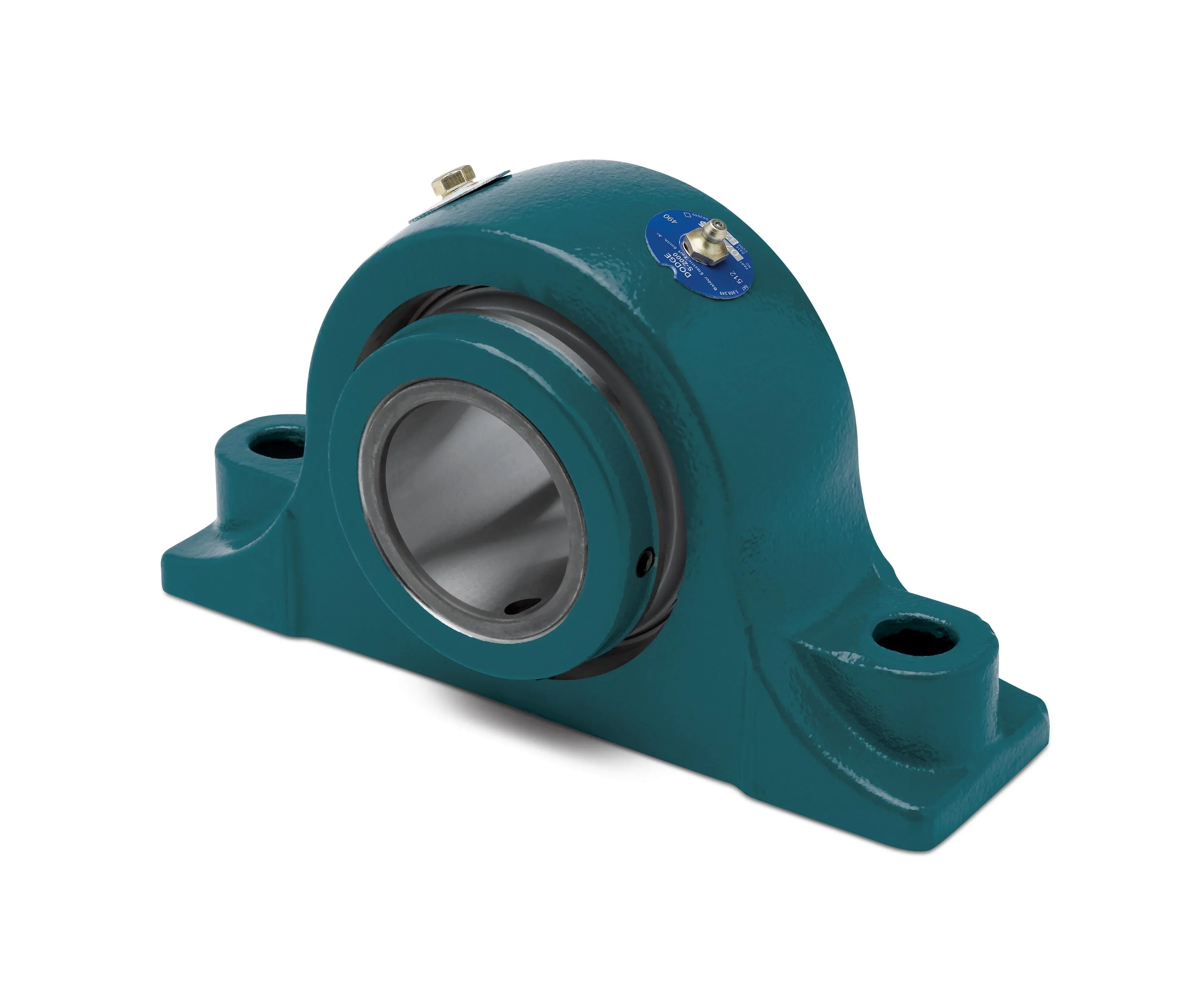

071397 - Dodge - EP2B-S2-215R
Regular price
$726.53 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.
Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071397 - Dodge - EP2B-S2-215R
EP2B-S2-215R
Technical Specifications
| Base to Center Height | 3.1300 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.7500 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 9.6900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 9.3100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 3.5900 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/setscrew_s_2000/ep2b_s2_cs_asmtab.prj&varset={SS=2-15/16},{TYPE=N},{A=3.59},{B=12},{C=2.99},{DMIN=9.31},{DMAX=9.69},{F=3/4},{G=1.07},{H=1.88},{J=6.32},{L=4.61},{M=3.125},{R=1.34},{S=2.25},{X=0.25},{Y=0.025},{Z=3.47},{CS=1/2-13},{TORQUE=620}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 41500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1490 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Setscrew |
| Shaft Diameter | 2.9375 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 53000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TS-400 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
