071317 - Dodge - EF4B-IP-111RE
Regular price
$376.20 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

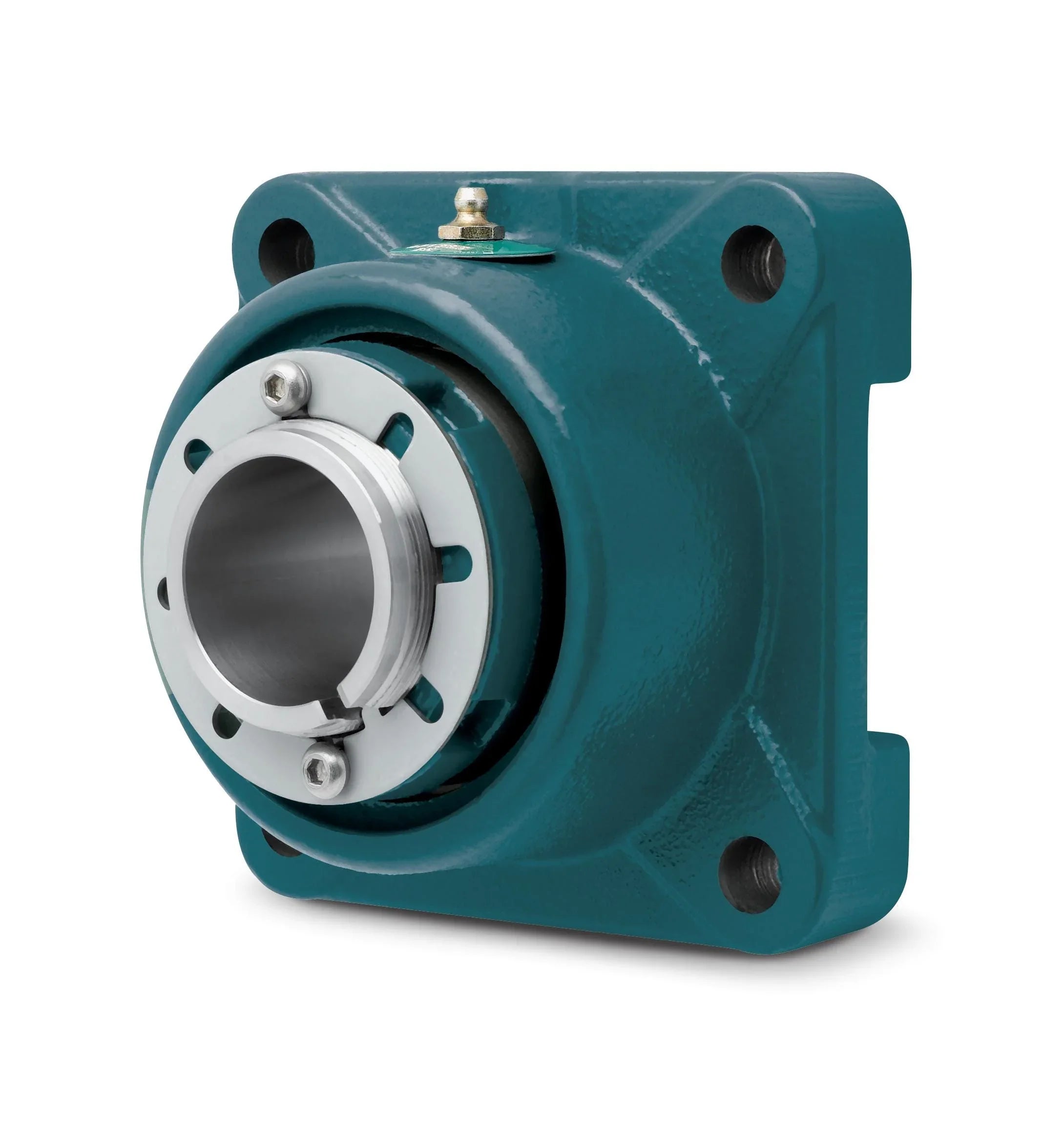

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071317 - Dodge - EF4B-IP-111RE
EF4B-IP-111RE
Technical Specifications
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Circle | 5.8300 |
| Bolt Circle (Unit) | INCH |
| Bolt Diameter | 0.5000 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 4.1300 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 4.1300 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 0.0000 |
| Bolt Width (Unit) | INCH |
| Bore Length | 2.8100 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/ef4b_ip_hci_asmtab.prj&varset={SS=1-11/16},{TYPE=E},{ST=Contact Seal},{A=2.81},{B=5.38},{C=3.64},{D=4.13},{DD=5.834},{F=1/2},{G=0.67},{H=1.19},{J=4.18},{L=3.00},{N=2.50},{P=0.83},{X=0.19},{Y=0.020},{Z=2.08}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 20800 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Flange (Square) |
| Insert Material | Steel |
| Insert Outer Diameter | 85.0000 |
| Insert Outer Diameter (Unit) | MILLIMETER |
| Lubrication | Grease |
| Maximum Speed | 3725 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Triple-Lip Contact |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 1.6875 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 22000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| HTS Code | 8483204080 |
| ECCN | ear99 |
