071271 - Dodge - EP4B-IP-500LE
Regular price
$4,876.08 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

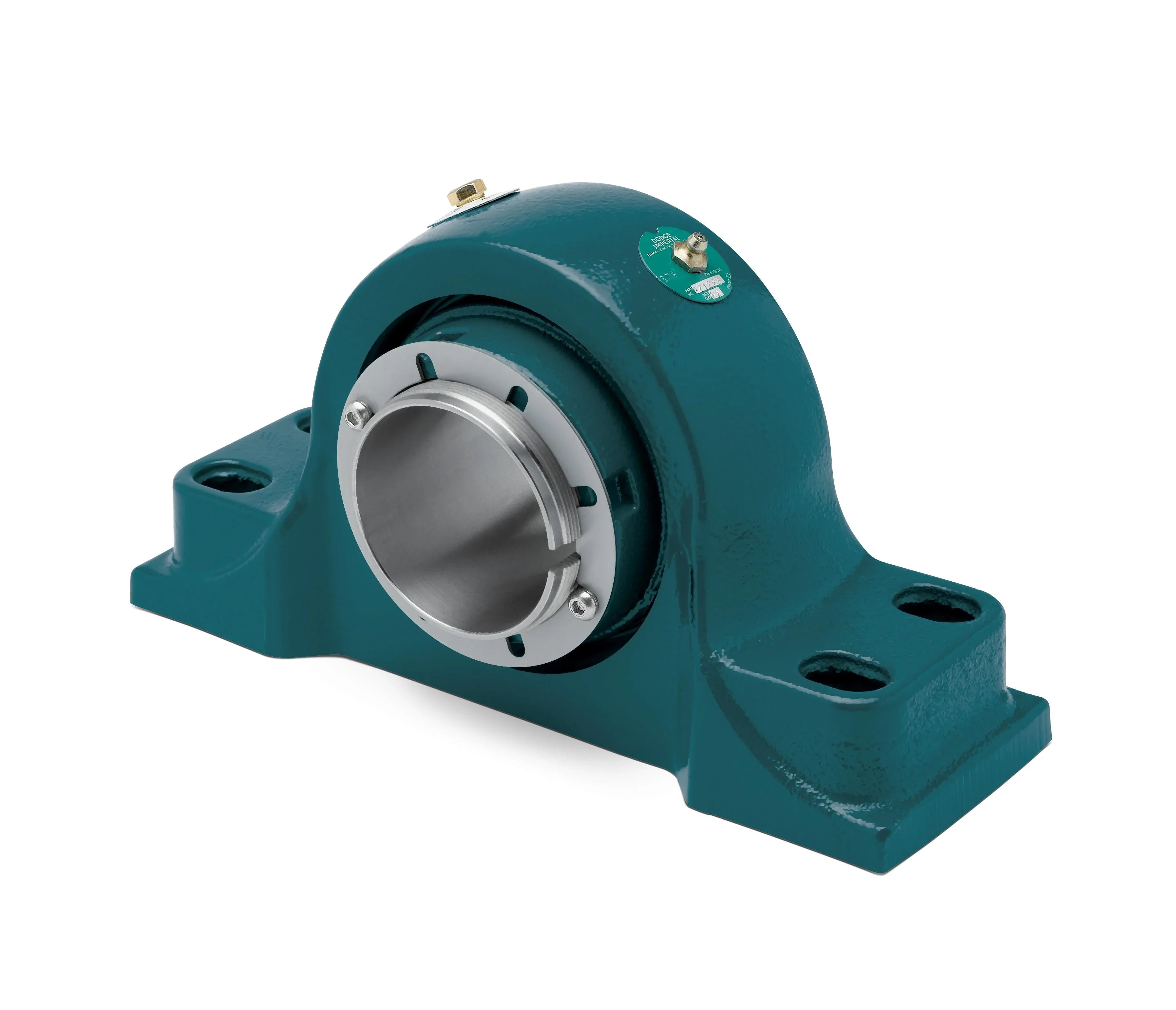

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071271 - Dodge - EP4B-IP-500LE
EP4B-IP-500LE
Technical Specifications
| Base to Center Height | 5.5000 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 15.7500 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 15.2500 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bolt Width | 2.8700 |
| Bolt Width (Unit) | INCH |
| Bore Length | 5.9800 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/ep4b_hi_ls_asmtab.prj&varset={SS=5},{TYPE=E},{ST=Labyrinth Seal},{A=6.023},{B=18.5},{C=5.13},{DMIN=15.25},{DMAX=15.75},{E=2.87},{F=7/8},{G=1.25},{H=3.00},{J=11.16},{L=7.63},{M=5.5},{R=1.93},{S=3.916},{X=0.38},{Y=0.036},{Z=5.84}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 146000 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Expansion (Float) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Four-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 1800 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 5.0000 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 196000 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | TS-500 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
