071180 - Dodge - EP2B-IP-304L
Regular price
$1,494.24 USD
Same day shipping available on in stock items if ordered before 4pm EST. Expedited shipping available for in stock items. Please e-mail Sales@MRO-PT.com for expedited shipping.

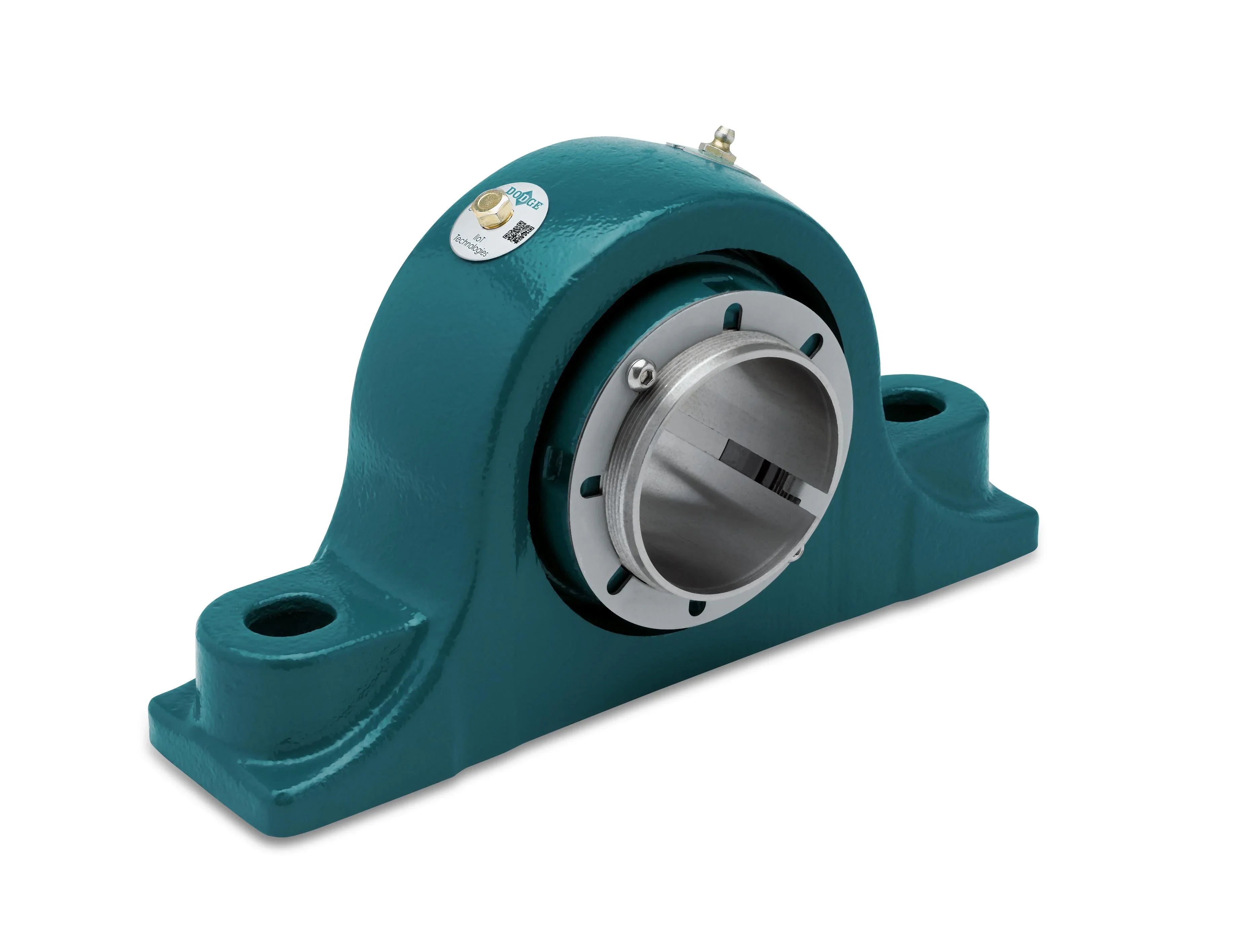

Image for Illustration purposes only. Actual product may vary.
For shipping to Alaska or Hawaii please contact us. Shipping to Canada is available upon request.
071180 - Dodge - EP2B-IP-304L
EP2B-IP-304L
Technical Specifications
| Base to Center Height | 3.7500 |
| Base to Center Height (Unit) | INCH |
| Bearing Component | Mounted Bearing |
| Bearing Type | Spherical Roller |
| Bolt Diameter | 0.8750 |
| Bolt Diameter (Unit) | INCH |
| Bolt to Bolt (Max) | 11.1900 |
| Bolt to Bolt (Max) (Unit) | INCH |
| Bolt to Bolt (Min) | 10.8100 |
| Bolt to Bolt (Min) (Unit) | INCH |
| Bore Length | 4.1700 |
| Bore Length (Unit) | INCH |
| CAD Link | https://dodge-embedded.partcommunity.com/3d-cad-models/?info=dodge/mounted_bearings/spherical_roller_bearings/push_pull_adapter_imperial/imperial_ip/ep2b_ip_l_asmtab.prj&varset={SS=3-1/4},{TYPE=N},{ST=Labyrinth Seal},{A=4.17},{B=14},{C=3.49},{DMIN=10.81},{DMAX=11.19},{F=7/8},{G=1.19},{H=2.25},{J=7.69},{L=5.00},{M=3.75},{R=1.51},{S=2.66},{X=0.25},{Y=0.025},{Z=4.05}&hidePortlets=searchHeader |
| Dynamic Load Capacity | 65500 |
| Dynamic Load Capacity (Unit) | POUND_FORCE |
| Expansion Capability | Non-Expansion (Fixed) |
| Grease Name | MobilGrease XHP222 |
| Housing Construction | Solid |
| Housing Dimensional Standard | Type E |
| Housing Material | Cast Iron |
| Housing Type | Two-Bolt Pillow Block |
| Insert Material | Steel |
| Lubrication | Grease |
| Maximum Speed | 2600 |
| Maximum Speed (Unit) | RPM |
| Seal Type | Labyrinth |
| Shaft Attachment | Push-Pull Adapter |
| Shaft Diameter | 3.2500 |
| Shaft Diameter (Unit) | INCH |
| Static Load Capacity | 81500 |
| Static Load Capacity (Unit) | POUND_FORCE |
| Take-Up Frame Size | HD-350,TS-400 |
| HTS Code | 8483208080 |
| ECCN | ear99 |
